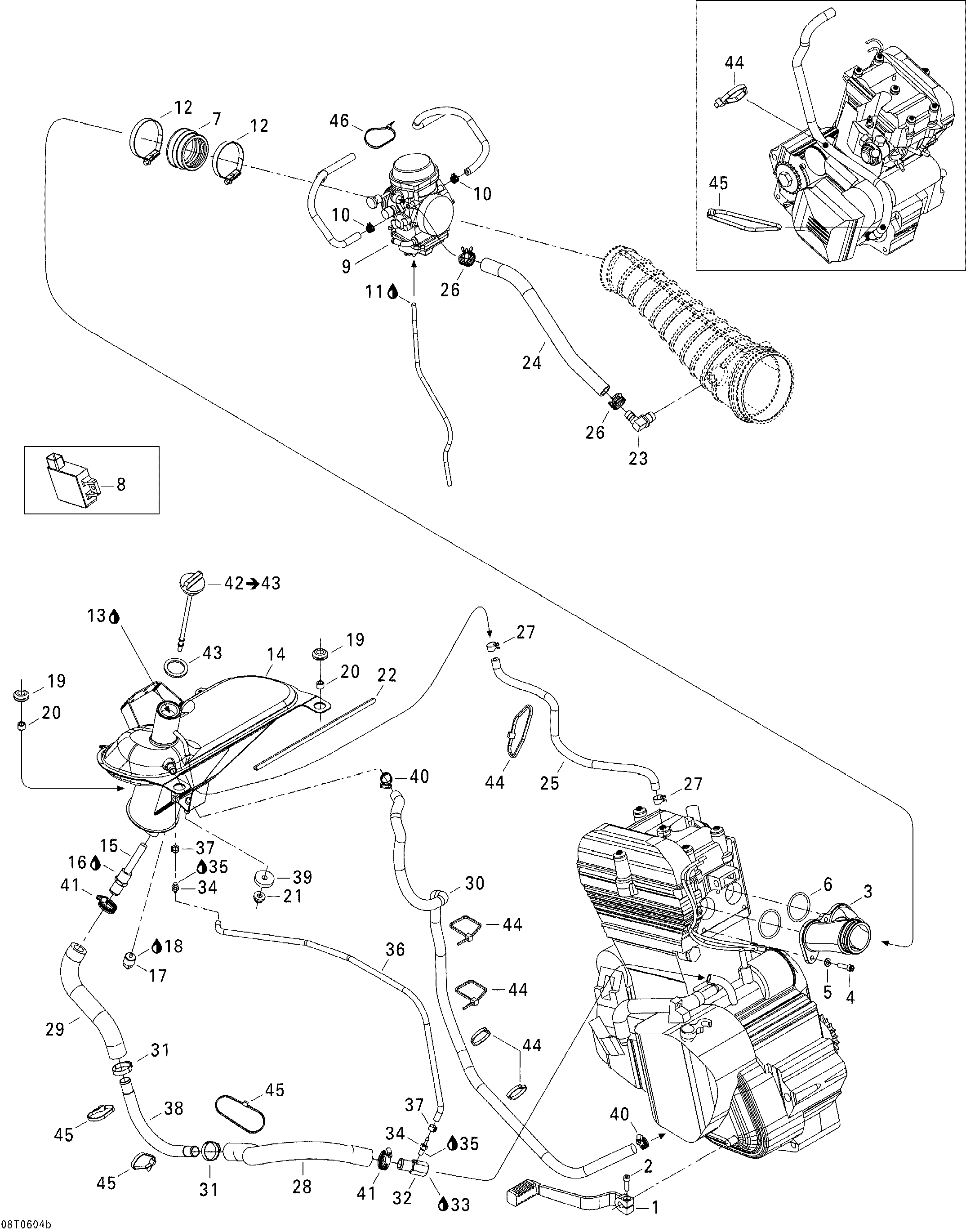

01- Engine 2 для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1420248317 Gearshift LeverGearshift Lever
-
2205062047 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
3420267230 Intake AdaptorIntake Adaptor
-
4205062544 Socket Screw M6 X 25Socket Screw M6 X 25
-
5234061410 Flat Washer 6 mmFlat Washer 6 mm
-
6293300059 O-RingO-Ring
-
7420267240 Carburator Flange 52 mmCarburator Flange 52 mm
-
8420664170 Amplifier BoxAmplifier Box
-
9707200142 Carburator Bsr42-4Carburator Bsr42-4
-
10414420700 Spring ClipSpring Clip
-
11413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
12293650090 Norma Gear ClampNorma Gear Clamp
-
14707000146 Oil TankOil Tank
-
15707000076 StrainerStrainer
-
16293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
17250000053 Magnetic CapMagnetic Cap
-
18293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
19293720062 GrommetGrommet
-
20707000058 SpacerSpacer
-
21233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
22414506600 TrimTrim
-
23414523600 Elbow FittingElbow Fitting
-
24414644800 Oil LineOil Line
-
25415079800 Hose 1/4''Hose 1/4''
-
26414655700 Spring ClipSpring Clip
-
27414415200 Universal Spring ClampUniversal Spring Clamp
-
28707000098 Hose 15.8 mm (Meter)Hose 15.8 mm (Meter)
-
29707000098 Hose 15.8 mm (Meter)Hose 15.8 mm (Meter)
-
30709000022 Hose 9.5 mm (Meter)Hose 9.5 mm (Meter)
-
31293650099 Oetiker ClampOetiker Clamp
-
32707000185 AdaptorAdaptor
-
33293800073 Loctite 277, 10 mlLoctite 277, 10 ml
-
34707000240 Hose AdaptorHose Adaptor
-
35293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
36707000243 Hose 3.5 mm (Meter)Hose 3.5 mm (Meter)
-
37293650120 Norma ClampNorma Clamp
-
38707000059 Intake TubeIntake Tube
-
39250200002 Rubber WasherRubber Washer
-
40293650171 Tridon Hose ClampTridon Hose Clamp
-
41293650124 Norma Gear ClampNorma Gear Clamp
-
42707000047 Oil Cap Ass'y. Includes 42 to 43Oil Cap Ass'y. Includes 42 to 43
-
43293250009 O-RingO-Ring
-
44414115200 Tie-rap 180 mmTie-rap 180 mm
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46293750002 Tie-Rap 130 mmTie-Rap 130 mm
