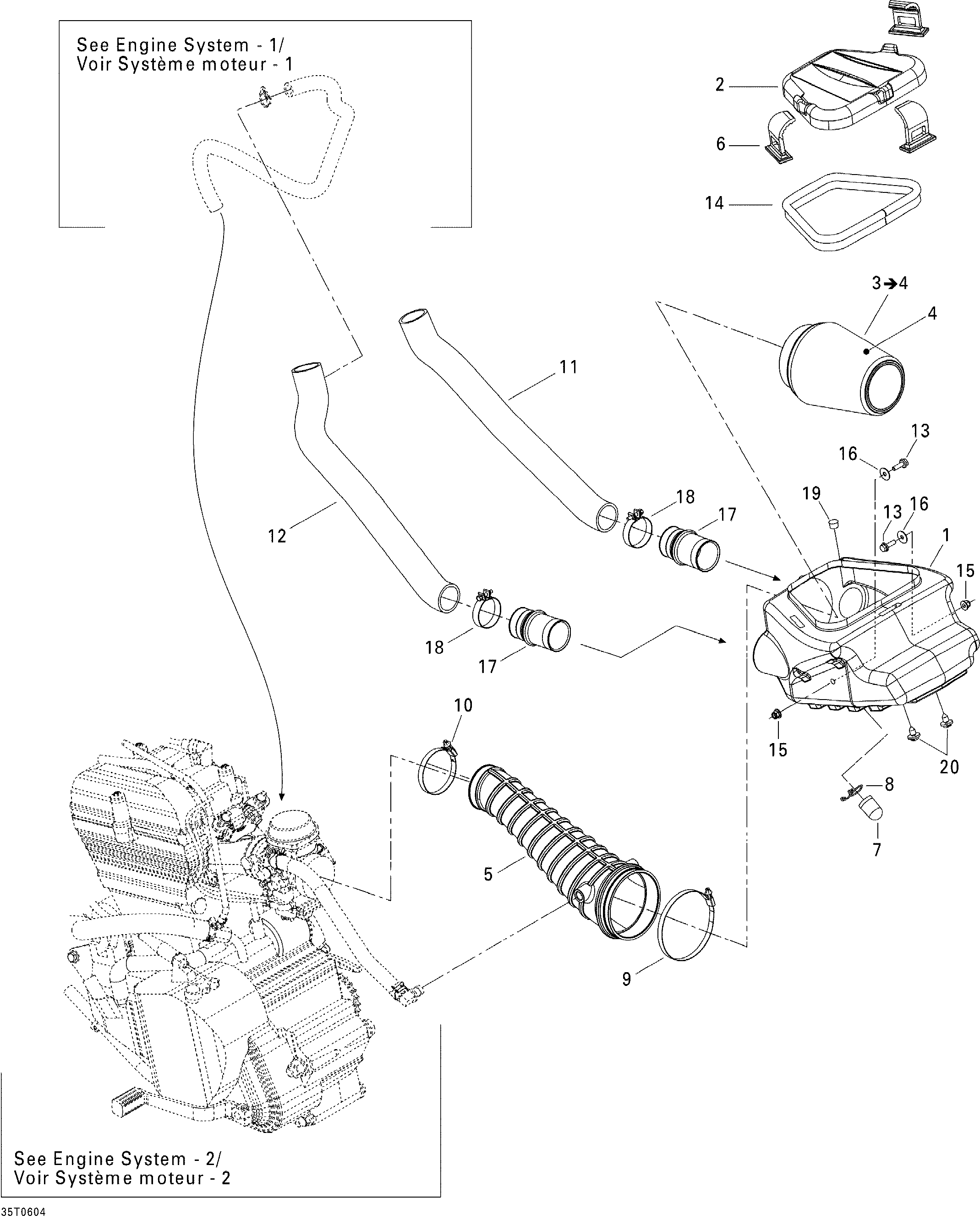

02- Air Intake Silencer для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1707800021 Air SilencerAir Silencer
-
2707800022 Air Silencer CoverAir Silencer Cover
-
3707800023 Air Filter. Includes 3 to 4Air Filter. Includes 3 to 4
-
4707800074 FoamFoam
-
5707800142 Intake AdaptorIntake Adaptor
-
6708200003 Cover LatchCover Latch
-
7707800080 Drain TubeDrain Tube
-
8707800081 Retainer ClipRetainer Clip
-
9514052983 Norma Gear ClampNorma Gear Clamp
-
10293650079 Norma ClampNorma Clamp
-
11707800093 Vent HoseVent Hose
-
12707800094 Vent HoseVent Hose
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14293250047 Neoprene SealNeoprene Seal
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16391302000 Flat WasherFlat Washer
-
17707800038 DeflectorDeflector
-
18293650160 Gemi ClampGemi Clamp
-
19572051500 CapCap
-
20293730018 Mount DartMount Dart
