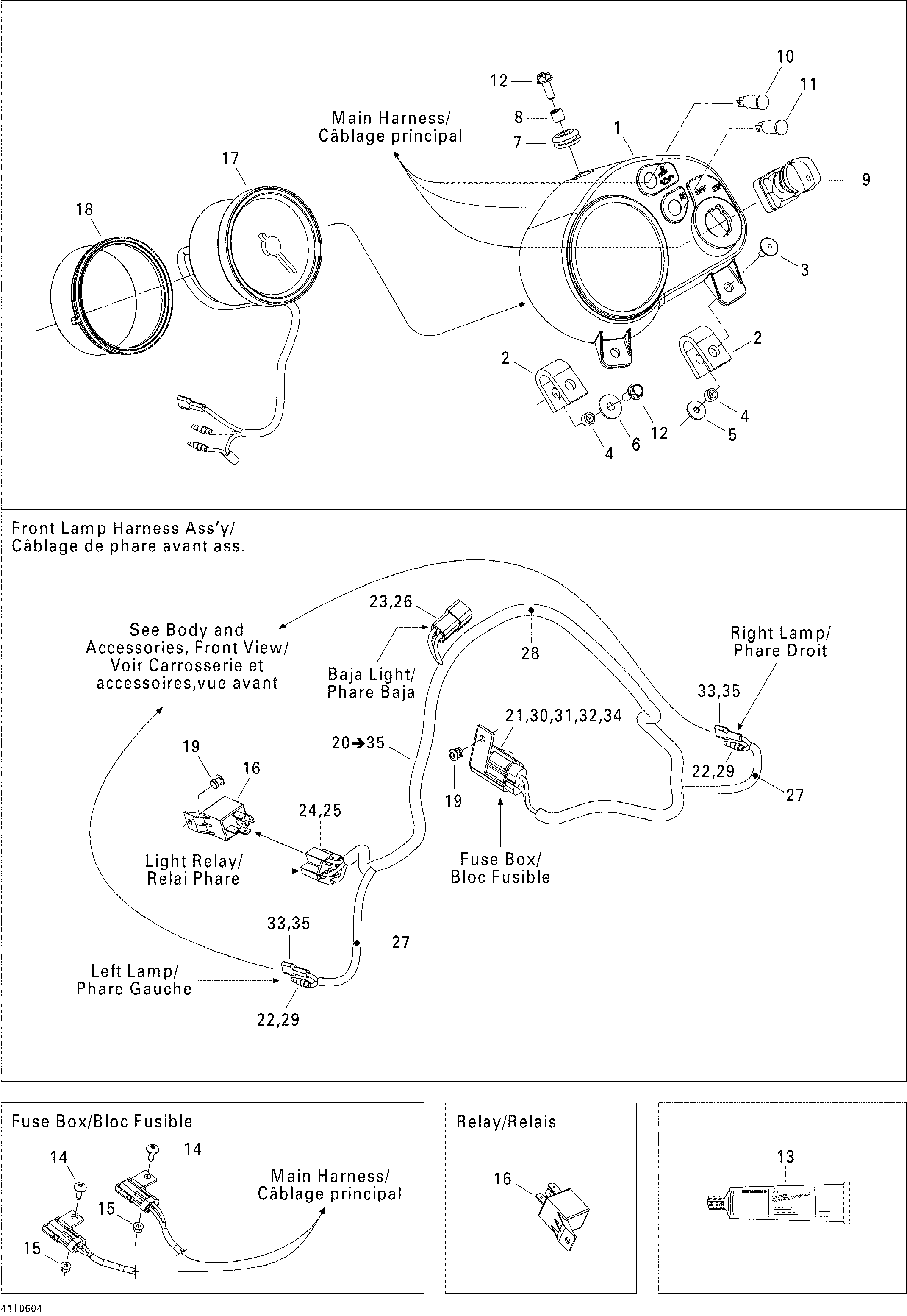

10- Electrical Accessories для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1710000250 DashboardDashboard
-
2710000505 HolderHolder
-
3390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293900029 BushingBushing
-
5517124300 WasherWasher
-
6224061201 Flat WasherFlat Washer
-
7293720053 GrommetGrommet
-
8293900045 BushingBushing
-
9710000075 Ignition SwitchIgnition Switch
-
10710000062 Pilot Lamp, RedPilot Lamp, Red
-
11710000240 Pilot Lamp, GreenPilot Lamp, Green
-
12210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
14732600030 ScrewScrew
-
15233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
16410113200 RelayRelay
-
17710000426 TachometerTachometer
-
18710000427 Gauge SupportGauge Support
-
19390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
20710000256 Front Lamp Harness Ass'y. Includes 20 to 35Front Lamp Harness Ass'y. Includes 20 to 35
-
21278000805 CushionCushion
-
22278000230 Male TerminalMale Terminal
-
23409210000 Male TerminalMale Terminal
-
24409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
25561503100 Female TerminalFemale Terminal
-
26409204200 Female HousingFemale Housing
-
27515175442 Tubing 6 mmTubing 6 mm
-
28409901700 Tubing 9 mmTubing 9 mm
-
29278001008 Insulated SheathInsulated Sheath
-
30278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
31278001326 Fuse Holder CapFuse Holder Cap
-
32278001325 Fuse HolderFuse Holder
-
33710000115 Rubber Envelope TerminalRubber Envelope Terminal
-
34710000113 Female TerminalFemale Terminal
-
35710000114 Female TerminalFemale Terminal
