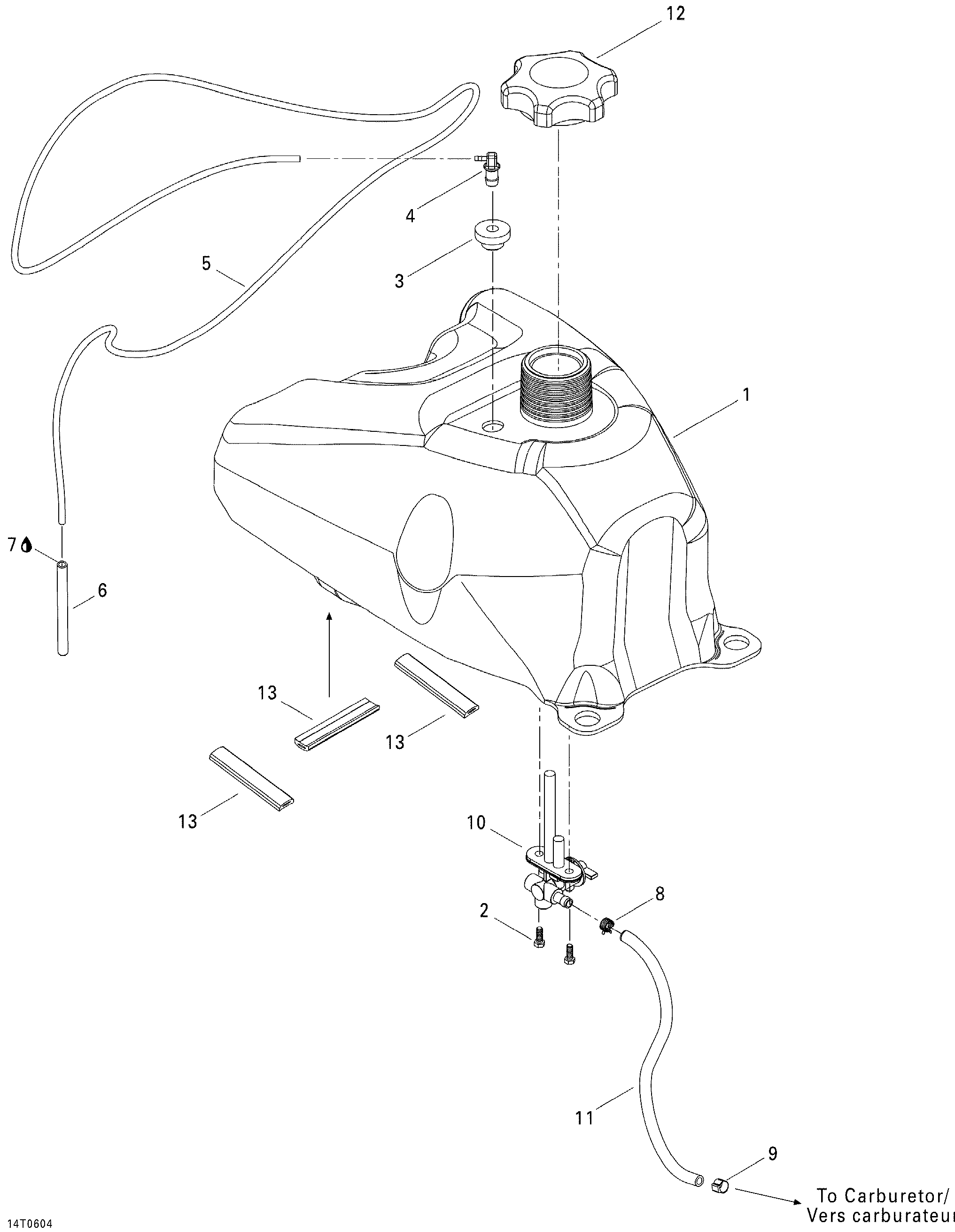

02- Fuel System для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1709000010 Fuel TankFuel Tank
-
2207151444 Hex Screw M5 X 14Hex Screw M5 X 14
-
3570045500 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 LineLine
-
6415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
7413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
8414655700 Spring ClipSpring Clip
-
9293650125 Oetiker ClampOetiker Clamp
-
10709000011 Fuel ValveFuel Valve
-
11513033022 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
12513033024 Fuel CapFuel Cap
-
13293200003 Seal (Meter)Seal (Meter)
