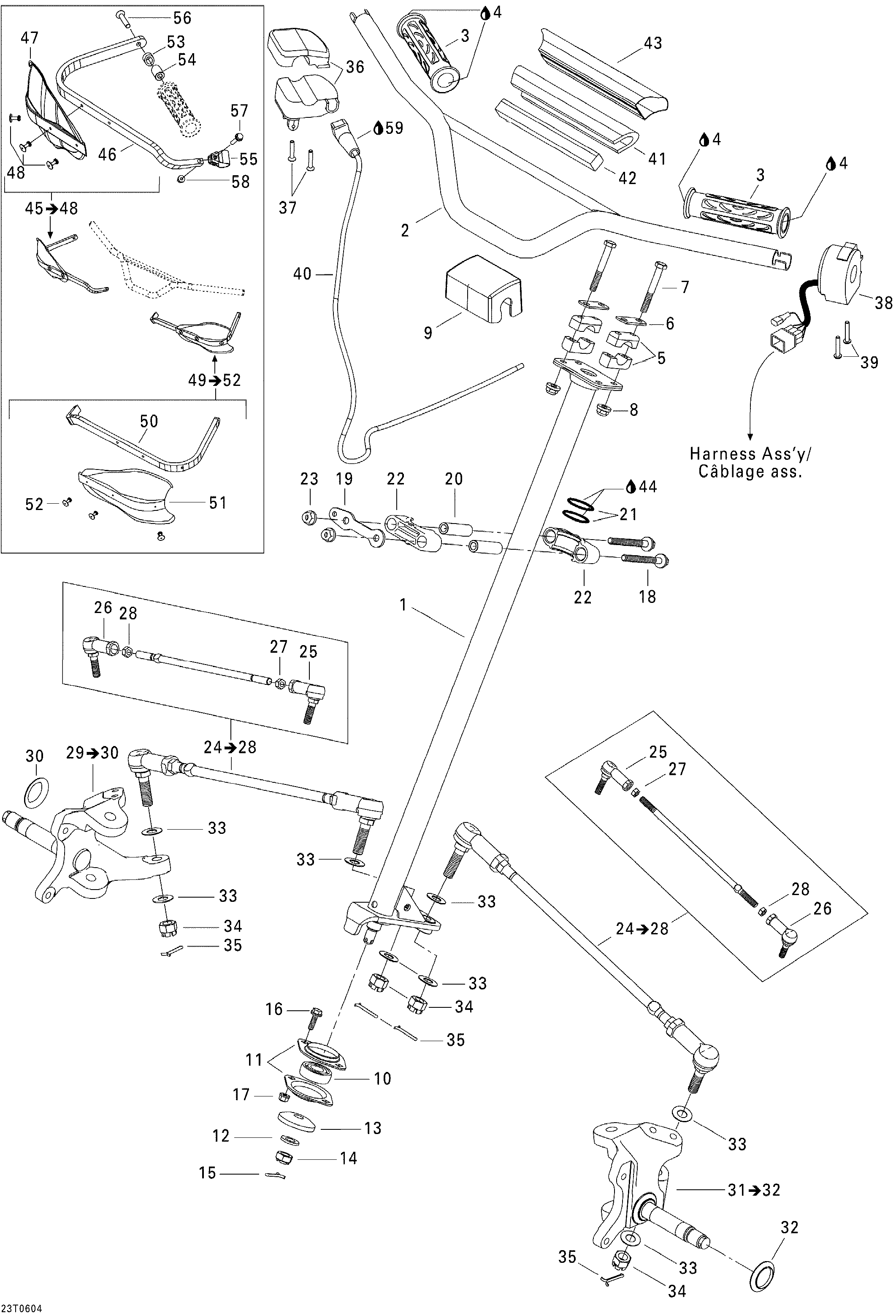

07- Steering System для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1709400222 Main TubeMain Tube
-
2709400218 Handle Bar (Black)Handle Bar (Black)
-
3709400157 Grip, BlackGrip, Black
-
4293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
5506151622 Steering SupportSteering Support
-
6506151196 ReinforcementReinforcement
-
7207086044 Hex Screw M8 X 60Hex Screw M8 X 60
-
8233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
9705000371 CoverCover
-
10709400224 Thrust BearingThrust Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250200017 WasherWasher
-
14232220413 Hex Castellated Nut M12Hex Castellated Nut M12
-
15211400017 Cotter PinCotter Pin
-
16207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18207687544 Hex Flanged Screw M8 X 75Hex Flanged Screw M8 X 75
-
19709400053 Stopper PlateStopper Plate
-
20709400072 BushingBushing
-
21293300068 O-RingO-Ring
-
22709400052 Half BushingHalf Bushing
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24709400240 Tie Rod Ass'y. Includes 24 to 28Tie Rod Ass'y. Includes 24 to 28
-
25709400241 RH Ball JointRH Ball Joint
-
26709400242 LH Ball JointLH Ball Joint
-
29709400208 RH Knuckle. Includes 29 to 30RH Knuckle. Includes 29 to 30
-
30705400056 Wear RingWear Ring
-
31709400210 LH Knuckle. Includes 31 to 32LH Knuckle. Includes 31 to 32
-
32705400056 Wear RingWear Ring
-
33706200281 Hard WasherHard Washer
-
34250100045 Nut M12Nut M12
-
35211400013 Cotter PinCotter Pin
-
36709400016 Throttle HandleThrottle Handle
-
37205353060 Screw M5 X 30Screw M5 X 30
-
38710000072 Multi Function SwitchMulti Function Switch
-
39205453046 Screw M5 X 30Screw M5 X 30
-
40709400048 Throttle CableThrottle Cable
-
41709400087 Steering Cover FoamSteering Cover Foam
-
42709400094 Foam InsertFoam Insert
-
43709400243 Steering CoverSteering Cover
-
44293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
45709400177 RH Protector Ass'y. Includes 45 to 48RH Protector Ass'y. Includes 45 to 48
-
46709400159 RH Handle ProtectorRH Handle Protector
-
47705000461 Protector PlateProtector Plate
-
48293150103 Pop RivetPop Rivet
-
49709400179 LH Protector Ass'y. Includes 49 to 52LH Protector Ass'y. Includes 49 to 52
-
50709400160 LH Handle ProtectorLH Handle Protector
-
51705000461 Protector PlateProtector Plate
-
52293150103 Pop RivetPop Rivet
-
53709400161 BracketBracket
-
54709400162 BracketBracket
-
55709400174 Handle BracketHandle Bracket
-
56205384044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
57207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
58233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
59293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
