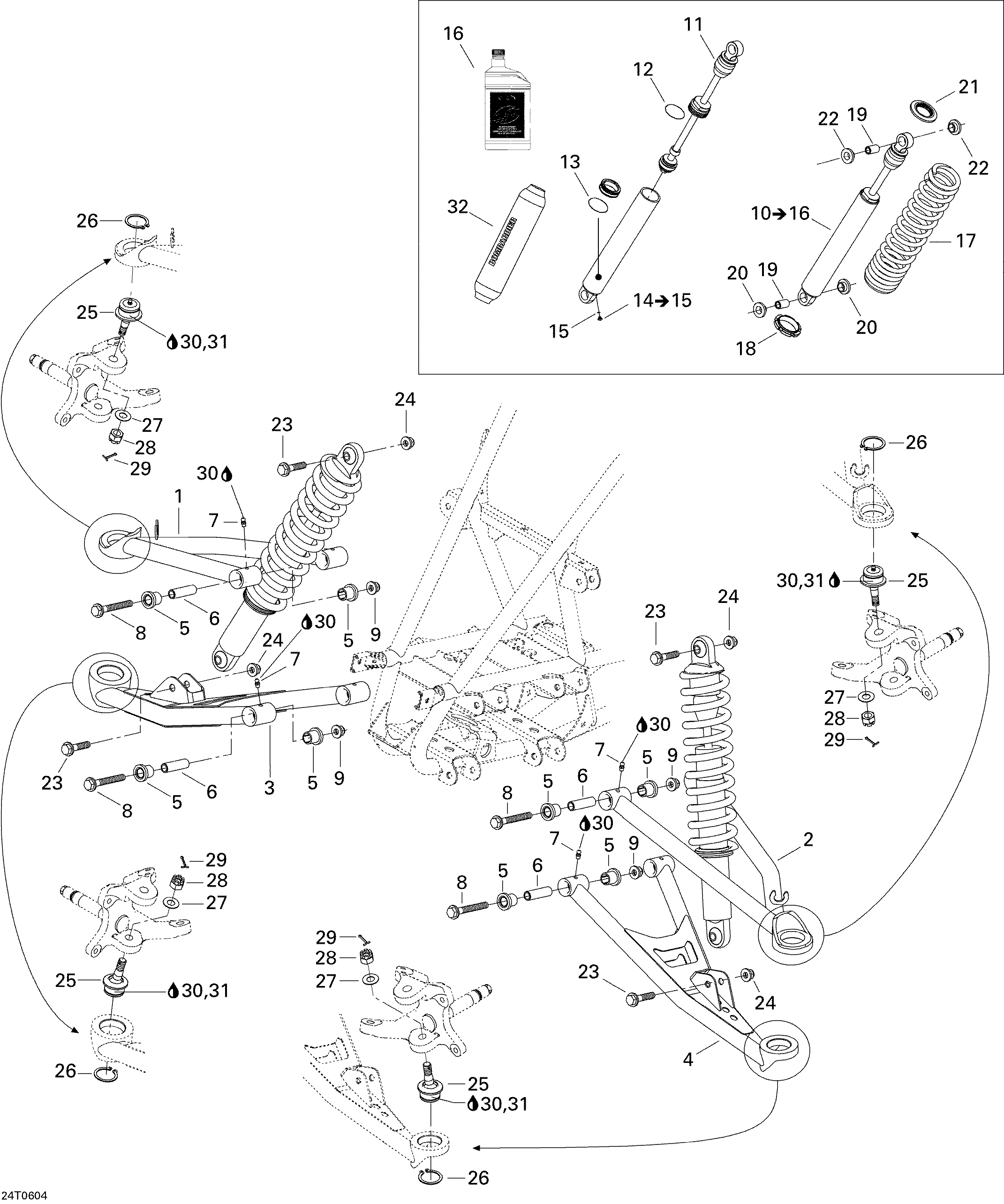

07- Front Suspension для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1706200382 RH Upper ArmRH Upper Arm
-
2706200381 LH Upper ArmLH Upper Arm
-
3706200376 RH Lower ArmRH Lower Arm
-
4706200374 LH Lower ArmLH Lower Arm
-
5706200063 CushionCushion
-
6706200061 Internal BushingInternal Bushing
-
7408200700 Grease FittingGrease Fitting
-
8207607546 Hex Flanged Screw M10 X 75Hex Flanged Screw M10 X 75
-
9233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
10706200347 Front Shock. Includes 10 to 16Front Shock. Includes 10 to 16
-
11706200391 Piston Ass'yPiston Ass'y
-
12706200392 O-RingO-Ring
-
13706200393 O-RingO-Ring
-
14706200413 Pressure Valve Ass'y. Includes 14 to 15Pressure Valve Ass'y. Includes 14 to 15
-
16503190103 Oil ShockOil Shock
-
17706200348 SpringSpring
-
18706200349 Spring SeatSpring Seat
-
19706200097 BushingBushing
-
20706200099 CushionCushion
-
21706200351 Spring RetainerSpring Retainer
-
22706200412 BushingBushing
-
23207605044 Hex Flanged Screw M10 X 50Hex Flanged Screw M10 X 50
-
24233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
25703500082 Ball JointBall Joint
-
26293370017 CirclipCirclip
-
27706200281 Hard WasherHard Washer
-
28232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
29211400017 Cotter PinCotter Pin
-
30293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
31413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
32706200276 ProtectorProtector
