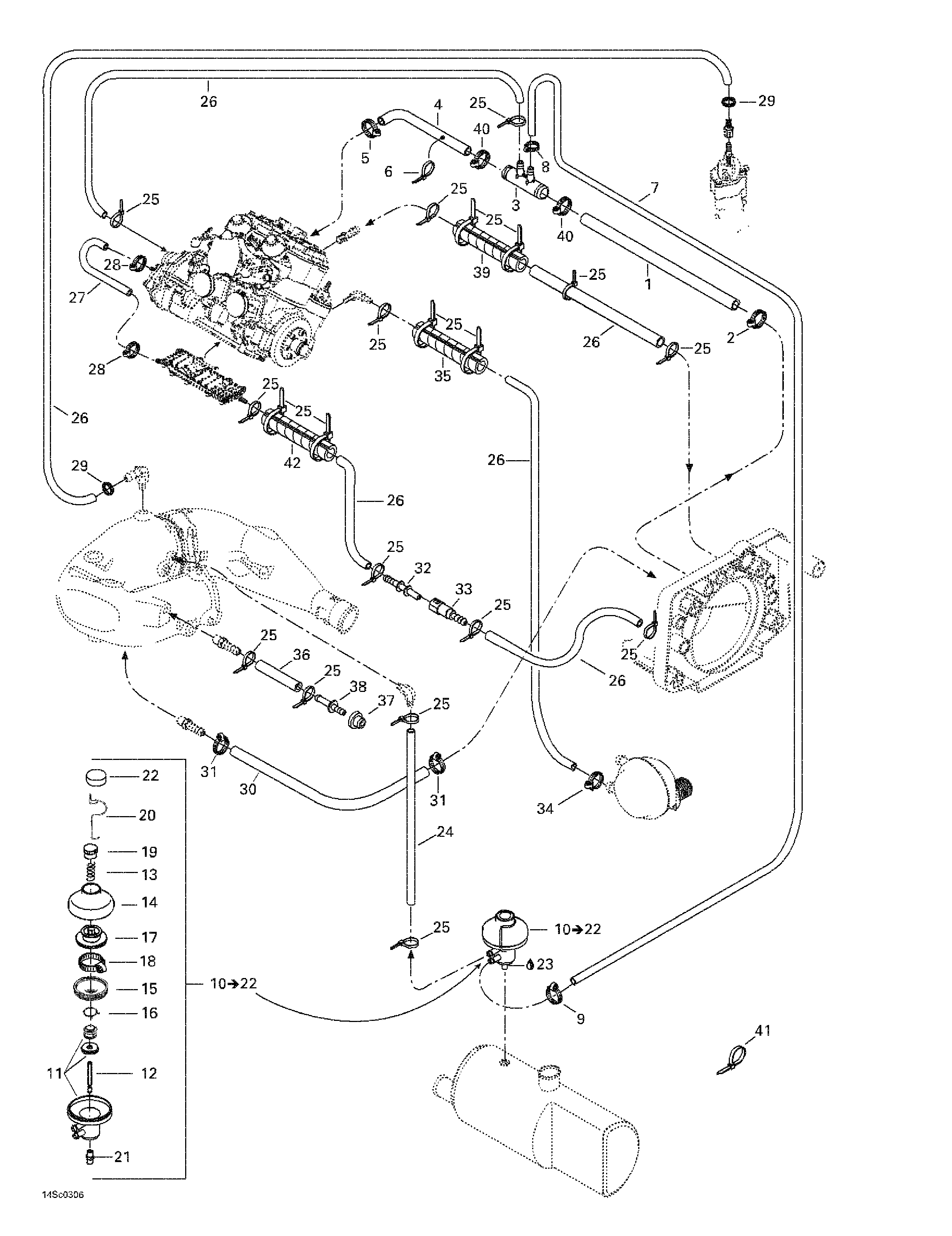

01- Cooling System для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1276000099 Hose 19 mmHose 19 mm
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3293710102 Double fittingDouble fitting
-
4276000119 HoseHose
-
5293650019 Tridon clampTridon clamp
-
6293750002 Tie-rap 130 mmTie-rap 130 mm
-
7275500548 Hose 5/16''Hose 5/16''
-
8293650053 Crimp ClampCrimp Clamp
-
9293650129 Tridon clampTridon clamp
-
10274001067 Pressure regulator. Includes 10 - 22.Pressure regulator. Includes 10 - 22.
-
12274000423 Feeding rodFeeding rod
-
13274000612 Spring 50 mmSpring 50 mm
-
14420911552 Valve coverValve cover
-
15420260721 BellowBellow
-
16420838190 ClampClamp
-
18293650065 Rivalair ClampRivalair Clamp
-
19420241221 Adjuster screwAdjuster screw
-
20290838083 Spring clipSpring clip
-
21293700010 Male connectorMale connector
-
22274000903 Cover screwCover screw
-
23293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
24276000048 Hose 6 mmHose 6 mm
-
25293750001 Tie-rap 94 mmTie-rap 94 mm
-
26275000007 Hose 8 mmHose 8 mm
-
27275500567 HoseHose
-
28293650129 Tridon clampTridon clamp
-
29293650042 Oetiker clampOetiker clamp
-
30276000001 Hose 12.5 mmHose 12.5 mm
-
31293650130 Tridon clampTridon clamp
-
32275500435 Quick male fittingQuick male fitting
-
33275500436 Quick female fittingQuick female fitting
-
34293650128 Tridon clampTridon clamp
-
35415079900 Tubing 10 mmTubing 10 mm
-
36276000048 Hose 6 mmHose 6 mm
-
37293720029 GrommetGrommet
-
38293710039 Straight fittingStraight fitting
-
39415079900 Tubing 10 mmTubing 10 mm
-
40293650165 Oetiker clampOetiker clamp
-
41293750008 Tie-rap 350 mmTie-rap 350 mm
-
42415079900 Tubing 10 mmTubing 10 mm
