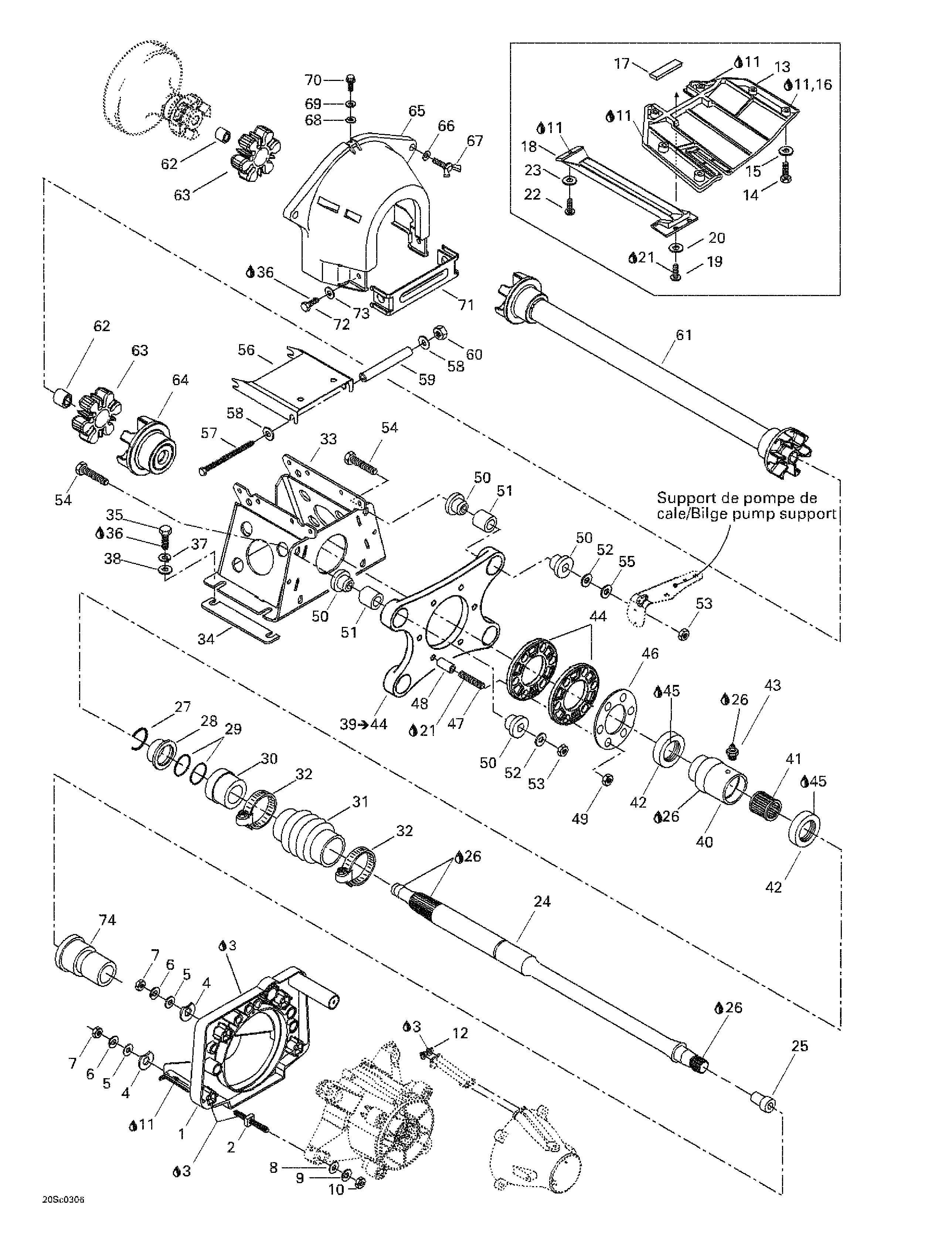

05- Propulsion для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1271001397 Pump supportPump support
-
2250300010 Square studSquare stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 ShimShim
-
5234001600 Flat washer M10Flat washer M10
-
234002600 Flat washer M10Flat washer M10
-
6234101601 Helical lock washer M10Helical lock washer M10
-
7232001600 Hex nut M10Hex nut M10
-
8234002600 Flat washer M10Flat washer M10
-
9234101601 Helical lock washer M10Helical lock washer M10
-
10232001600 Hex nut M10Hex nut M10
-
11293800066 Sealant, loctite 5900, 300 mlSealant, loctite 5900, 300 ml
-
12293250084 O-ringO-ring
-
13271001229 Riding plateRiding plate
-
14207383060 Hex screw M8 x 30 (scotch grip)Hex screw M8 x 30 (scotch grip)
-
15234081600 Flat washer M8Flat washer M8
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17293200003 GasketGasket
-
18271000763 Pump gratePump grate
-
19207161660 Hex screw M6 x 16Hex screw M6 x 16
-
20234061600 Flat washer m6Flat washer m6
-
21293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
22207383060 Hex screw M8 x 30 (scotch grip)Hex screw M8 x 30 (scotch grip)
-
23234081600 Flat washer M8Flat washer M8
-
24272000150 Drive shaftDrive shaft
-
25272000019 Drive shaft plugDrive shaft plug
-
26293550010 Synthetic grease, 400gSynthetic grease, 400g
-
27272000135 ''C'' clip''C'' clip
-
28272000064 Support ringSupport ring
-
29293300032 O-ringO-ring
-
30272000770 Carbon ringCarbon ring
-
31272000184 BellowBellow
-
32293650075 Norma clampNorma clamp
-
33272000136 Shaft supportShaft support
-
34272000166 ShimShim
-
35207183060 Hex screw M8 x 30Hex screw M8 x 30
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37234181601 Helical lock washer M8Helical lock washer M8
-
38234081600 Flat washer M8Flat washer M8
-
39272000048190 Damping support. Includes 39 - 44.Damping support. Includes 39 - 44.
-
40272000012400 Joint supportJoint support
-
41293350007 Needle bearingNeedle bearing
-
42293200012 Double lip sealDouble lip seal
-
43293550008 Grease fittingGrease fitting
-
44272000049190 Alignement washerAlignement washer
-
45293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
46272000051 Fixation washerFixation washer
-
47211300016 Stud M6 x 30Stud M6 x 30
-
48271001319 SpacerSpacer
-
49293880010 Hex elastic nut M6Hex elastic nut M6
-
50293830031 Rubber bushingRubber bushing
-
51274000114 BushingBushing
-
52234081600 Flat washer M8Flat washer M8
-
53232581600 Hex elastic nut M8Hex elastic nut M8
-
54207084560 Hex screw M8 x 45Hex screw M8 x 45
-
55234082600 Flat washer M8Flat washer M8
-
56272000139 Shaft guardShaft guard
-
57230062060 Hex screw M6 x 120Hex screw M6 x 120
-
58234062600 Flat washer M6Flat washer M6
-
59291000757 SpacerSpacer
-
60232561600 Hex elastic nut M6Hex elastic nut M6
-
61272000154 Transmission shaft ass'yTransmission shaft ass'y
-
62293900016 Snap bushingSnap bushing
-
63293830067 Rubber adaptorRubber adaptor
-
64272000158 Coupler ass'yCoupler ass'y
-
65272000130 Flywheel guardFlywheel guard
-
66234082600 Flat washer M8Flat washer M8
-
67207982510 Wing screw M8 x 25Wing screw M8 x 25
-
68234051600 Flat washer M5Flat washer M5
-
69234151601 Helical lock washer M5Helical lock washer M5
-
70243041660 Hex plastite screw M4.8 x 16Hex plastite screw M4.8 x 16
-
71291001228 Front lower guardFront lower guard
-
72207161660 Hex screw M6 x 16Hex screw M6 x 16
-
73234062600 Flat washer M6Flat washer M6
-
74292000075 Thru hullThru hull
