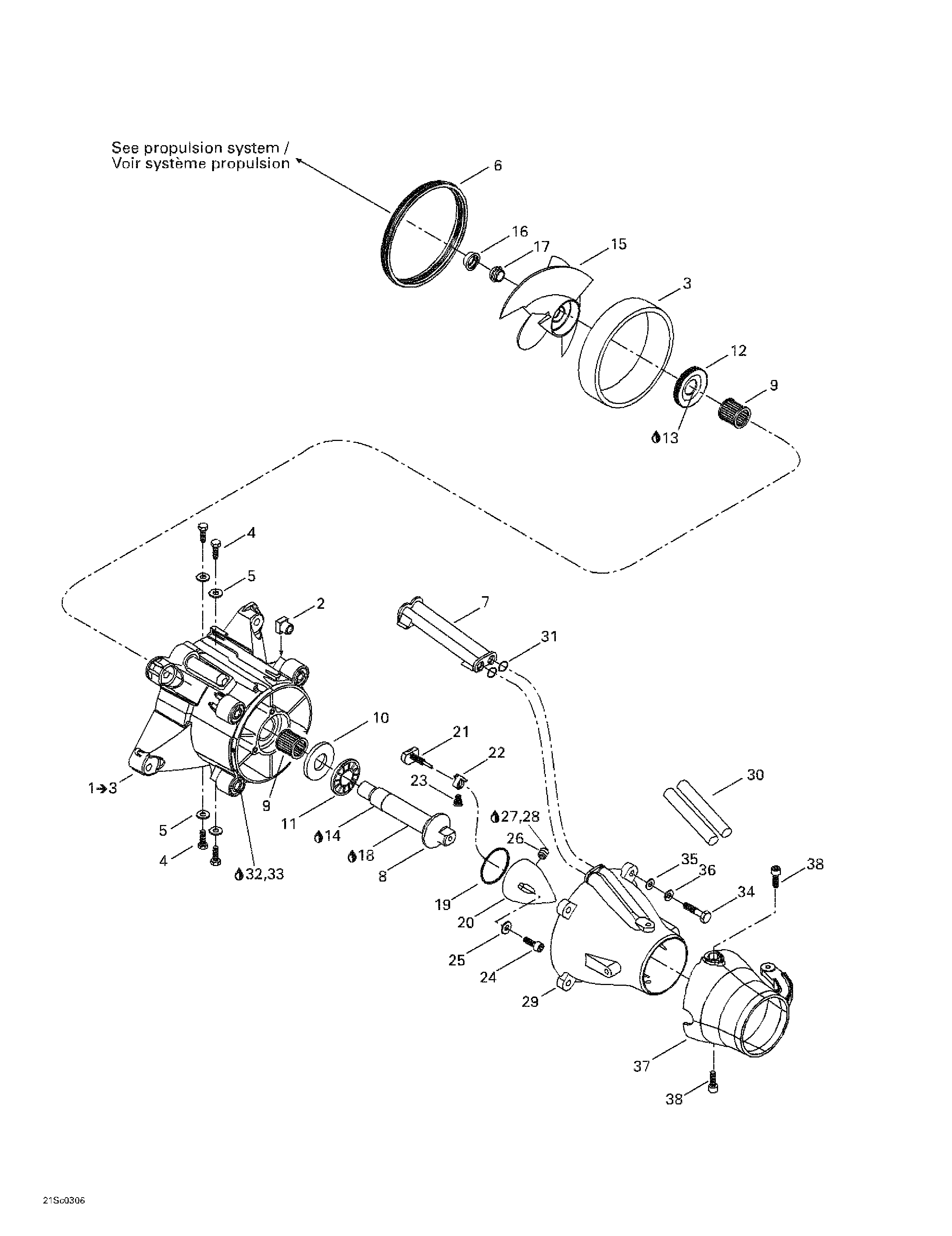

05- Pump System для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1271001381 Housing ass'y. Includes 1 - 3.Housing ass'y. Includes 1 - 3.
-
2211100033 Square nut M8Square nut M8
-
3271000653 Wear ringWear ring
-
4250000040 Hex plastite screw #10 x 3/8''Hex plastite screw #10 x 3/8''
-
5234051600 Flat washer M5Flat washer M5
-
6293200087 Neoprene sealNeoprene seal
-
7271000785 Water outletWater outlet
-
8271000965 Impeller shaftImpeller shaft
-
9293350017 Needle bearingNeedle bearing
-
10293350020 Thrust washerThrust washer
-
11293350022 Thrust-bearingThrust-bearing
-
12293200065 Oil sealOil seal
-
13293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
14293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
15271000920 Impeller ass'yImpeller ass'y
-
16271000516 Impeller bootImpeller boot
-
17271000517 Impeller ringImpeller ring
-
18293600011 Redline pump oil, 75W90, 12 x 6 ozRedline pump oil, 75W90, 12 x 6 oz
-
19293300011 O-ringO-ring
-
20271001250 Impeller coverImpeller cover
-
21271001124 Pusher ass'yPusher ass'y
-
22271001107 SliderSlider
-
23271001108 SpringSpring
-
24205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
25234061600 Flat washer M6Flat washer M6
-
26211500001 Pipe plug socket head 1/8-27 npt. .Pipe plug socket head 1/8-27 npt. .
-
27293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
28293800041 Loctite - primer NLoctite - primer N
-
29271001004 VenturiVenturi
-
30271001133 Siphon tubeSiphon tube
-
31293300013 O-ringO-ring
-
32293800041 Loctite - primer NLoctite - primer N
-
33293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
34207285060 Hex screw M8 x 50 (scotch grip)Hex screw M8 x 50 (scotch grip)
-
35234081600 Flat washer M8Flat washer M8
-
36234181601 Helical lock washer M8Helical lock washer M8
-
37271000806 NozzleNozzle
-
38211000127 Socket screw M8 x 10 (scotch grip)Socket screw M8 x 10 (scotch grip)
