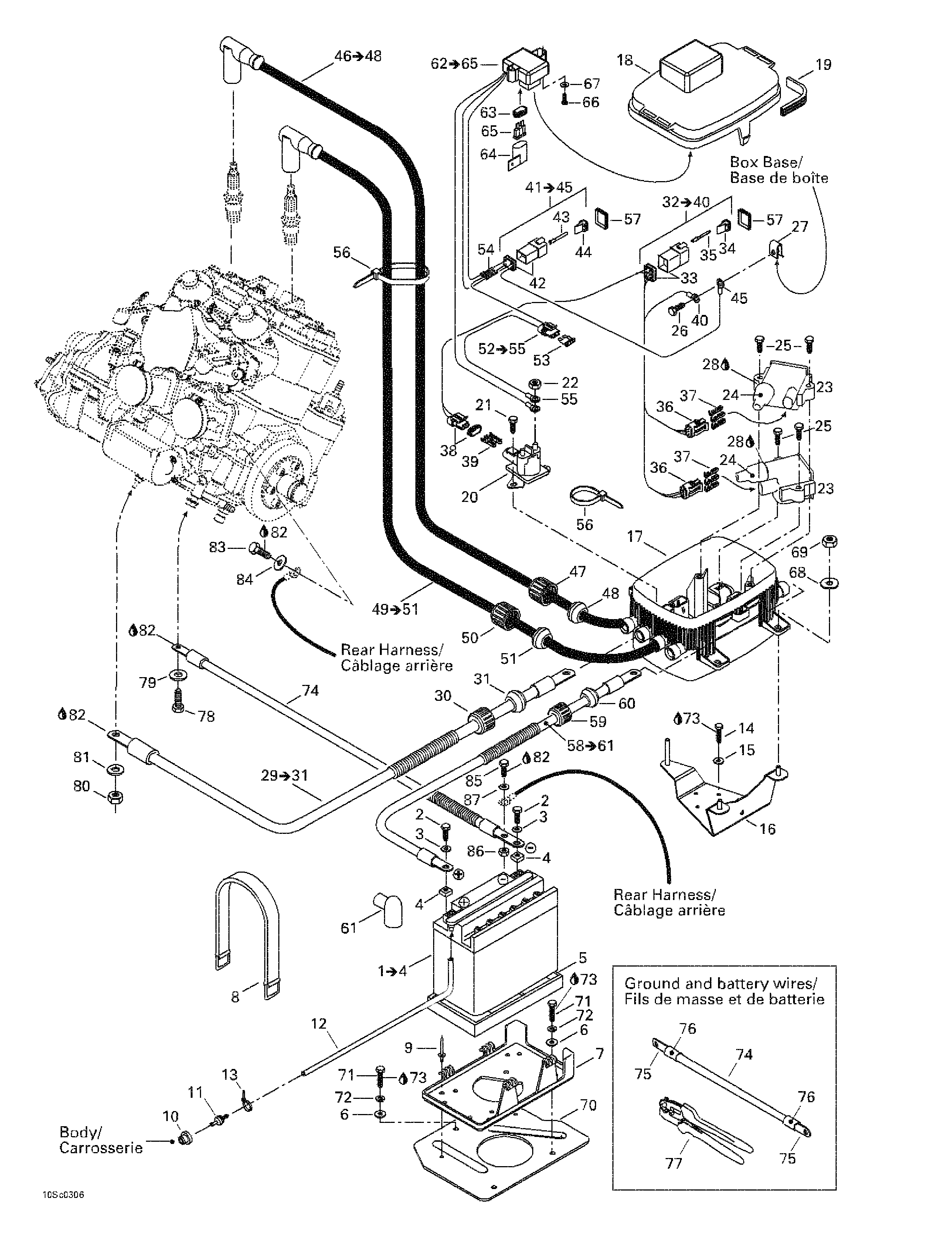

10- Electrical Box And Battery для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1278001756 Battery. Includes 1 - 4.Battery. Includes 1 - 4.
-
2211000045 Battery screwBattery screw
-
3211200018 Flat washer M6Flat washer M6
-
4211100022 Battery nut M6Battery nut M6
-
5278001746 Lower battery padLower battery pad
-
6234052600 Flat washer M5Flat washer M5
-
7278001430 Battery supportBattery support
-
8293850021 Rubber strapRubber strap
-
9293150037 Avdel rivet 3/16''Avdel rivet 3/16''
-
10293720029 GrommetGrommet
-
11275500499 Check valveCheck valve
-
12275500446 Hose 6 mmHose 6 mm
-
13293750001 Tie-rap 94 mmTie-rap 94 mm
-
14243042060 Hex plastite screw M4,8 x 20Hex plastite screw M4,8 x 20
-
15234052600 Flat washer M5Flat washer M5
-
16278001897 Electric box supportElectric box support
-
17278001761 Electric box baseElectric box base
-
18278001785 Box coverBox cover
-
19278001173 GasketGasket
-
20278001802 Starter relayStarter relay
-
21210261040 Hex flanged forming screw M6 x 10Hex flanged forming screw M6 x 10
-
22232561600 Hex elastic nut M6Hex elastic nut M6
-
23278001451 Ignition coilIgnition coil
-
24278001470 Protector capProtector cap
-
25209463840 Pan head thread cut screw 6.3 x 38Pan head thread cut screw 6.3 x 38
-
26207361660 Hex screw M6 x 16 (scotch grip)Hex screw M6 x 16 (scotch grip)
-
27250100029 ''U'' type nut M6''U'' type nut M6
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29278001893 Starter Positive cable, red. Includes 29 - 31.Starter Positive cable, red. Includes 29 - 31.
-
30278000100 Electric wire capElectric wire cap
-
31278000098 GrommetGrommet
-
32278001458 Box harness. Includes 32 - 40.Box harness. Includes 32 - 40.
-
33270000137 Female housing (6 circuits)Female housing (6 circuits)
-
34278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
35278000631 Male terminalMale terminal
-
36278001467 Male housing (3 circuits)Male housing (3 circuits)
-
37278001468 Female terminalFemale terminal
-
38278001113 Male housing (2 circuits)Male housing (2 circuits)
-
39278001114 Female terminalFemale terminal
-
40278001392 Open barrelOpen barrel
-
41278001885 Electric box harness. Includes 41 - 45.Electric box harness. Includes 41 - 45.
-
42278001477 Female connector (4 circuits)Female connector (4 circuits)
-
43515175261 Male terminalMale terminal
-
44278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
46278001454 Coil cable (735 mm). Includes 46 - 48.Coil cable (735 mm). Includes 46 - 48.
-
47278000100 Electrique wire capElectrique wire cap
-
48278000682 GrommetGrommet
-
49278001521 Coil cable (560 mm). Includes 49 - 51.Coil cable (560 mm). Includes 49 - 51.
-
50278000100 Electrique wire capElectrique wire cap
-
51278000682 GrommetGrommet
-
52278001884 Fuse harness (3 amperes). Includes 52 - 55.Fuse harness (3 amperes). Includes 52 - 55.
-
53278001196 Fuse 3 amperesFuse 3 amperes
-
54515175261 Male terminalMale terminal
-
55278000300 Ring terminalRing terminal
-
56293750002 Tie-rap 130 mmTie-rap 130 mm
-
57293200055 GasketGasket
-
58278001886 Battery Positive cable, Red. Includes 58 - 61.Battery Positive cable, Red. Includes 58 - 61.
-
59278000100 Electrique wire capElectrique wire cap
-
60278000098 GrommetGrommet
-
61278000020 Battery wire capBattery wire cap
-
62278001784 Cut-off relay. Includes 62 - 65.Cut-off relay. Includes 62 - 65.
-
63278000805 CushionCushion
-
65410917200 Fuse 30 amperesFuse 30 amperes
-
66243041660 Hex plastite screw M4.8 x 16Hex plastite screw M4.8 x 16
-
67234051600 Flat washer M5Flat washer M5
-
68234062600 Flat washer M6Flat washer M6
-
69232561600 Hex elastic nut M6Hex elastic nut M6
-
70292000614 Support plateSupport plate
-
71211000023 Hex flanged plastite screw #10 x 7/8''Hex flanged plastite screw #10 x 7/8''
-
72234151601 Helical lock washer M5Helical lock washer M5
-
73293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
74278001877 Ground cable, BlackGround cable, Black
-
78207302060 Hex screw M10 x 20 (scotch grip)Hex screw M10 x 20 (scotch grip)
-
79234001600 Flat washer M10Flat washer M10
-
80232561600 Hex elastic nut M6Hex elastic nut M6
-
81234061600 Flat washer M6Flat washer M6
-
82293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
83207361260 Hex screw M6 x 12 (scotch grip)Hex screw M6 x 12 (scotch grip)
-
84234061600 Flat washer M6Flat washer M6
-
85207161260 Hex screw M6 x 12Hex screw M6 x 12
-
86232561600 Hex elastic nut M6Hex elastic nut M6
-
87234061600 Flat washer M6Flat washer M6
