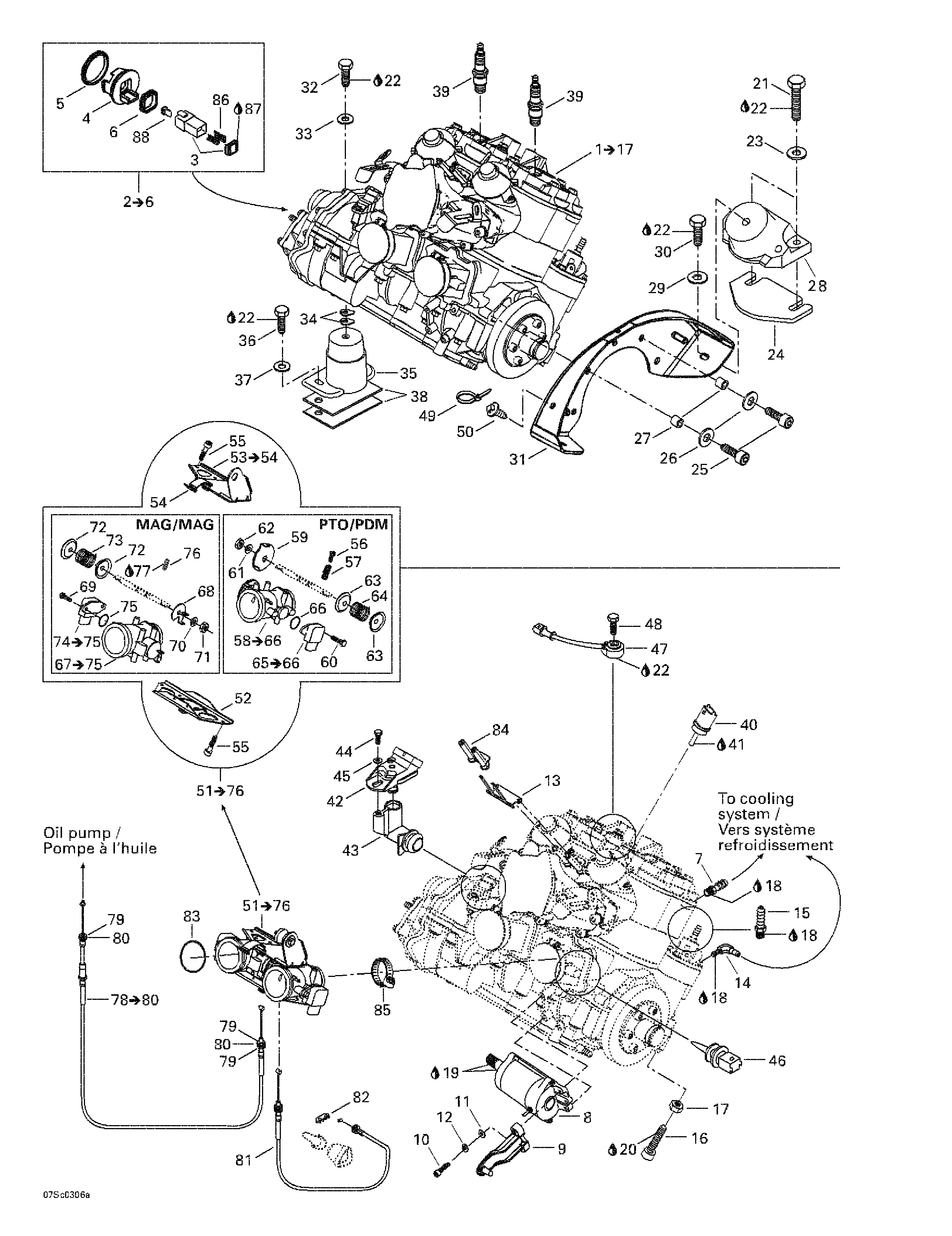

01- Engine Support для BRP XP DI, 6130/6131 - 2003

-
№АртикулНазвание
-
1270000573 Rotax engine 947-DI. Includes 1 - 17.Rotax engine 947-DI. Includes 1 - 17.
-
2707000031 Adaptor ass'y. Includes 2 - 6.Adaptor ass'y. Includes 2 - 6.
-
3270000137 Female housing (6 circuits)Female housing (6 circuits)
-
4270000138 AdaptorAdaptor
-
5293300033 GasketGasket
-
6293200055 GasketGasket
-
7293710066 M?le connectorM?le connector
-
8278000987 Starter ass'yStarter ass'y
-
9273000123 Silencer supportSilencer support
-
10205063560 Socket screw M6 x 35Socket screw M6 x 35
-
11234061600 Flat washer M6Flat washer M6
-
12234161601 Helical lock washer M6Helical lock washer M6
-
13278001662 Ground plateGround plate
-
14293700016 Elbow fitting 90 DegElbow fitting 90 Deg
-
15293710082 Straight fittingStraight fitting
-
16205003060 Socket screw M10 x 30Socket screw M10 x 30
-
17232001600 Hex nut M10Hex nut M10
-
18293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
19293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
20293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
21207184060 Hex screw M8 x 40Hex screw M8 x 40
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23234081600 Flat washer M8Flat washer M8
-
24270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
25205582560 Socket screw M8 x 25 (scotch grip)Socket screw M8 x 25 (scotch grip)
-
26234081600 Flat washer M8Flat washer M8
-
27270000453 BushingBushing
-
28270000421 Rubber mountRubber mount
-
29234082600 Flat washer M8Flat washer M8
-
30207181660 Hex screw M8 x 16Hex screw M8 x 16
-
31270000515 Engine supportEngine support
-
32207182060 Hex screw M8 x 20Hex screw M8 x 20
-
33234082600 Flat washer M8Flat washer M8
-
34270000025 Shim 1.3 mmShim 1.3 mm
-
270000024 Shim 0.3 mmShim 0.3 mm
-
35270000430 Rubber mountRubber mount
-
36207184060 Hex screw M8 x 40Hex screw M8 x 40
-
37234081600 Flat washer M8Flat washer M8
-
38270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
39278001650 Spark plug NGK. .Spark plug NGK. .
-
40278001016 Temperature SensorTemperature Sensor
-
41293800038 Loctite 518, 10 mlLoctite 518, 10 ml
-
42270600040 Pressure sensorPressure sensor
-
43270600019 Valve adaptorValve adaptor
-
44243041660 Hex plastite screw M4.8 x 16Hex plastite screw M4.8 x 16
-
45211200035 Flat washer M4.9Flat washer M4.9
-
46270600000 Air sensorAir sensor
-
47270000484 Noise sensorNoise sensor
-
48207183060 Hex screw M8 x 30Hex screw M8 x 30
-
49414115200 Tie-rapTie-rap
-
50293730018 Mount dartMount dart
-
51270600058 Throttle body twin bore. Includes 51 - 76.Throttle body twin bore. Includes 51 - 76.
-
52270600069 Lower supportLower support
-
53270600070 Support ass'y. Includes 53 - 54.Support ass'y. Includes 53 - 54.
-
54270600073 Latch bracketLatch bracket
-
55205051060 Socket screw M5 x 10Socket screw M5 x 10
-
56270600074 Adjuster screwAdjuster screw
-
57270600075 SpringSpring
-
58270600076 Primary throttle body. Includes 58 - 66.Primary throttle body. Includes 58 - 66.
-
59270600077 Throttle lever ass'yThrottle lever ass'y
-
60270600078 Potentiometer screw M4Potentiometer screw M4
-
61234161601 Helical lock washer M6Helical lock washer M6
-
62232061600 Hex nut M6Hex nut M6
-
63270600079 Guide springGuide spring
-
64270600080 SpringSpring
-
65270000251 Position Sensor. Includes 65 - 66.Position Sensor. Includes 65 - 66.
-
66270000544 O-ringO-ring
-
67270600081 Secondary throttle body. Includes 67 - 75.Secondary throttle body. Includes 67 - 75.
-
68270600082 Pick-up leverPick-up lever
-
69270600078 Potentiometer screw M4Potentiometer screw M4
-
70234161601 Helical lock washer M6Helical lock washer M6
-
71232061600 Hex nut M6Hex nut M6
-
72270600079 Sring guideSring guide
-
73270600083 SpringSpring
-
74270000251 Position Sensor. Includes 74 - 75.Position Sensor. Includes 74 - 75.
-
75270000544 O-ringO-ring
-
76270600084 Idle screwIdle screw
-
77270600085 Cover (loctite ultra grey)Cover (loctite ultra grey)
-
78270000546 Injection cable. Includes 78 - 80.Injection cable. Includes 78 - 80.
-
79232160600 Hex nut M6Hex nut M6
-
80234061600 Flat washerFlat washer
-
81277001197 Throttle cableThrottle cable
-
82277000279 Tab lockTab lock
-
83293250065 O-ringO-ring
-
84278001512 InsulatorInsulator
-
85293650079 Norma clampNorma clamp
-
86278000631 Male terminalMale terminal
-
87293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
88278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
