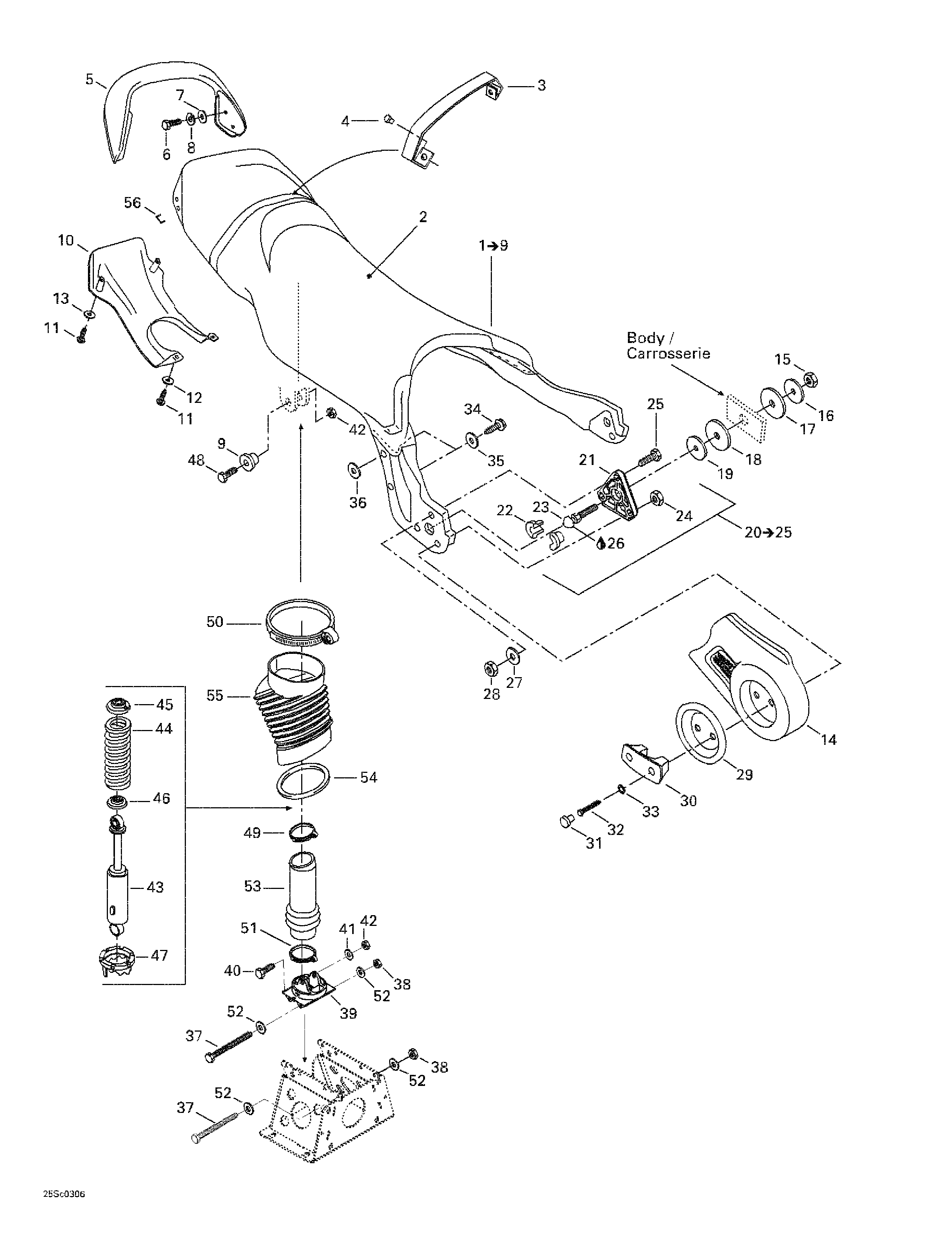

09- Seat для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1269000897 Seat ass'y. Includes 1 - 9.Seat ass'y. Includes 1 - 9.
-
2269001023 Cover & foamCover & foam
-
3269000649 StrapStrap
-
4293150067 RivetRivet
-
5269000434 Grab handleGrab handle
-
6207382560 Hex screw M8 x 25 (scotch grip)Hex screw M8 x 25 (scotch grip)
-
7234081600 Flat washer M8Flat washer M8
-
8234181601 Helical lock washer M8Helical lock washer M8
-
9269000427 Spacer 12 mmSpacer 12 mm
-
10269000429 Rear body coverRear body cover
-
11243041660 Hex plastite screw M4.8 x 16Hex plastite screw M4.8 x 16
-
12234051600 Flat washer M5Flat washer M5
-
13234052600 Flat washer M5Flat washer M5
-
14269000432 LH frame coverLH frame cover
-
269000431 R.h. frame coverR.h. frame cover
-
15232581600 Hex elastic nut M8Hex elastic nut M8
-
16269000137 WasherWasher
-
17293830032 Rubber washerRubber washer
-
18293830029 Rubber washerRubber washer
-
19211200030 WasherWasher
-
20269000448 Seat pivot. Includes 20 - 25.Seat pivot. Includes 20 - 25.
-
24232561600 Hex elastic nut M6Hex elastic nut M6
-
25207063044 Hex screw M6 x 30Hex screw M6 x 30
-
26293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
27234061600 Flat washer M6Flat washer M6
-
28232561600 Hex elastic nut M6Hex elastic nut M6
-
29292000438 ShellShell
-
30269000430 Seat bow-eyeSeat bow-eye
-
31277000203 Grip capGrip cap
-
32207165060 Hex screw M6 x 50Hex screw M6 x 50
-
33234061600 Flat washer M6Flat washer M6
-
34241142560 Hex flanged screw K40 x 25Hex flanged screw K40 x 25
-
35234042600 Flat washer M4Flat washer M4
-
36234042600 Flat washer M4Flat washer M4
-
37230062060 Hex screw M6 x 120Hex screw M6 x 120
-
38232561600 Hex elastic nut M6Hex elastic nut M6
-
39291001201 Lower shock supportLower shock support
-
40207006060 Hex screw M10 x 60Hex screw M10 x 60
-
41234001600 Flat washer M410Flat washer M410
-
42232501600 Hex elastic nut M10Hex elastic nut M10
-
43291001244 ShockShock
-
44291001245 SpringSpring
-
45503140600 Spring stopperSpring stopper
-
46503165100 Spring guideSpring guide
-
47291001088 Adjuster ringAdjuster ring
-
48207007060 Hex screw M10 x 70Hex screw M10 x 70
-
49293650006 Tridon clampTridon clamp
-
50293650054 Tridon clampTridon clamp
-
51293650006 Tridon clampTridon clamp
-
52234062600 Flat washer M6Flat washer M6
-
53291001247 Shock bellowShock bellow
-
54293000012 Retainer ringRetainer ring
-
55291001016 Outer bellowOuter bellow
-
56293730005 StapleStaple
