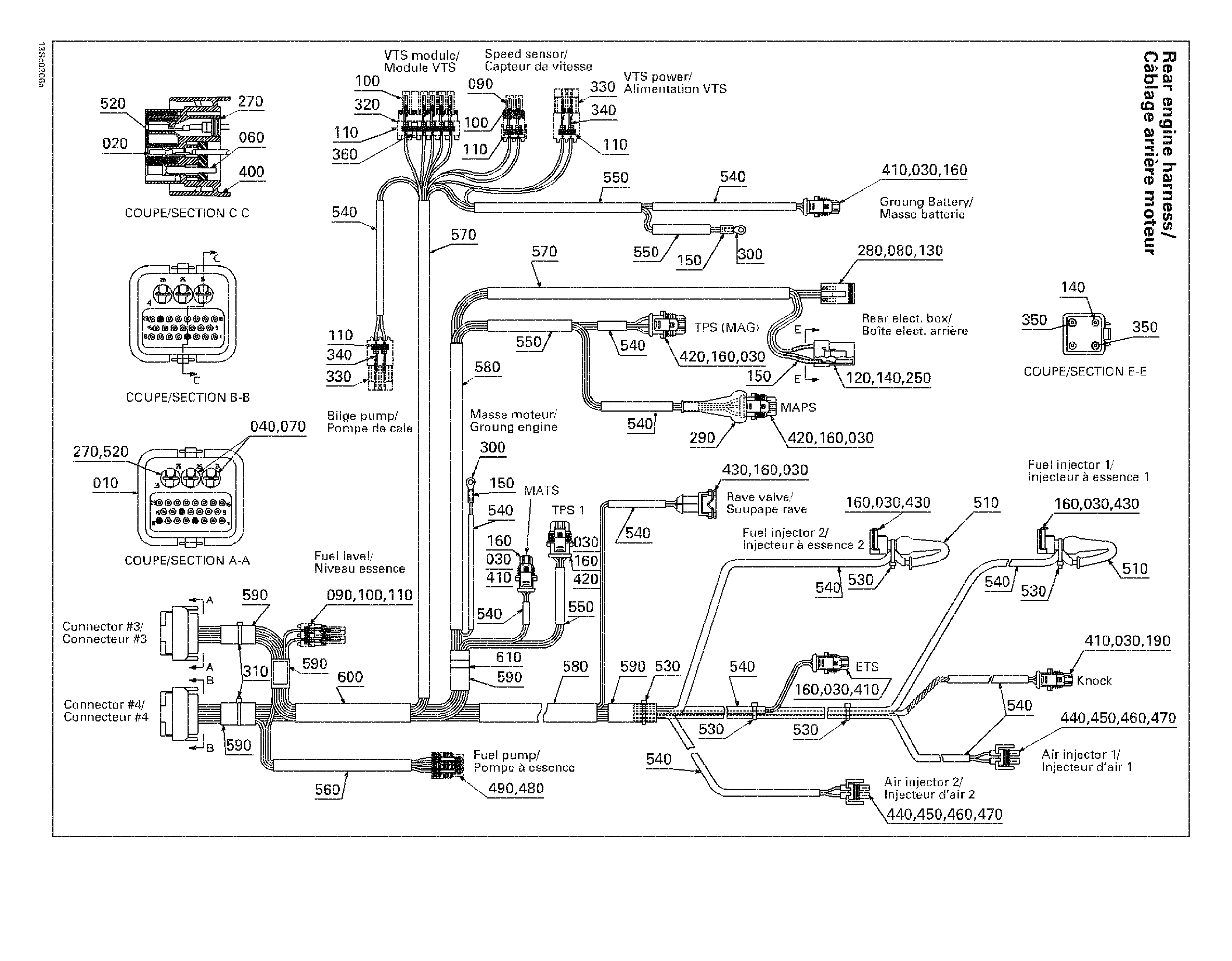

10- Rear Engine Harness для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1278001878 Rear engine wiring harness. Includes 1 - 610.Rear engine wiring harness. Includes 1 - 610.
-
10278001063 Male connector (26 circuits)Male connector (26 circuits)
-
20278000995 Female terminalFemale terminal
-
30278000999 SealSeal
-
40409011700 Female terminalFemale terminal
-
60293000070 SealSeal
-
70278001223 SealSeal
-
80278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
90278000220 Male connector (2 circuits)Male connector (2 circuits)
-
100278000223 Female terminalFemale terminal
-
110278000218 SealSeal
-
120278001473 Male connector (4 circuits)Male connector (4 circuits)
-
130278000736 Male connector (6 circuits)Male connector (6 circuits)
-
140515175260 Female terminalFemale terminal
-
160278000998 Female terminalFemale terminal
-
190278001210 Female terminalFemale terminal
-
250278001474 Lock (4 circuits)Lock (4 circuits)
-
270278000996 SealSeal
-
280278000632 Female terminalFemale terminal
-
300278001392 Ring terminalRing terminal
-
310293750002 Tie-rap 130 mmTie-rap 130 mm
-
320278000221 Male connector (6 circuits)Male connector (6 circuits)
-
330278000217 Female connector (2 circuits)Female connector (2 circuits)
-
340409004300 Male terminalMale terminal
-
360278000216 SealSeal
-
400278001211 Male connector (26 circuits)Male connector (26 circuits)
-
410278001005 Male connector (2 circuits)Male connector (2 circuits)
-
420278000997 Male connector (3 circuits)Male connector (3 circuits)
-
430278001003 Male connector (2 circuits)Male connector (2 circuits)
-
440278001480 Male connector (2 circuits)Male connector (2 circuits)
-
450278001481 Female terminalFemale terminal
-
460278001482 SealSeal
-
470278001483 Lock (2 circuits)Lock (2 circuits)
-
480278001308 Male connector (4 circuits)Male connector (4 circuits)
-
490278001114 Female terminalFemale terminal
-
510278001484 Rubber bootRubber boot
-
520278000994 Female terminalFemale terminal
-
530293750001 Tie-rapTie-rap
