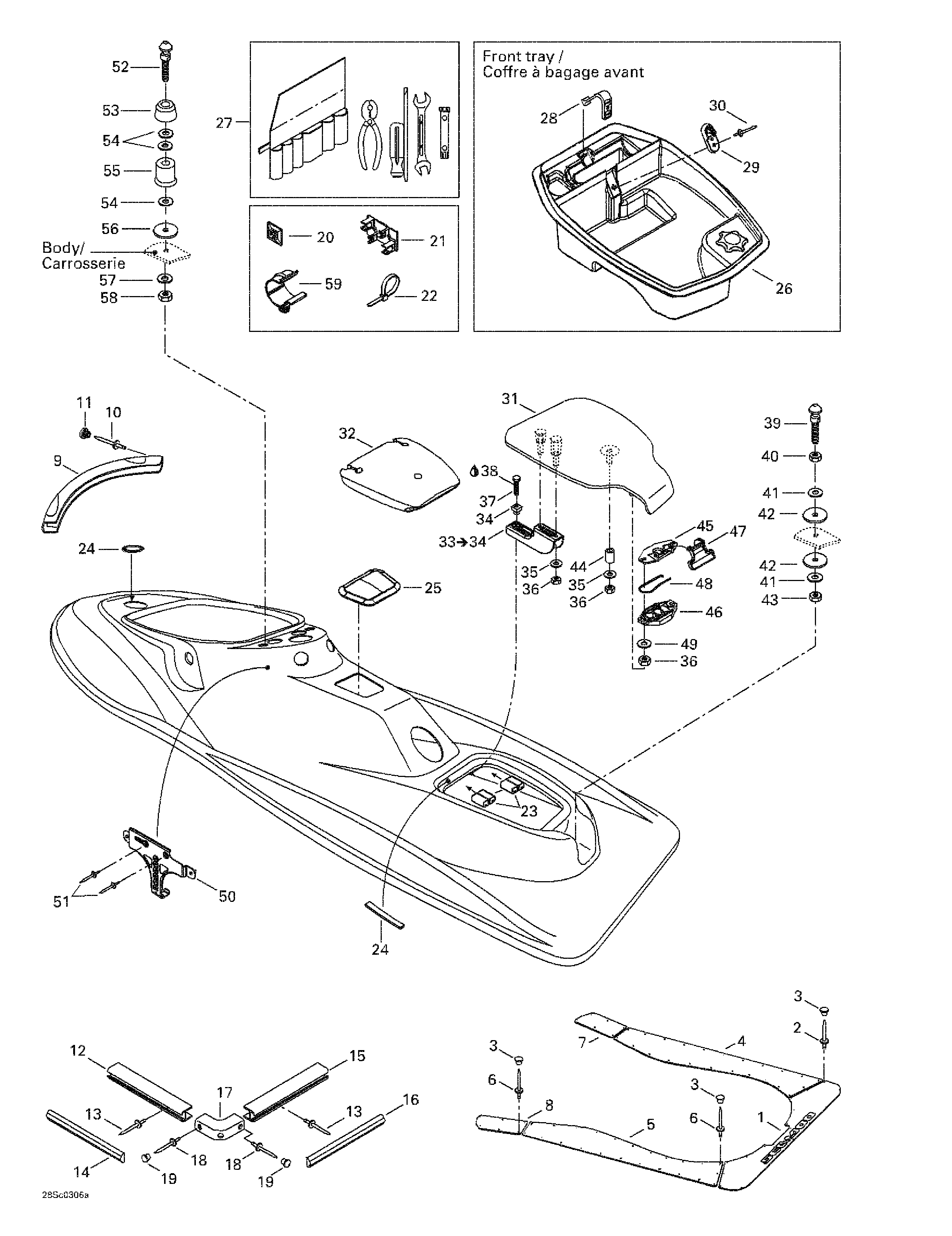

09- Body для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1291001009 Rear carpetRear carpet
-
2293150016 Pop rivet 1/8''Pop rivet 1/8''
-
3293000014 Snap capSnap cap
-
4291001254 R.h. center carpetR.h. center carpet
-
5291001255 LH center carpetLH center carpet
-
6293150036 Pop rivet 1/8''Pop rivet 1/8''
-
7291001005 R.h. front carpetR.h. front carpet
-
8291001006 LH front carpetLH front carpet
-
9291000801 Bumper noseBumper nose
-
10293150014 Pop rivet 3/16''Pop rivet 3/16''
-
11291000339 Bumper plugBumper plug
-
12291000995 Side bumperSide bumper
-
13293150005 Pop rivet 3/16''Pop rivet 3/16''
-
14291000996 Side bumper trimSide bumper trim
-
15291000997 Rear BumperRear Bumper
-
16291000998 Rear bumper trimRear bumper trim
-
17291001505 Bumper cornerBumper corner
-
18293150013 Pop rivet 3/16''Pop rivet 3/16''
-
19291000339 Bumper plugBumper plug
-
20293750025 Tie-rap mountTie-rap mount
-
21291001399 Clamp tieClamp tie
-
22293750008 Tie-rap 350 mmTie-rap 350 mm
-
23291000723 SpacerSpacer
-
24293200017 Neoprene sealNeoprene seal
-
25292000926 Hull plugHull plug
-
26269501245 Front trayFront tray
-
27295500783 Owners tool kitOwners tool kit
-
28269500408 StrapStrap
-
29269500521 HookHook
-
30293150027 Avdel rivet 3/16''Avdel rivet 3/16''
-
31269501153 Rear access coverRear access cover
-
32269500417 FloatFloat
-
33269500575 Base keeper. Includes 33 - 34.Base keeper. Includes 33 - 34.
-
34211100033 Square nut M8Square nut M8
-
35234062600 Flat washer M6Flat washer M6
-
36232561600 Hex elastic nut M6Hex elastic nut M6
-
37211000047 Special screw M8Special screw M8
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39291000690 Latch studLatch stud
-
40232100600 Hex jam nut M10Hex jam nut M10
-
41234002600 Flat washer M10Flat washer M10
-
42291000628 Rubber washerRubber washer
-
43232501600 Hex elastic nut M10Hex elastic nut M10
-
44291000177 SpacerSpacer
-
45269700076 Latch coverLatch cover
-
46269000015 Latch baseLatch base
-
47269700077 Latch leverLatch lever
-
48269700017 Latch springLatch spring
-
49234061600 Flat washer M6Flat washer M6
-
50291001927 Module support ass'yModule support ass'y
-
51293150039 Pop rivet 3/16''Pop rivet 3/16''
-
52291001021 Latch studLatch stud
-
53293830025 Rubber padRubber pad
-
54234002600 Flat washer M10Flat washer M10
-
55291001089 Spacer ringSpacer ring
-
56291000628 Rubber washerRubber washer
-
57234002600 Flat washer M10Flat washer M10
-
58232501600 Hex elastic nut M10Hex elastic nut M10
-
59275500590 RetainerRetainer
