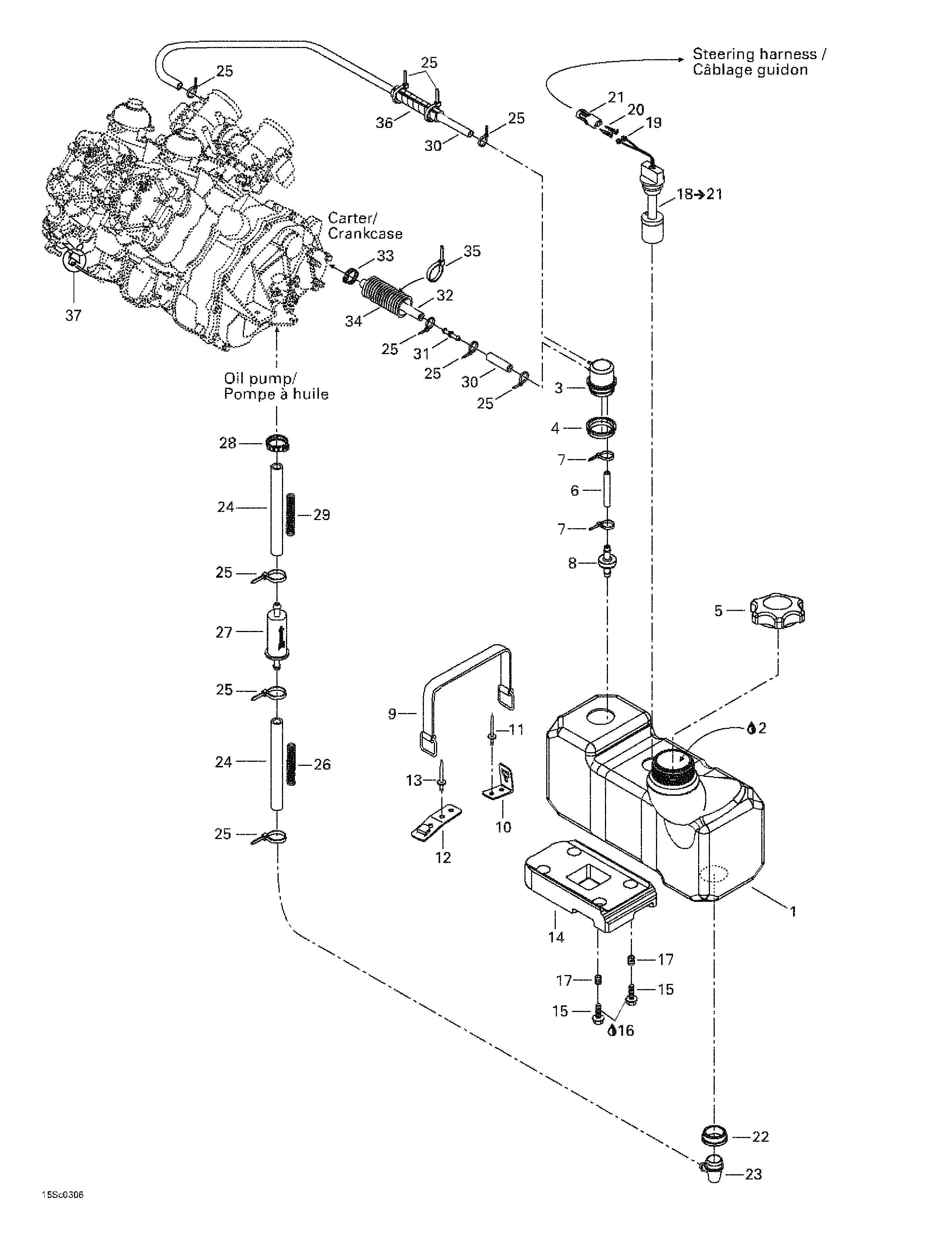

02- Oil Injection System для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1275000255 Oil tankOil tank
-
2293600045 Synthetic injection oil. Formula XP-S II (12 x 1 liter)Synthetic injection oil. Formula XP-S II (12 x 1 liter)
-
293600046 Synthetic injection oil. Formula XP-S II (3 x 4 liters)Synthetic injection oil. Formula XP-S II (3 x 4 liters)
-
293600047 Synthetic injection oil. Formula XP-S II (205 liters)Synthetic injection oil. Formula XP-S II (205 liters)
-
3275000252 SeparetorSeparetor
-
4293720072 GrommetGrommet
-
5572039600 CapCap
-
6270000374 Hose 4.3 mmHose 4.3 mm
-
7293750001 Tie-rap 94 mmTie-rap 94 mm
-
8275500398 Check valveCheck valve
-
9293850097 Rubber strapRubber strap
-
10293850075 Strap lip 90 DegStrap lip 90 Deg
-
11293150037 Avdel rivet 3/16''Avdel rivet 3/16''
-
12293850030 Strap clipStrap clip
-
13293150037 Avdel rivet 3/16''Avdel rivet 3/16''
-
14292000629 Foam padFoam pad
-
15211000023 Hex flanged plastite screw #10 x 7/8''Hex flanged plastite screw #10 x 7/8''
-
16293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
17292000528 SleeveSleeve
-
18278001515 Oil sensor. Includes 18 - 21.Oil sensor. Includes 18 - 21.
-
19278000218 SealSeal
-
20278000222 Male terminalMale terminal
-
21278000217 Female connector (2 circuits)Female connector (2 circuits)
-
22293720008 GrommetGrommet
-
23293710070 Elbow fitting 90 DegElbow fitting 90 Deg
-
24275000007 Hose 8 mmHose 8 mm
-
25293750001 Tie-rap 94 mmTie-rap 94 mm
-
26270000377 SpringSpring
-
27275000051 Oil filterOil filter
-
28293650042 Oetiker clampOetiker clamp
-
29270000594 SpringSpring
-
30270000374 Hose 4.3 mmHose 4.3 mm
-
31275500444 Straight fittingStraight fitting
-
32270000469 Hose 3 mmHose 3 mm
-
33293650105 Oetiker clampOetiker clamp
-
34415116600 Protection ShieldProtection Shield
-
35293750002 Tie-rap 130 mmTie-rap 130 mm
-
36415079900 Tubing 10 mmTubing 10 mm
-
37420924652 Elbow Fitting 90 DegElbow Fitting 90 Deg
