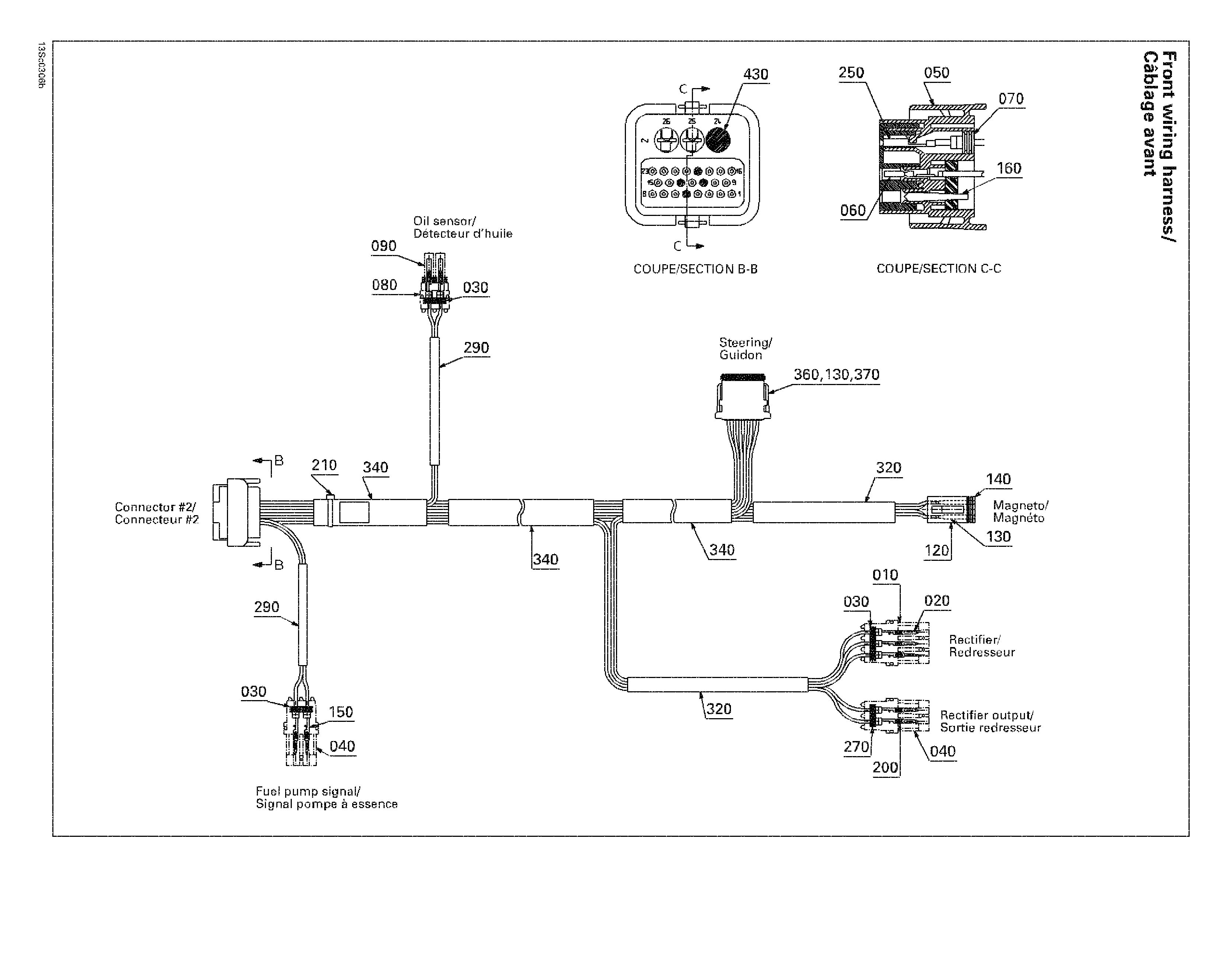

10- Front Harness для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1278001879 Front wiring harness. Includes 1 - 430.Front wiring harness. Includes 1 - 430.
-
10278000281 Female connector (3 circuits)Female connector (3 circuits)
-
20409004300 Male terminalMale terminal
-
30278000218 SealSeal
-
40278000217 Female connector (2 circuits)Female connector (2 circuits)
-
50278001062 Male connector (26 circuits)Male connector (26 circuits)
-
60278000995 Female terminalFemale terminal
-
70278001223 SealSeal
-
80278000220 Male connector (2 circuits)Male connector (2 circuits)
-
90278000223 Female terminalFemale terminal
-
120278000736 Male connector (6 circuits)Male connector (6 circuits)
-
130278000632 Female terminalFemale terminal
-
140278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
150278000222 Male terminalMale terminal
-
160293000070 SealSeal
-
200278001576 Male terminalMale terminal
-
210293750002 Tie-rap 130 mmTie-rap 130 mm
-
250409011700 Female terminalFemale terminal
-
270278001505 SealSeal
-
360409015900 Male connector (12 circuits)Male connector (12 circuits)
-
370409015700 Secondary lock (12 circuits)Secondary lock (12 circuits)
-
430409013900 SealSeal
