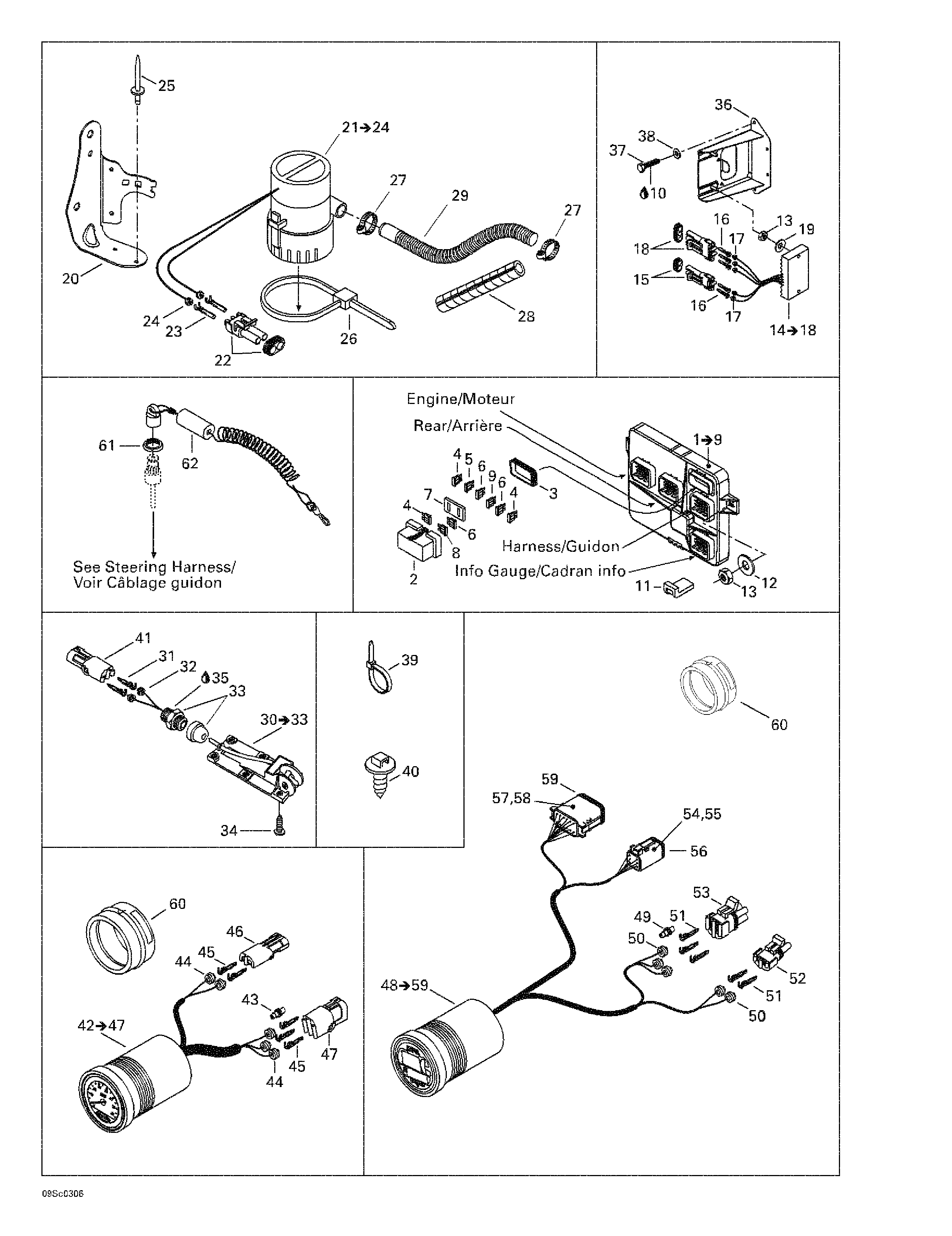

10- Electronic Module And Electrical Accessories для BRP XP DI, 6130/6131 - 2003
-
№АртикулНазвание
-
1278001895 Electronic module. Includes 1 - 9.Electronic module. Includes 1 - 9.
-
3278001070 Cover sealCover seal
-
4278000343 Fuse 15 amperesFuse 15 amperes
-
5278001442 Fuse 2 amperesFuse 2 amperes
-
6278001443 Fuse 25 amperesFuse 25 amperes
-
7278001719 Support foamSupport foam
-
8410917200 Fuse 30 amperesFuse 30 amperes
-
9278000704 Fuse 7.5 amperesFuse 7.5 amperes
-
10293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
11278001166 Module protectionModule protection
-
12234062600 Flat washer M6Flat washer M6
-
13232561600 Hex elastic nut M6Hex elastic nut M6
-
14278001554 Rectifier ass'y. Includes 14 - 18.Rectifier ass'y. Includes 14 - 18.
-
15278000220 Male housing (2 circuits)Male housing (2 circuits)
-
16409007300 Female terminalFemale terminal
-
17278000218 Wire sealWire seal
-
18278000273 Male housing (3 circuits)Male housing (3 circuits)
-
19234061600 Flat washer M6Flat washer M6
-
20271000897 Bilge supportBilge support
-
21278001176 Bilge pump. Includes 21 - 24.Bilge pump. Includes 21 - 24.
-
22278000220 Male housing (2 circuits)Male housing (2 circuits)
-
23278000223 Female terminalFemale terminal
-
24278000218 Wire sealWire seal
-
25293150059 Pop rivet 5/32''Pop rivet 5/32''
-
26293750008 Tie-rap 350 mmTie-rap 350 mm
-
27293650130 Tridon clampTridon clamp
-
28415116600 Protection ShieldProtection Shield
-
29291001206 Bilgeflex hoseBilgeflex hose
-
30278001668 Speed sensor. Includes 30 - 33.Speed sensor. Includes 30 - 33.
-
33293710031 Electric connectionElectric connection
-
34250000020 Oval head Phillips countersunk screw M5 x 10Oval head Phillips countersunk screw M5 x 10
-
35293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
36278001888 SupportSupport
-
37243042060 Hex plastite screw M4,8 x 20Hex plastite screw M4,8 x 20
-
38234052600 Flat washer M5Flat washer M5
-
39293750002 Tie-rap 130 mmTie-rap 130 mm
-
414115200 Tie-rapTie-rap
-
40293730018 Mount dartMount dart
-
41278000217 Female housing (2 circuits)Female housing (2 circuits)
-
42278001822 Speedometer. Includes 42 - 47.Speedometer. Includes 42 - 47.
-
43278000216 Connector capConnector cap
-
44278001065 Wire sealWire seal
-
45278000222 Male terminalMale terminal
-
46278000217 Female connector (2 circuits)Female connector (2 circuits)
-
47278000890 Female connector (4 circuits)Female connector (4 circuits)
-
48278001883 LCD gauge. Includes 48 - 59.LCD gauge. Includes 48 - 59.
-
49278000216 Connector capConnector cap
-
50278001065 Wire sealWire seal
-
51278000223 Female terminalFemale terminal
-
52278000220 Male connector (2 circuits)Male connector (2 circuits)
-
53278000891 Male connector (4 circuits)Male connector (4 circuits)
-
54278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
55278001665 Female terminalFemale terminal
-
56278000736 Male connector (6 circuits)Male connector (6 circuits)
-
57409015700 Secondary lock (12 circuits)Secondary lock (12 circuits)
-
58278001665 Female terminalFemale terminal
-
59409015900 Male connector (12 circuits)Male connector (12 circuits)
-
60293720047 Gauge supportGauge support
-
61278000508 Safety switch nutSafety switch nut
-
62278001578 Lanyard safety (DI)Lanyard safety (DI)
