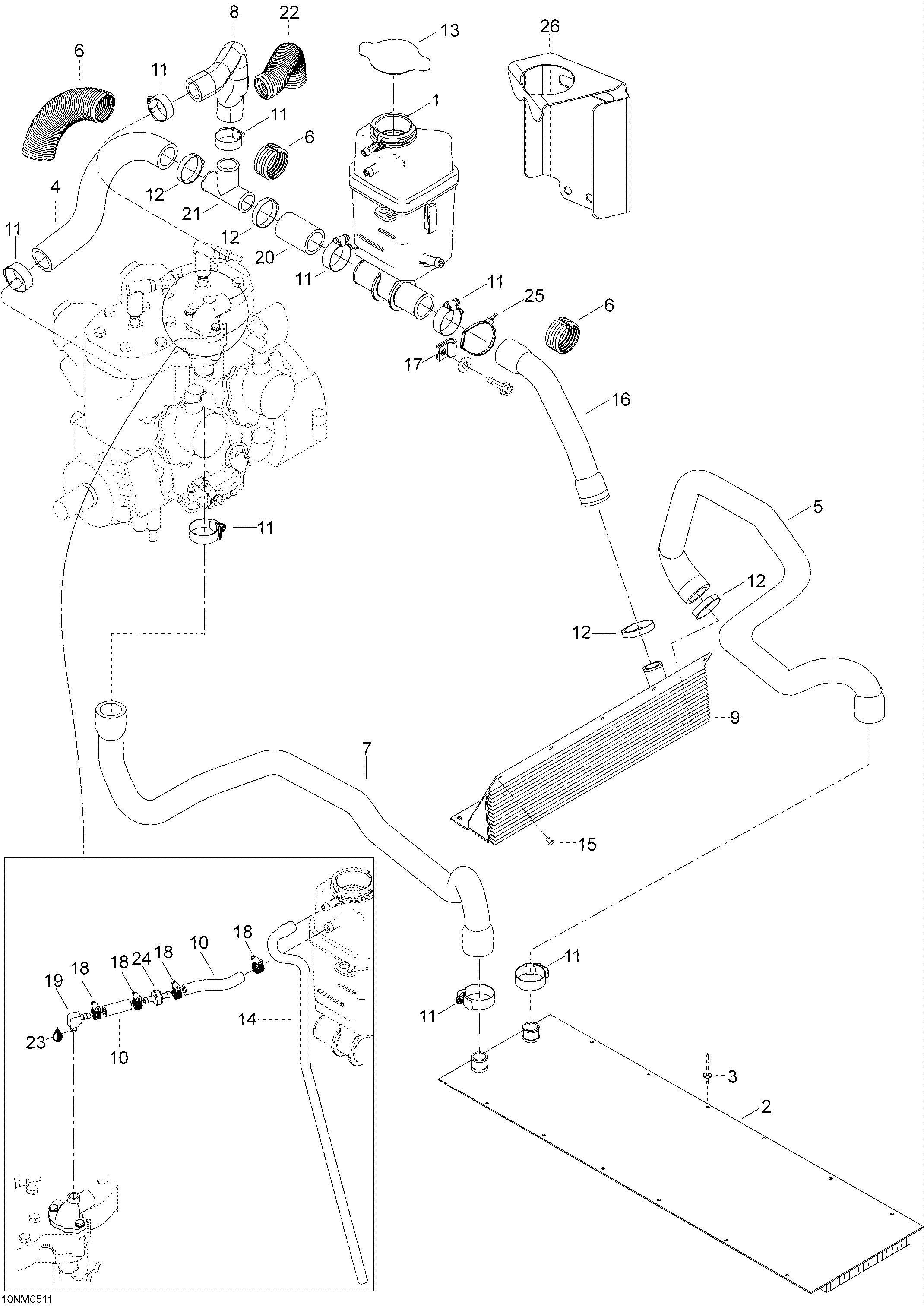

01- Cooling для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1509000140 Coolant-tankCoolant-tank
-
25246648 RadiatorRadiator
-
336083 RivetRivet
-
4509000141 HoseHose
-
55347902 HoseHose
-
6390003 TubingTubing
-
75347901 HoseHose
-
8509000142 HoseHose
-
9509000146 RadiatorRadiator
-
10509000093 HoseHose
-
11408800400 ClampClamp
-
12509000045 ClampClamp
-
13509000187 Cap pressureCap pressure
-
1439038 HoseHose
-
1536489 RivetRivet
-
16509000144 HoseHose
-
1727025 ClampClamp
-
18293650170 ClampClamp
-
19293700020 L-FittingL-Fitting
-
20509000143 HoseHose
-
21414619900 T-FittingT-Fitting
-
22605449802 TubingTubing
-
23293800018 Loctite592, 50mlLoctite592, 50ml
-
24509000153 Check valveCheck valve
-
2527100 Tie-rapTie-rap
-
26605348608 Heat protectorHeat protector
