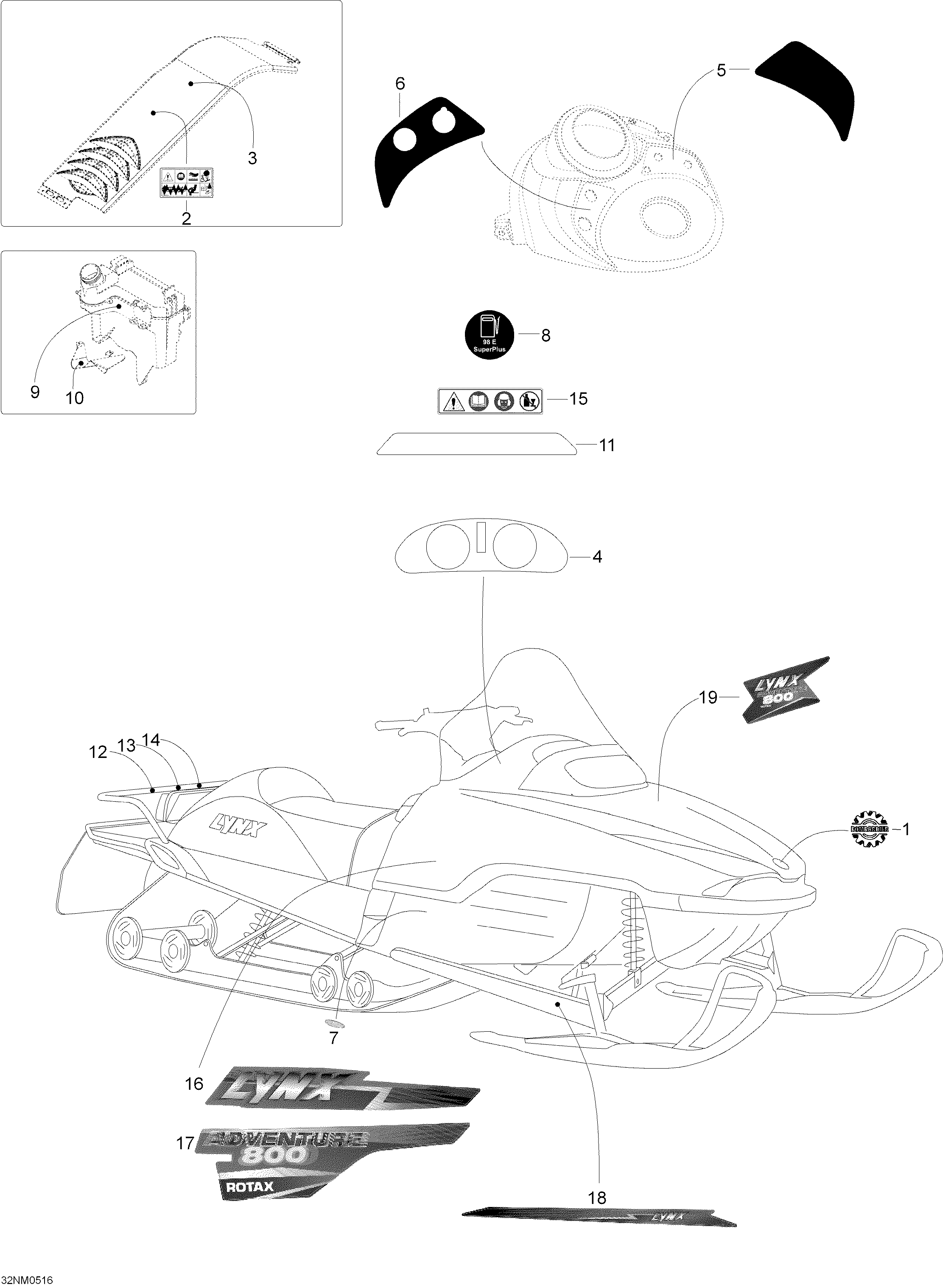

09- Decals для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1516002487 Logo-BombardierLogo-Bombardier
-
25447014 Pulley decalPulley decal
-
35447012 Oil check decalOil check decal
-
4605248800 Control panel decalControl panel decal
-
5605448798 R.H. console decalR.H. console decal
-
65446931 L.H. Console decalL.H. Console decal
-
7415064400 R.H. ReflectorR.H. Reflector
-
7415064401 L.H. ReflectorL.H. Reflector
-
85447020 Fuel labelFuel label
-
9605449628 Label, oil levelLabel, oil level
-
10605449565 Instruction decalInstruction decal
-
115346800 Instruction decalInstruction decal
-
125447931 Instruction decalInstruction decal
-
13605448799 Instruction decalInstruction decal
-
14605448801 Warning labelWarning label
-
155447124 Warning labelWarning label
-
16605350959 R.H. Hood decal, upperR.H. Hood decal, upper
-
16605350960 L.H. Hood decal, upperL.H. Hood decal, upper
-
17605350961 R.H. lower decal, hoodR.H. lower decal, hood
-
17605350962 L.H. lower decal, hoodL.H. lower decal, hood
-
18605350963 Decal, swing arm R.H.Decal, swing arm R.H.
-
18605350964 Decal, swing arm L.H.Decal, swing arm L.H.
-
19605350965 Hood decal, frontHood decal, front
