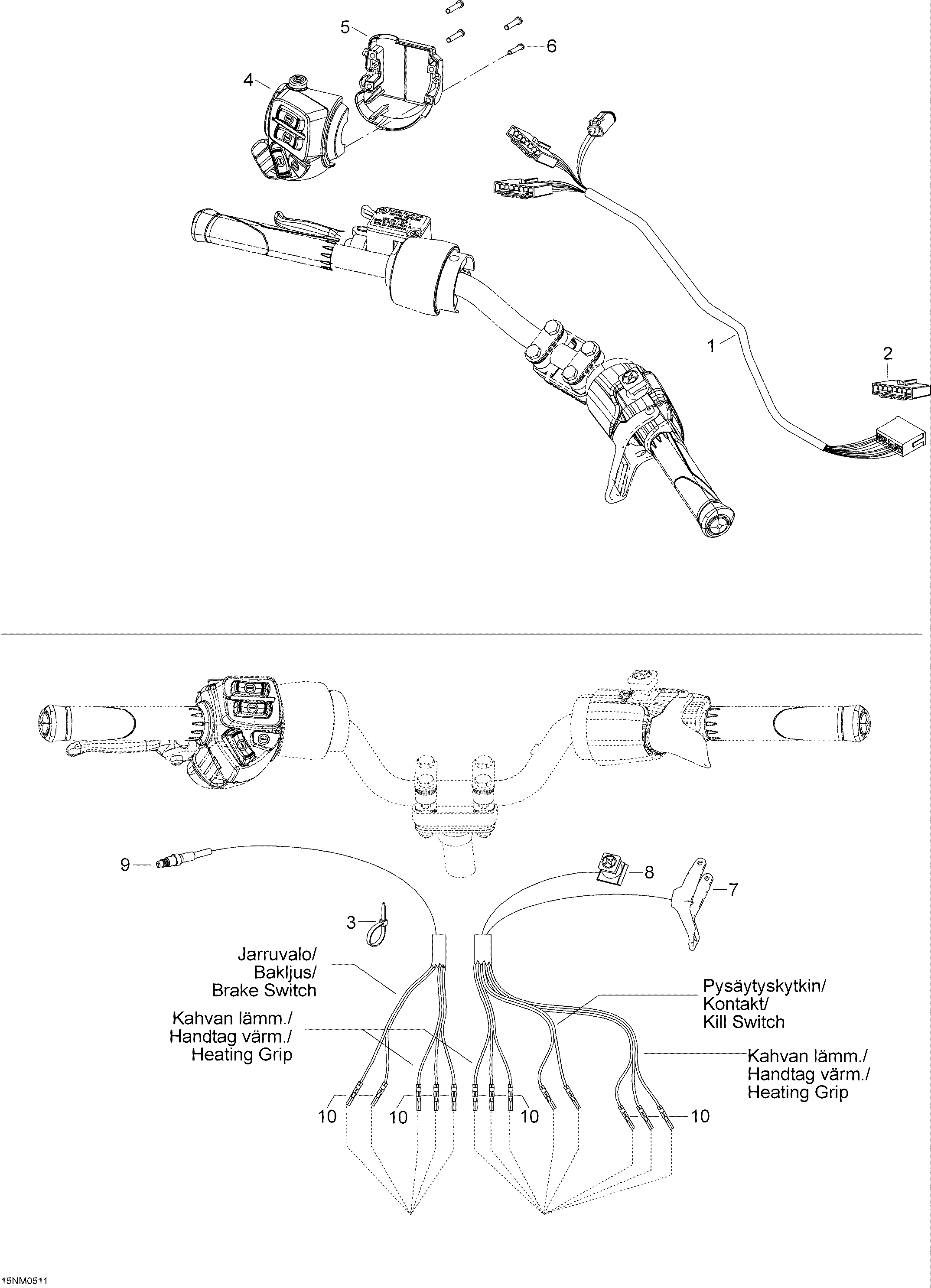

10- Steering Harness для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1605353216 Main harness ass'yMain harness ass'y
-
242617 Male connector housingMale connector housing
-
327026 Tie-rapTie-rap
-
4515176062 HousingHousing
-
5515175926 CoverCover
-
640903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
7512059107 Throttle handleThrottle handle
-
8515175410 Switch killSwitch kill
-
9507032366 Microswitch assyMicroswitch assy
-
1042603 ConnectorConnector
