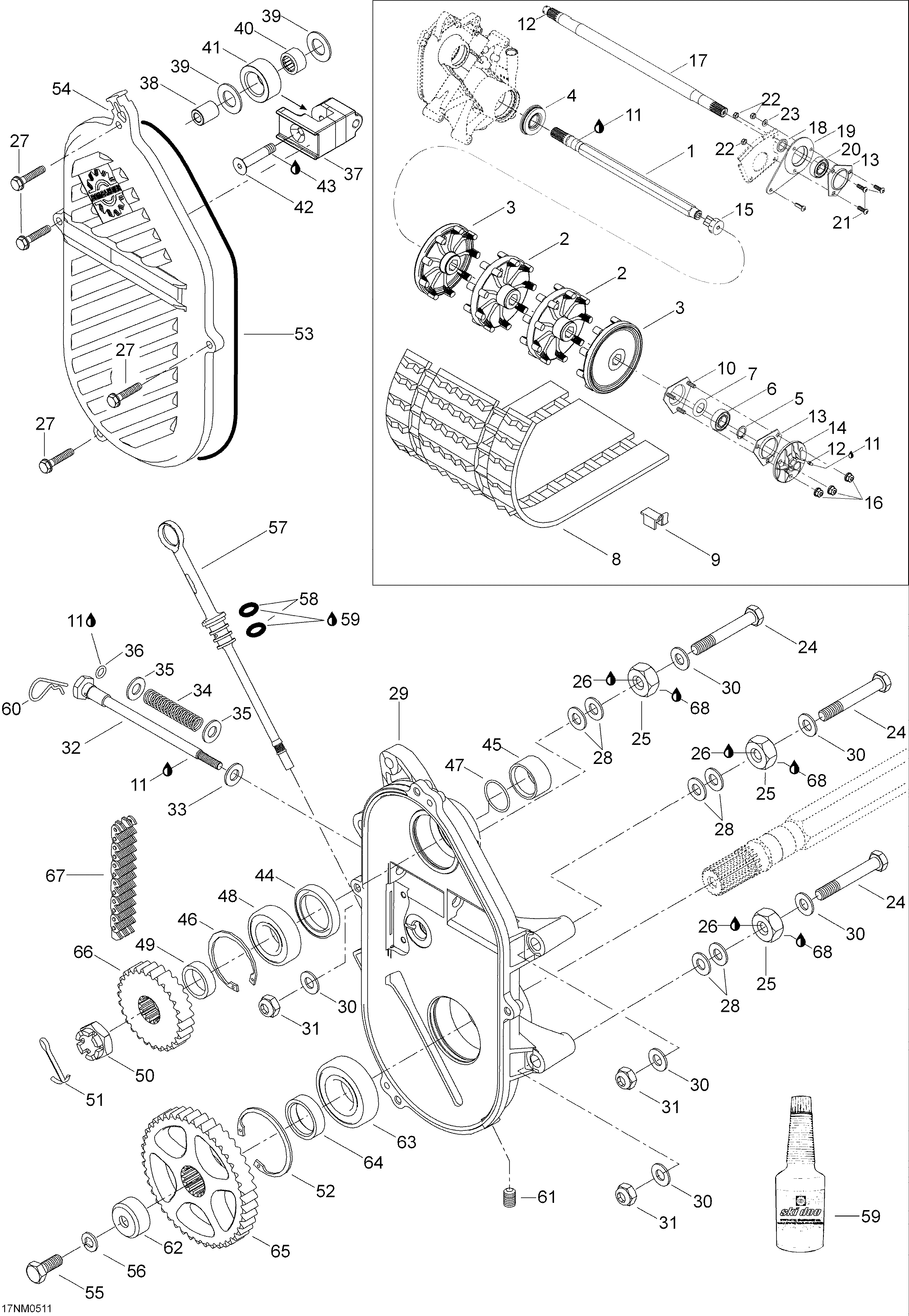

05- Drive System для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
-5346820 Drive axle ass'y. Includes 1 to 3Drive axle ass'y. Includes 1 to 3
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket 9 teethSprocket 9 teeth
-
3504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
4504151918 Oil sealOil seal
-
531001 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
8504152039 Track ass'y (31,8). Includes 8 to 9Track ass'y (31,8). Includes 8 to 9
-
9500003400 Guide cleatGuide cleat
-
10504151860 Bearing housingBearing housing
-
11293550033 Synthetic greaseSynthetic grease
-
12414784800 KorkKork
-
13501025000 FlangeFlange
-
14504152173 FlangeFlange
-
15504152040 SenderSender
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17501026300 CountershaftCountershaft
-
18504149100 SleeveSleeve
-
19080044200 Casting SpacerCasting Spacer
-
20504152026 Ball bearingBall bearing
-
2140344 Socket head screw M8 x 25Socket head screw M8 x 25
-
2233011 Elastic stop nut M8Elastic stop nut M8
-
2320104 washer, hardened M8washer, hardened M8
-
2440190 Hex, screw M10 x 80Hex, screw M10 x 80
-
25504083800 SpacerSpacer
-
26293800060 Loctite 243, 10mlLoctite 243, 10ml
-
2740340 Socket head screw M6 x 30Socket head screw M6 x 30
-
28504073700 ShimShim
-
29504152062 ChaincaseChaincase
-
3020005 Washer A10,5Washer A10,5
-
3133012 Elastic stop nut M10Elastic stop nut M10
-
32504151946 Adjusting screwAdjusting screw
-
33503189148 Washer, hardenedWasher, hardened
-
34504151945 SpringSpring
-
35503125900 Washer, hardenedWasher, hardened
-
36504151954 O-ringO-ring
-
37504151940 Chain tensionerChain tensioner
-
38504080200 SleeveSleeve
-
39504080300 WasherWasher
-
40405403000 Needle bearingNeedle bearing
-
41414531300 RollerRoller
-
42732601144 ScrewScrew
-
43293800005 Loctite 271, 10mlLoctite 271, 10ml
-
44415049300 SealSeal
-
45507031500 SleeveSleeve
-
46371901700 CirclipCirclip
-
47414876700 O-ringO-ring
-
48504152006 Ball bearingBall bearing
-
49504147200 ShimShim
-
50250000012 Nut M20Nut M20
-
5141003 PinPin
-
52415064300 CirclipCirclip
-
53415046400 O-ringO-ring
-
54504152027 CoverCover
-
5540040 Hex. screw M10 x 25Hex. screw M10 x 25
-
5620068 Lock washer D10Lock washer D10
-
57504151703 Filler cap ass'yFiller cap ass'y
-
58414969400 O-ringO-ring
-
59413803300 Synt. chaincase oil (12 x 355ml)Synt. chaincase oil (12 x 355ml)
-
60414575600 PinPin
-
61504151921 PlugPlug
-
62504152104 SleeveSleeve
-
63504152005 Ball bearingBall bearing
-
64504152058 SleeveSleeve
-
65504148500 Sprocket Z43/13Sprocket Z43/13
-
66504085300 Sprocket Z26Sprocket Z26
-
67504151856 Chain 76/13Chain 76/13
-
68293800070 Loctite 767, 8ozLoctite 767, 8oz
