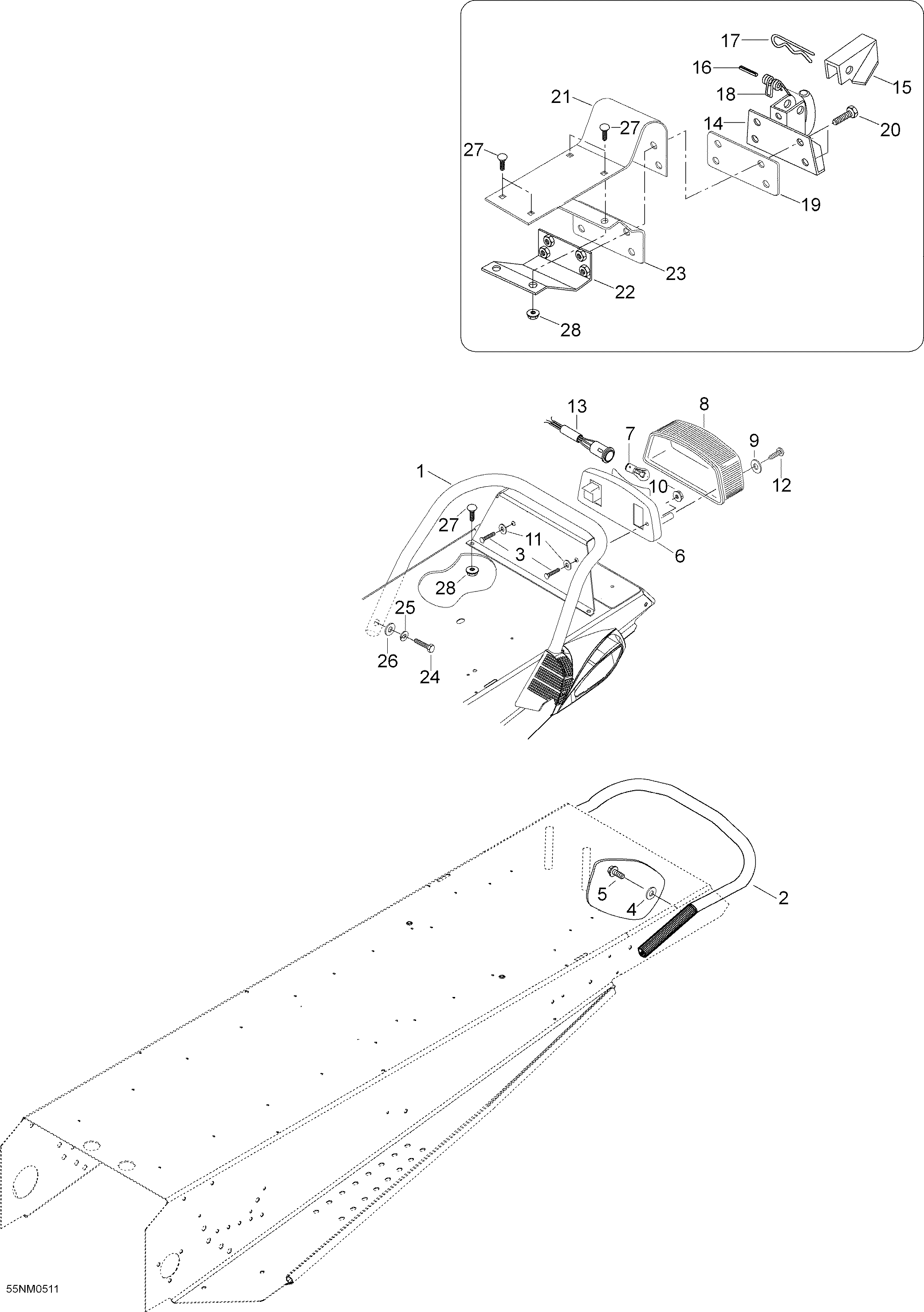

09- Rack для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1605250506 RackRack
-
2605351221 Rear bumperRear bumper
-
340149 Locking screw M6 x 30Locking screw M6 x 30
-
420077 Washer A8,4Washer A8,4
-
540336 Hex. screw M8 x 20Hex. screw M8 x 20
-
6515175397 HousingHousing
-
7410504000 BulpBulp
-
8414513700 LensLens
-
9414516400 WasherWasher
-
1033200 Elastic flanged nut M6Elastic flanged nut M6
-
1120004 Washer A8,4Washer A8,4
-
12414516300 ScrewScrew
-
13515175852 AdapterAdapter
-
-5344156 Hitch ass'y. Includes 14 to 18Hitch ass'y. Includes 14 to 18
-
145344208 HitchHitch
-
155440767 LockLock
-
1641012 PinPin
-
1741029 PinPin
-
18545693 SpringSpring
-
19605449546 PlatePlate
-
2040386 Hex. screw M8 x 30Hex. screw M8 x 30
-
21605349106 Hitch supportHitch support
-
22605349124 Hitch supportHitch support
-
23605349487 Hitch supportHitch support
-
2440030 Hex. screw M6 x 20Hex. screw M6 x 20
-
2520052 Lock washer A6Lock washer A6
-
2620009 Washer A6.4Washer A6.4
-
2740866 Locking screw M6 x 20Locking screw M6 x 20
-
2833200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
