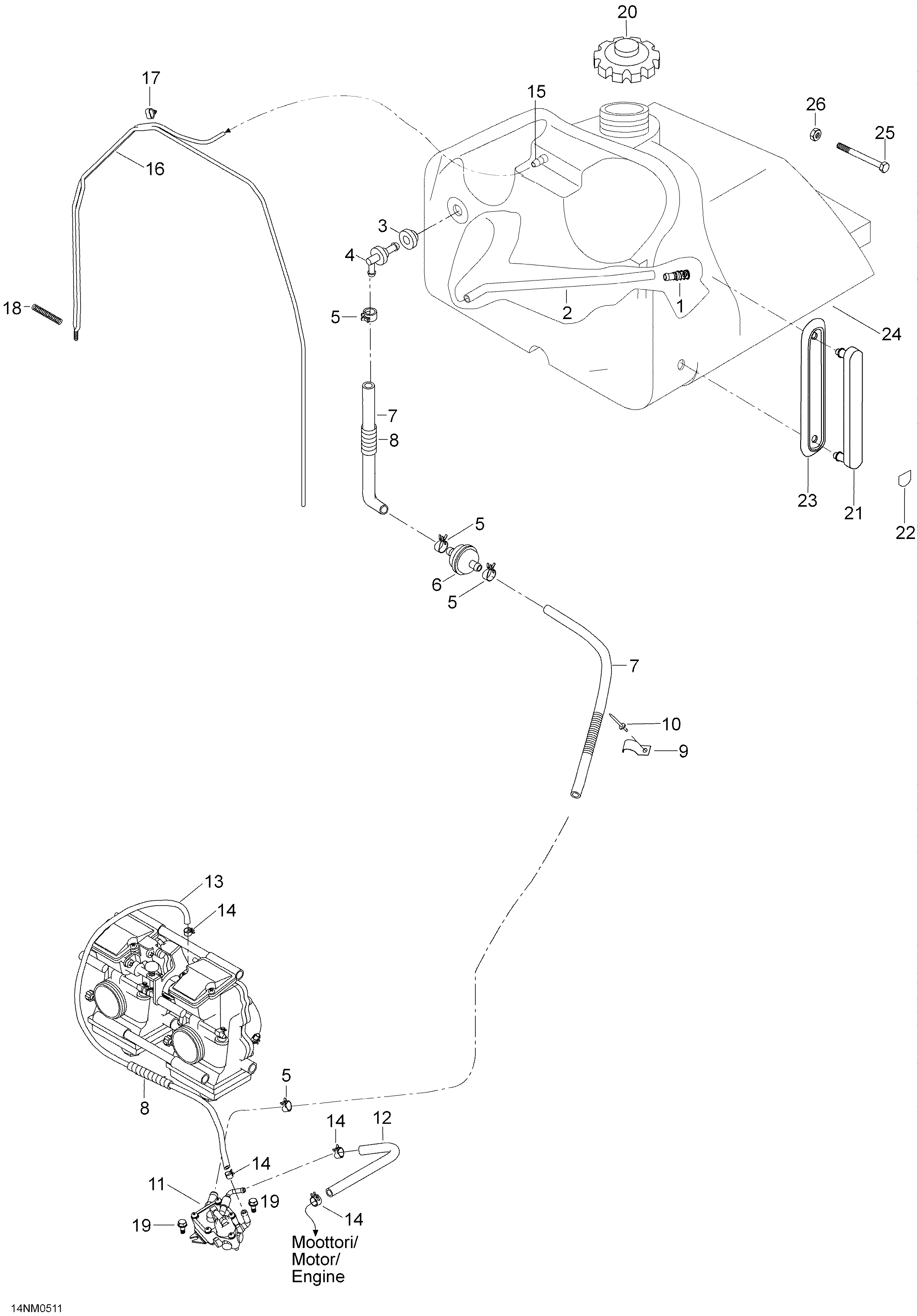

02- Fuel System для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1414872100 Fuel filterFuel filter
-
239048 Fuel lineFuel line
-
328037 GrommetGrommet
-
45341709 Angle adapterAngle adapter
-
5414415200 ClampClamp
-
6414536500 Fuel filterFuel filter
-
739046 Fuel lineFuel line
-
828015 TubingTubing
-
9415018200 ClipClip
-
1036036 RivetRivet
-
11403901806 Fuel pumpFuel pump
-
1239001 Fuel lineFuel line
-
1339038 Fuel lineFuel line
-
14414420700 ClampClamp
-
1519051 FittingFitting
-
1639035 Fuel lineFuel line
-
17513032923 Tube clampTube clamp
-
1825003 SpringSpring
-
1940322 Self tapp. screw M6 x 16Self tapp. screw M6 x 16
-
20580259400 Cap assemblyCap assembly
-
21572015900 Fuel gaugeFuel gauge
-
22549200 Fuel labelFuel label
-
23570018000 Housing gaugeHousing gauge
-
245146246 Fuel tank, holesFuel tank, holes
-
2540002 Hex. screw M6 x 40Hex. screw M6 x 40
-
2633200 Elastig flanged nut M6Elastig flanged nut M6
