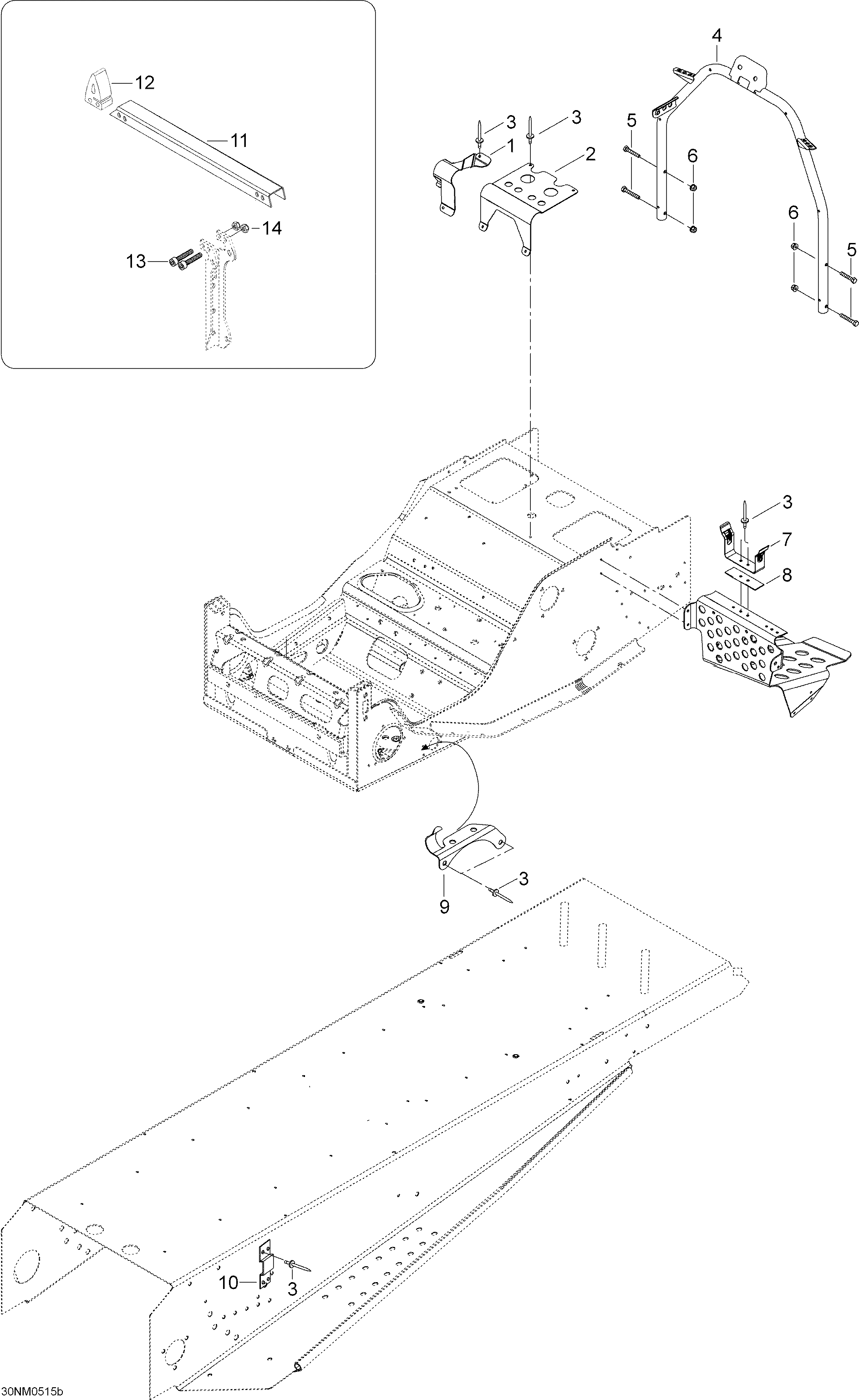

09- Frame для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1518322699 BracketBracket
-
2518310400 Air intake supportAir intake support
-
336489 RivetRivet
-
45247856 Handle steering supp.Handle steering supp.
-
540002 Hex. screw M6 x 40Hex. screw M6 x 40
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
7518202100 Pulley guard bracketPulley guard bracket
-
8518207500 ReinforcementReinforcement
-
9515175254 Cable supportCable support
-
105447908 PlatePlate
-
115348107 BracketBracket
-
125348087 Rubber damperRubber damper
-
1340345 Socket head screw M6 x 40Socket head screw M6 x 40
-
1433010 Elastic stop nut M6Elastic stop nut M6
