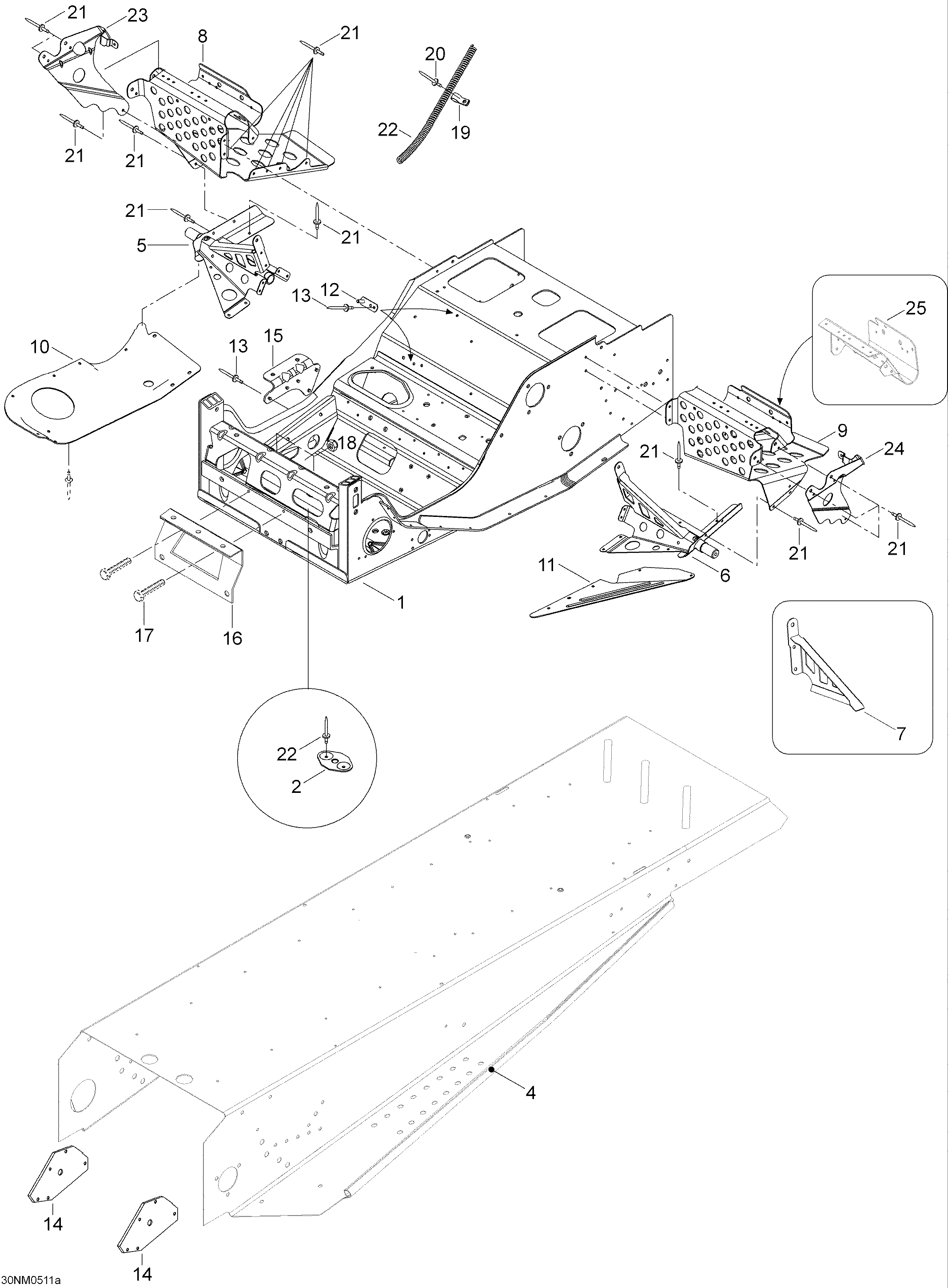

09- Frame для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1605151419 Frame ass'y. Includes 1 to 25Frame ass'y. Includes 1 to 25
-
2518201307 BracketBracket
-
4605349144 R.H. SupportR.H. Support
-
4605349145 L.H. SupportL.H. Support
-
55246775 R.H. supportR.H. support
-
65246776 L.H. supportL.H. support
-
7605351194 L.H. SupportL.H. Support
-
7605351195 R.H.SupportR.H.Support
-
8605250239 R.H. front footrestR.H. front footrest
-
9605250240 L.H. front footrestL.H. front footrest
-
10518322636 R.H. bottom pan plateR.H. bottom pan plate
-
11605349267 L.H. reinf. plateL.H. reinf. plate
-
12518319728 Double bracketDouble bracket
-
1336489 RivetRivet
-
145348321 SupportSupport
-
15518322635 BracketBracket
-
165346111 Support plateSupport plate
-
1740029 Hex. screw M6 x 16Hex. screw M6 x 16
-
1833200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
1927092 ClampClamp
-
2036036 RivetRivet
-
2136087 RivetRivet
-
22518321569 Rope guideRope guide
-
235146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
245146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
255146917 R.H. toe holdR.H. toe hold
-
255146918 R.H. toe holdR.H. toe hold
