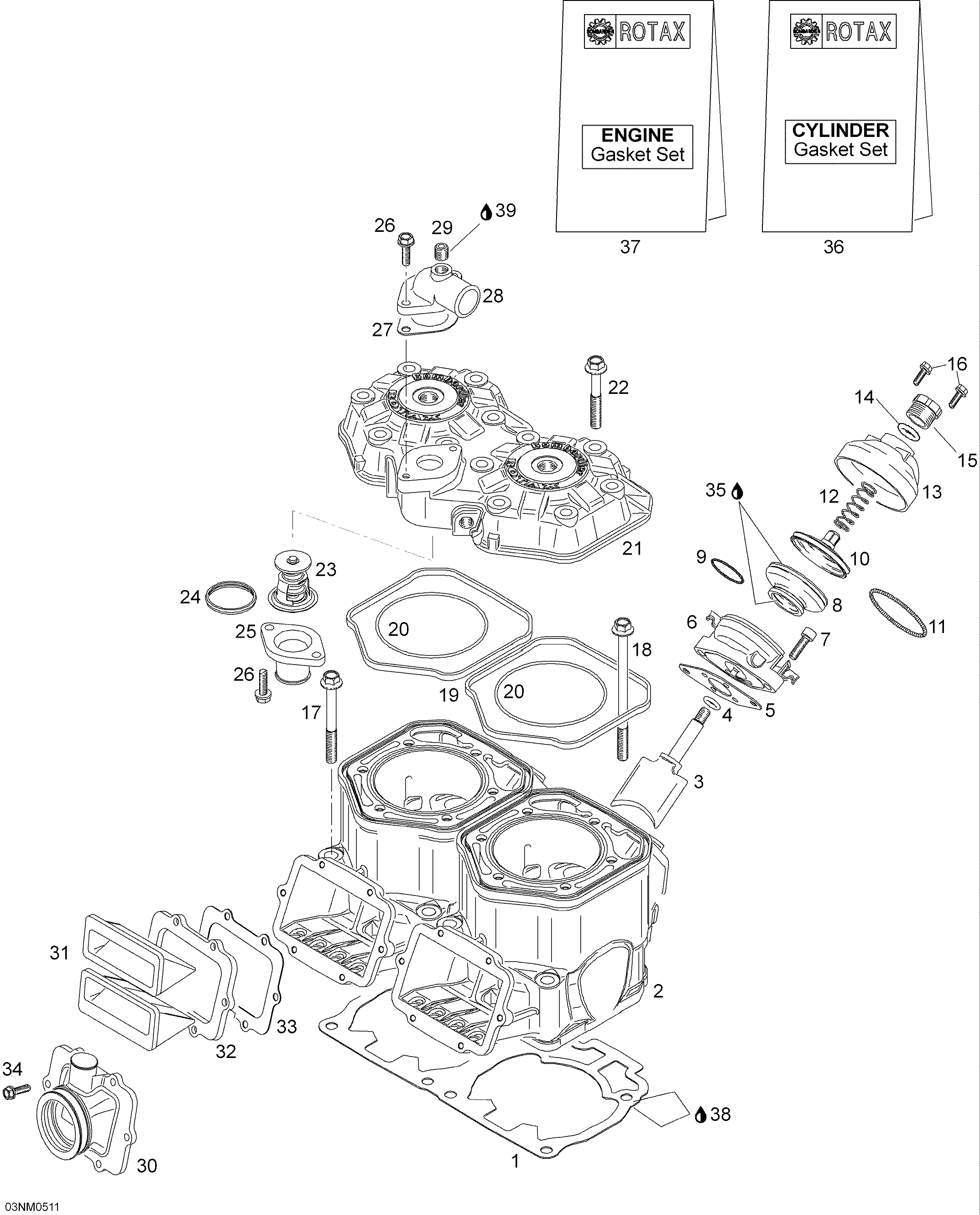

01- Cylinder для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1420931838 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931837 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931964 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931839 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420613852 Cylinder, nicasilCylinder, nicasil
-
3420854465 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 GasketGasket
-
6420854455 Valve rod housingValve rod housing
-
7420840861 Allen screw M6 x 25Allen screw M6 x 25
-
8420260729 BellowsBellows
-
9420838255 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420939280 Compression springCompression spring
-
12420239942 Spring, blackSpring, black
-
13420911558 Valve coverValve cover
-
14420430220 O-ringO-ring
-
15420241220 Adjustment screwAdjustment screw
-
16420241270 Screw M5 x 25Screw M5 x 25
-
17420640524 Screw M10 x 80Screw M10 x 80
-
18420640534 Screw M10 x 120Screw M10 x 120
-
19420931590 Square ringSquare ring
-
20420931410 O-ringO-ring
-
21420613920 Cylinderhead, redCylinderhead, red
-
22420941621 Screw M8 x 56,5Screw M8 x 56,5
-
23420922518 ThermostatThermostat
-
24420931272 Thermostat gasketThermostat gasket
-
25420922025 Water outlet socketWater outlet socket
-
26420941250 Screw M6 x 20Screw M6 x 20
-
27420850338 GasketGasket
-
28420922062 Bent outlet socketBent outlet socket
-
29420240480 Plug screwPlug screw
-
30420667102 Intake socketIntake socket
-
31420924790 Reed valve assyReed valve assy
-
32420924820 Connecting flangeConnecting flange
-
33420630815 GasketGasket
-
34420641840 Screw M5 x 35Screw M5 x 35
-
35420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
36420888745 Gasket set, cylinderGasket set, cylinder
-
37420888741 Gasket set, engineGasket set, engine
-
38293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
39293800060 Loctite 243, 10mlLoctite 243, 10ml
