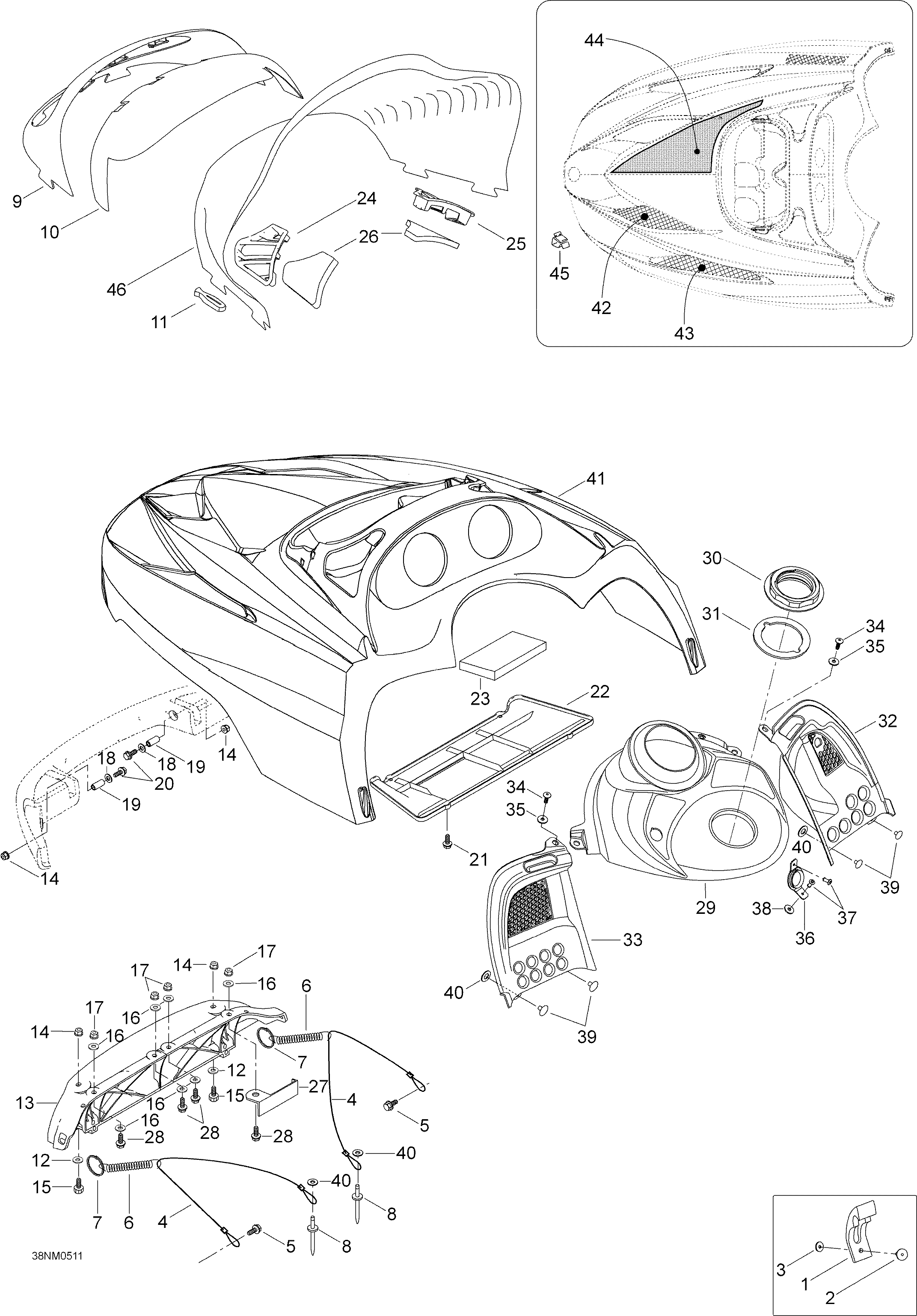

09- Hood для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1570027100 LatchLatch
-
236037 RivetRivet
-
320008 Washer A5,3Washer A5,3
-
4549882 Retainer cableRetainer cable
-
540177 Screw B4,8 x 16Screw B4,8 x 16
-
6415043300 SpringSpring
-
7415058300 RingRing
-
836036 RivetRivet
-
9517302582 Moulding Head LampMoulding Head Lamp
-
10517302003 Windshield supportWindshield support
-
11570023800 LatchLatch
-
1220117 WasherWasher
-
13517302631 Hinge halfHinge half
-
1433200 Elastic flanged nut M6Elastic flanged nut M6
-
1540381 Socket head screw M6 x 20Socket head screw M6 x 20
-
1620009 Washer A6,4Washer A6,4
-
1733010 Elastic stop nut M6Elastic stop nut M6
-
1820003 Washer A6,4Washer A6,4
-
19517302179 BushingBushing
-
2040003 Hex. screw M6 x 35Hex. screw M6 x 35
-
21243141640 Screw, Plastite M4.8 x 16Screw, Plastite M4.8 x 16
-
22517302836 Air intake plateAir intake plate
-
23605350268 FilterFilter
-
24517302025 L.H. Grill-air intakeL.H. Grill-air intake
-
25517302024 R.H. Grill-air intakeR.H. Grill-air intake
-
26605450267 FilterFilter
-
275448263 R.H. Support plateR.H. Support plate
-
275448264 L.H. Support plateL.H. Support plate
-
2840030 Hex. screw M6 x 20Hex. screw M6 x 20
-
29517302953 ConsolConsol
-
30517302043 Plastic nutPlastic nut
-
315447116 SealSeal
-
32517302005 R.H. ConsolR.H. Consol
-
33517302006 L.H. ConsolL.H. Consol
-
34732600030 ScrewScrew
-
3520117 WasherWasher
-
36517302129 Rope guideRope guide
-
3736002 RivetRivet
-
38517302286 Rubber stopperRubber stopper
-
3936036 RivetRivet
-
4020008 Washer A5,3Washer A5,3
-
41605151398 Hood, pre ass'y, Viper Red. Includes 41 to 43Hood, pre ass'y, Viper Red. Includes 41 to 43
-
425346887 L.H. Front grillL.H. Front grill
-
425346888 R.H. Front grillR.H. Front grill
-
435346889 L.H. Rear grillL.H. Rear grill
-
44414631900 Heat protectorHeat protector
-
45517302785 ClampClamp
-
465146770 Windshield, highWindshield, high
