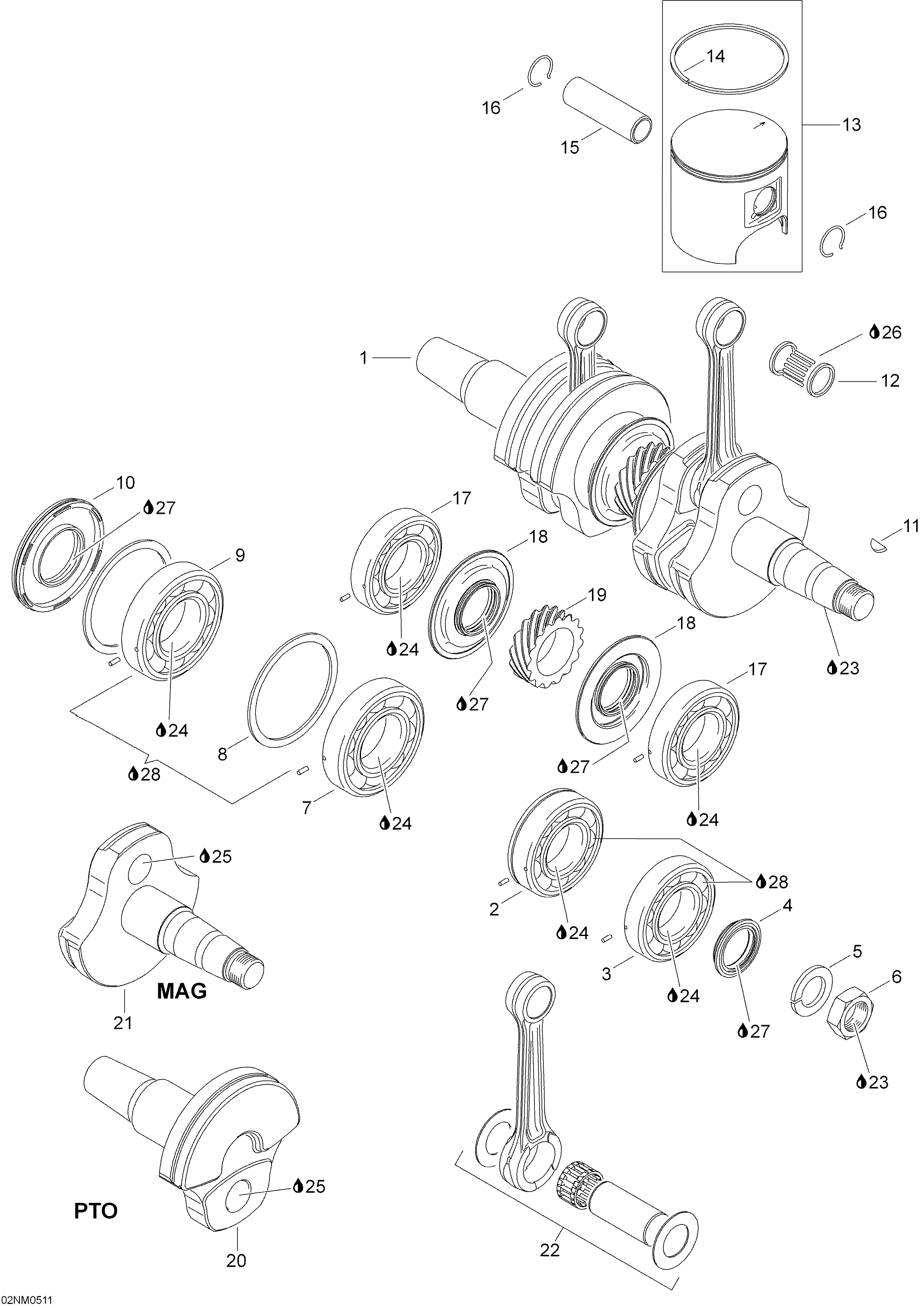

01- Crankshaft для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1420889675 Crankshaft assy. Includes 1 to 10Crankshaft assy. Includes 1 to 10
-
2420832638 Ball bearing assyBall bearing assy
-
3420832575 Bearing 6207 assyBearing 6207 assy
-
4420931792 Oil sealOil seal
-
5420945759 Lock washerLock washer
-
6420842230 Nut M22Nut M22
-
7420832608 Bearing 6208 assyBearing 6208 assy
-
8420926190 Retaining diskRetaining disk
-
9420832700 Bearing 6208 assyBearing 6208 assy
-
10420931285 Oil sealOil seal
-
11420246015 Woodruff-keyWoodruff-key
-
12420832428 Needle cageNeedle cage
-
13420889456 Piston 81.87 mm. Includes 13 to 14Piston 81.87 mm. Includes 13 to 14
-
14420815360 Semi trapez ringSemi trapez ring
-
15420916371 Piston pinPiston pin
-
16420845106 CirclipCirclip
-
17420832575 Ball bearing assyBall bearing assy
-
18420931455 Oil sealOil seal
-
19420834355 Central gear 15TCentral gear 15T
-
20420819032 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
21420819061 Crankshaft MAG. sideCrankshaft MAG. side
-
22420684080 Rod repair kit MAG.-sideRod repair kit MAG.-side
-
22420684081 Rod repair kit P.T.O.-sideRod repair kit P.T.O.-side
-
23420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
24420297434 Loctite anti seizeLoctite anti seize
-
25420897340 Loctite 14486, 250mlLoctite 14486, 250ml
-
27420899271 Klueber petamoKlueber petamo
-
28293550021 Isoflex grease, 50gIsoflex grease, 50g
