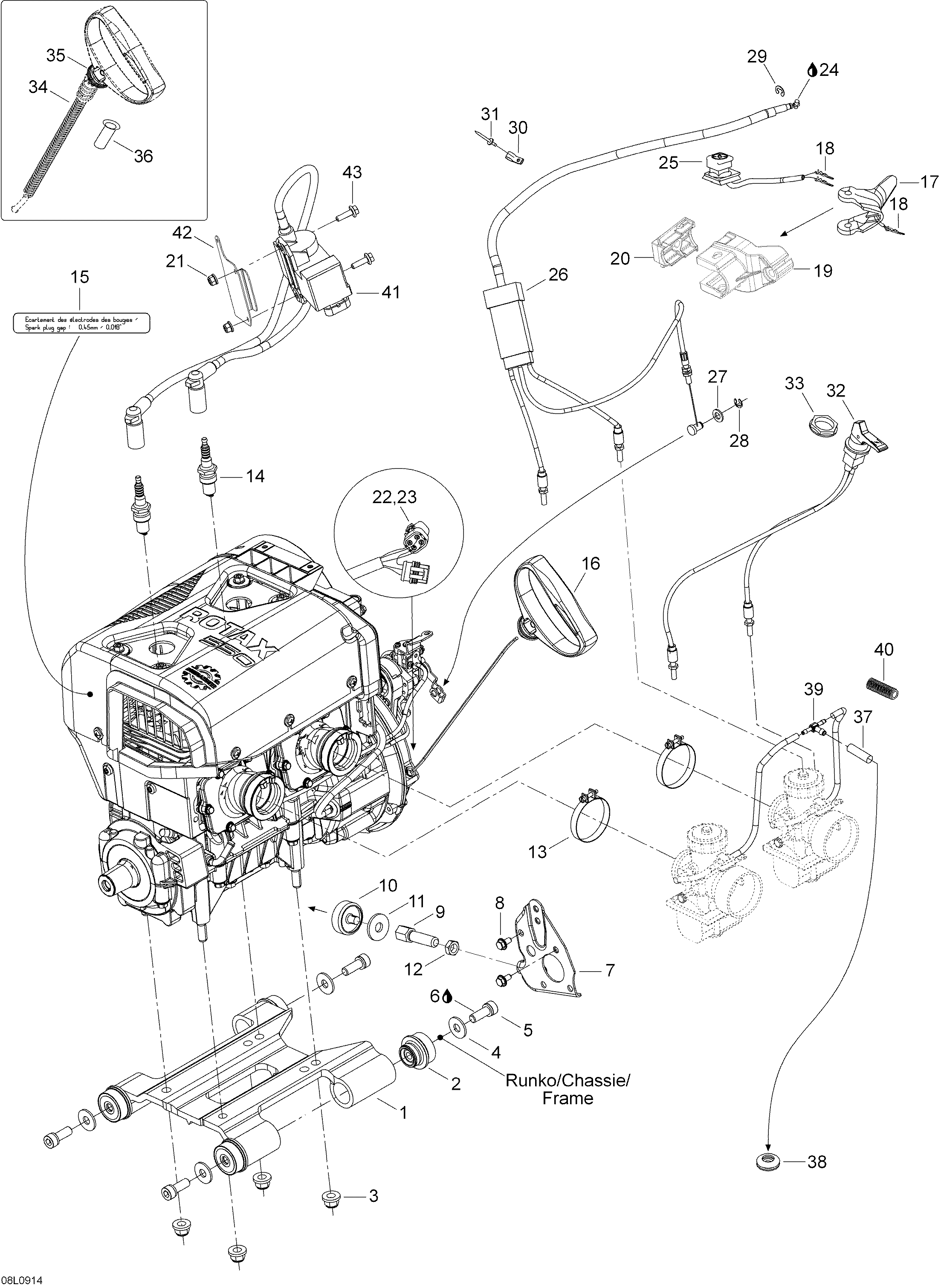

01- Engine And Engine Support для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1512060034 Engine support ass'y. Includes 1 to 2Engine support ass'y. Includes 1 to 2
-
2512059691 RubberRubber
-
333074 Elastic flanged nut M10Elastic flanged nut M10
-
4506151251 WasherWasher
-
5205002544 Screw M10 x 25Screw M10 x 25
-
6293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
7512059910 PlatePlate
-
840327 Hex. screw M6 x 12Hex. screw M6 x 12
-
9512058800 Stopper screwStopper screw
-
10512059610 StopperStopper
-
1120023 Washer M10Washer M10
-
1233218 Jam nut M12Jam nut M12
-
13512059834 ClampClamp
-
14414961100 Spark plug , BR 9 ESSpark plug , BR 9 ES
-
15516000986 Decal, spark plugDecal, spark plug
-
16572084400 GripGrip
-
17512059624 Throttle handle. Includes 17 to 18Throttle handle. Includes 17 to 18
-
18605642628 ConnectorConnector
-
19512060197 Throttle handle housing lowerThrottle handle housing lower
-
20512060198 Throttle handle housing upperThrottle handle housing upper
-
2133200 Elastic flanged nut M6Elastic flanged nut M6
-
22278001473 Male connector housingMale connector housing
-
23278001474 LockLock
-
24293550004 Dielectric-rasva, 150gDielectric-rasva, 150g
-
25605355686 Switch killSwitch kill
-
26512059913 Throttle cableThrottle cable
-
27234081100 WasherWasher
-
2831035 CirclipCirclip
-
2931038 CirclipCirclip
-
3027092 ClampClamp
-
3136037 RivetRivet
-
32512059441 Choke cable. Includes 32 to 33Choke cable. Includes 32 to 33
-
33512059094 Plastic nutPlastic nut
-
34512059964 Narun ohjainNarun ohjain
-
35415100800 LapivientikumiLapivientikumi
-
36512059536 Holkki, narunohjaimeenHolkki, narunohjaimeen
-
3739038 HoseHose
-
38414580600 GrommetGrommet
-
39572045500 T-fittingT-fitting
-
4028012 TubingTubing
-
41512060040 Electronic box ass'yElectronic box ass'y
-
42605354186 BracketBracket
-
4340030 Screw M6 x 20Screw M6 x 20
