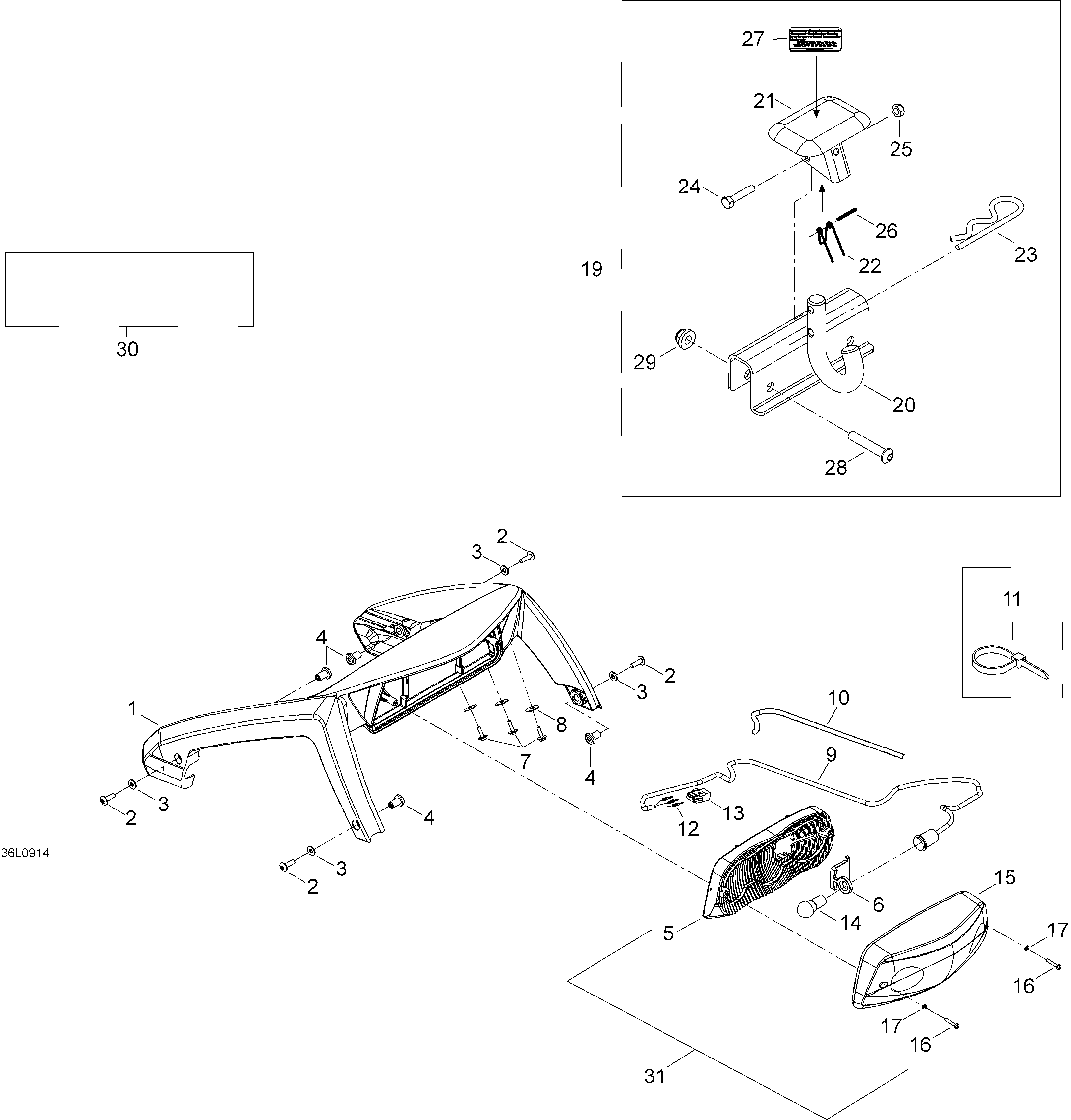

09- Luggage Rack для BRP Lynx Xtrim 550 - 2009
![](/wa-data/public/shop/sheme/bombardier/lynx/80b622c9-2394-422c-b47e-cbfc381727de.png)
-
№АртикулНазвание
-
1511000425 Luggage rackLuggage rack
-
2250000168 ScrewScrew
-
3250200039 WasherWasher
-
4511000398 InsertInsert
-
5510004442 ReflectorReflector
-
6511000431 Rubber damperRubber damper
-
740847 Wronic-screw 4,2 x 13Wronic-screw 4,2 x 13
-
820117 WasherWasher
-
9515175852 AdapterAdapter
-
10605353992 TubingTubing
-
11605627000 Tie-rapTie-rap
-
12605642628 Male connectorMale connector
-
1342271 Male connector housing (6 circuits)Male connector housing (6 circuits)
-
14520000758 Tail lamp bulpTail lamp bulp
-
15861509300 LensLens
-
16209632580 Screw M 3.9 x 25Screw M 3.9 x 25
-
17414516400 WasherWasher
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
21511000514 PawlPawl
-
22517152800 SpringSpring
-
23114045200 Hair pinHair pin
-
24207063544 Screw M6 x 30Screw M6 x 30
-
25232561414 Elastic stop nut M6Elastic stop nut M6
-
26732804000 Spring pinSpring pin
-
27516003037 Security labelSecurity label
-
2840008 Screw M8 x 45Screw M8 x 45
-
2933201 Elastic flanged nut M6Elastic flanged nut M6
-
30605255828 Tunnel cover, centerTunnel cover, center
-
31861509300 Rearlight compl.Rearlight compl.
