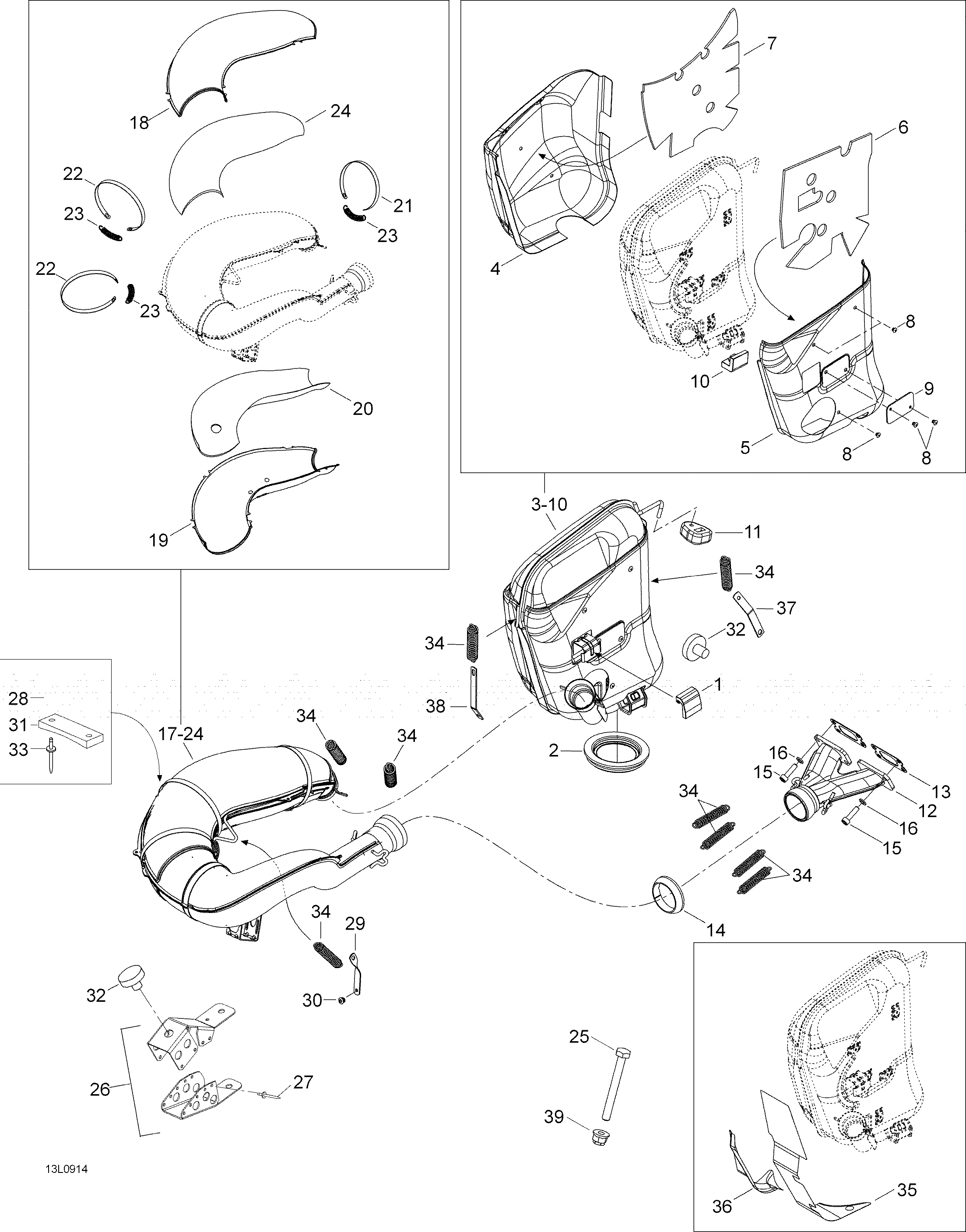

01- Exhaust System для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1514053372 Upper stopperUpper stopper
-
2514054240 Exhaust grommetExhaust grommet
-
3514054099 Muffler ass'y. Includes 3 to 10Muffler ass'y. Includes 3 to 10
-
4514054100 R.H. DeflectorR.H. Deflector
-
5514053843 Heat deflector L.H.Heat deflector L.H.
-
6514053844 Insulating wool L.H.Insulating wool L.H.
-
7514053947 Insulating wool R.H.Insulating wool R.H.
-
8390910000 RivetRivet
-
9514053429 ReinforcementReinforcement
-
10514054223 Lower stopperLower stopper
-
11514052704 Rubber bumperRubber bumper
-
12420673065 Exhaust manifold. Includes 7 to 9Exhaust manifold. Includes 7 to 9
-
13420831849 GasketGasket
-
14514053644 Exhaust gasketExhaust gasket
-
1540135 Socket head screw M8 x 30Socket head screw M8 x 30
-
1620014 Lock washer A8Lock washer A8
-
17514053848 Tuned pipe ass'y. Includes 17 to 24Tuned pipe ass'y. Includes 17 to 24
-
18514053852 Rear upper half-enveloppeRear upper half-enveloppe
-
19514053853 Rear lower half-enveloppeRear lower half-enveloppe
-
20514053854 Lower insulating woolLower insulating wool
-
21514053501 Retaining strapRetaining strap
-
22514053512 Retaining strapRetaining strap
-
23514053643 SpringSpring
-
24514053987 Upper insulating woolUpper insulating wool
-
2540007 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
26605255393 Lower bracket ass'y. Includes 26 to 27Lower bracket ass'y. Includes 26 to 27
-
2736108 RivetRivet
-
28605454111 Bracket tune pipeBracket tune pipe
-
29605451629 Spring bracketSpring bracket
-
3036489 RivetRivet
-
31514053352 Rubber bumperRubber bumper
-
32514053654 Side stopperSide stopper
-
3336037 RivetRivet
-
34415107100 SpringSpring
-
35514053560 Reflective sheetReflective sheet
-
36514053622 Reflective sheetReflective sheet
-
37514053725 Spring bracketSpring bracket
-
38514053393 Spring bracketSpring bracket
-
3933201 Elastic stop nut M8Elastic stop nut M8
