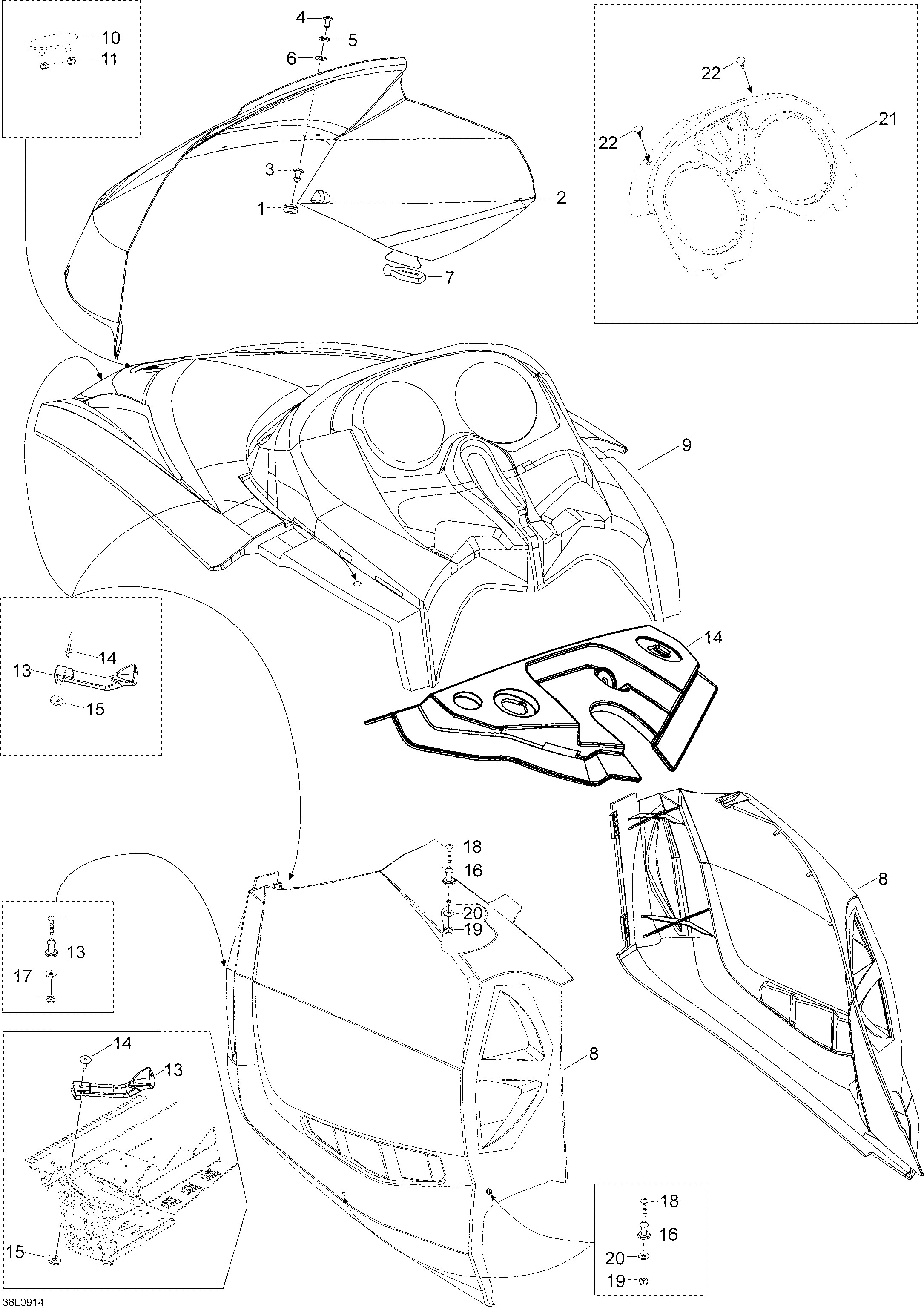

09- Hood And Console для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1517302841 GrommetGrommet
-
2605154485 WindscreenWindscreen
-
3517303439 KnobKnob
-
4250000146 ScrewScrew
-
5250200025 WasherWasher
-
6250200024 WasherWasher
-
7570023800 LatchLatch
-
8605155341 R.H. Panel ass'y, blackR.H. Panel ass'y, black
-
8605155666 L.H. Panel ass'y, blackL.H. Panel ass'y, black
-
9605355661 Hood/console, RedHood/console, Red
-
10605455262 Logo spacerLogo spacer
-
1133200 Elastic flanged nut M6Elastic flanged nut M6
-
12414644300 Dart, windshieldDart, windshield
-
135342952 LatchLatch
-
1436037 RivetRivet
-
1520008 Washer A5,3Washer A5,3
-
16605449087 Counter rollerCounter roller
-
17605355682 Instrument panelInstrument panel
-
1840168 Screw M4 x 25Screw M4 x 25
-
1933008 Elastic stop nut M4Elastic stop nut M4
-
2020037 Washer A4,3Washer A4,3
-
21605253398 Instrument panelInstrument panel
-
22732600030 ScrewScrew
