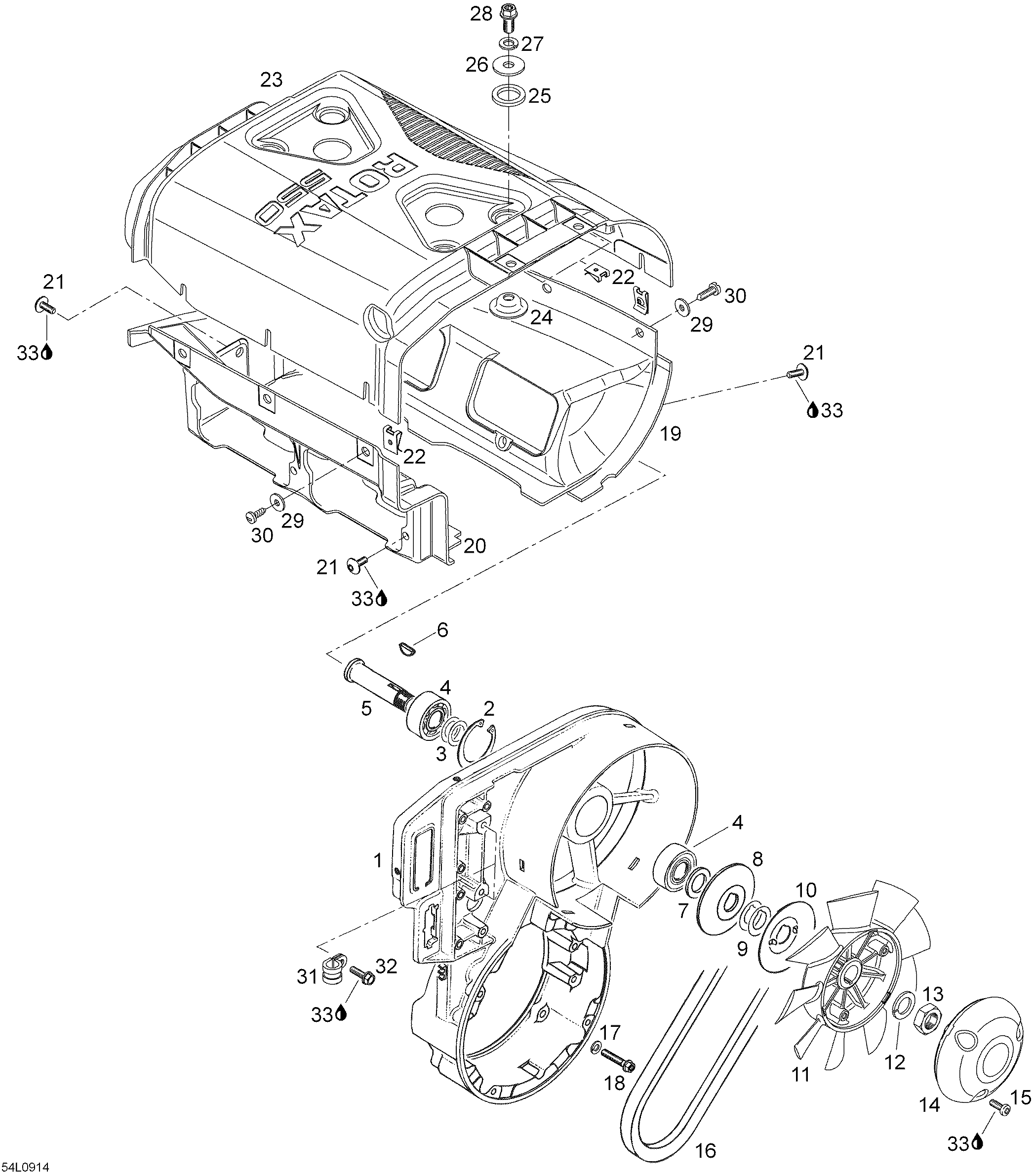

01- Fan & Fanhousing для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1420912203 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4420832161 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
10420980523 Protection washerProtection washer
-
11420866294 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 NutNut
-
14420975900 Fan coverFan cover
-
15420841971 Screw 5.5 x 16Screw 5.5 x 16
-
16420980517 V-beltV-belt
-
17420945751 Spring washerSpring washer
-
18420440642 Torx-screw M6 x 30Torx-screw M6 x 30
-
19420811392 Lower cowl (exhaust)Lower cowl (exhaust)
-
20420812600 Lower cowl, intake sideLower cowl, intake side
-
21420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
22417300005 Sping nutSping nut
-
23420812596 Upper caseUpper case
-
24420827817 Cup washerCup washer
-
25420960865 Rubber washerRubber washer
-
26420227935 WasherWasher
-
27420945752 Lock washerLock washer
-
28420440852 Screw M8 x 16Screw M8 x 16
-
29420926185 WasherWasher
-
30417300006 Selftapping screwSelftapping screw
-
31420851250 Wire clampWire clamp
-
32420941925 Taptite screw M5 x 20Taptite screw M5 x 20
-
33293800060 Loctite 243, 10mlLoctite 243, 10ml
