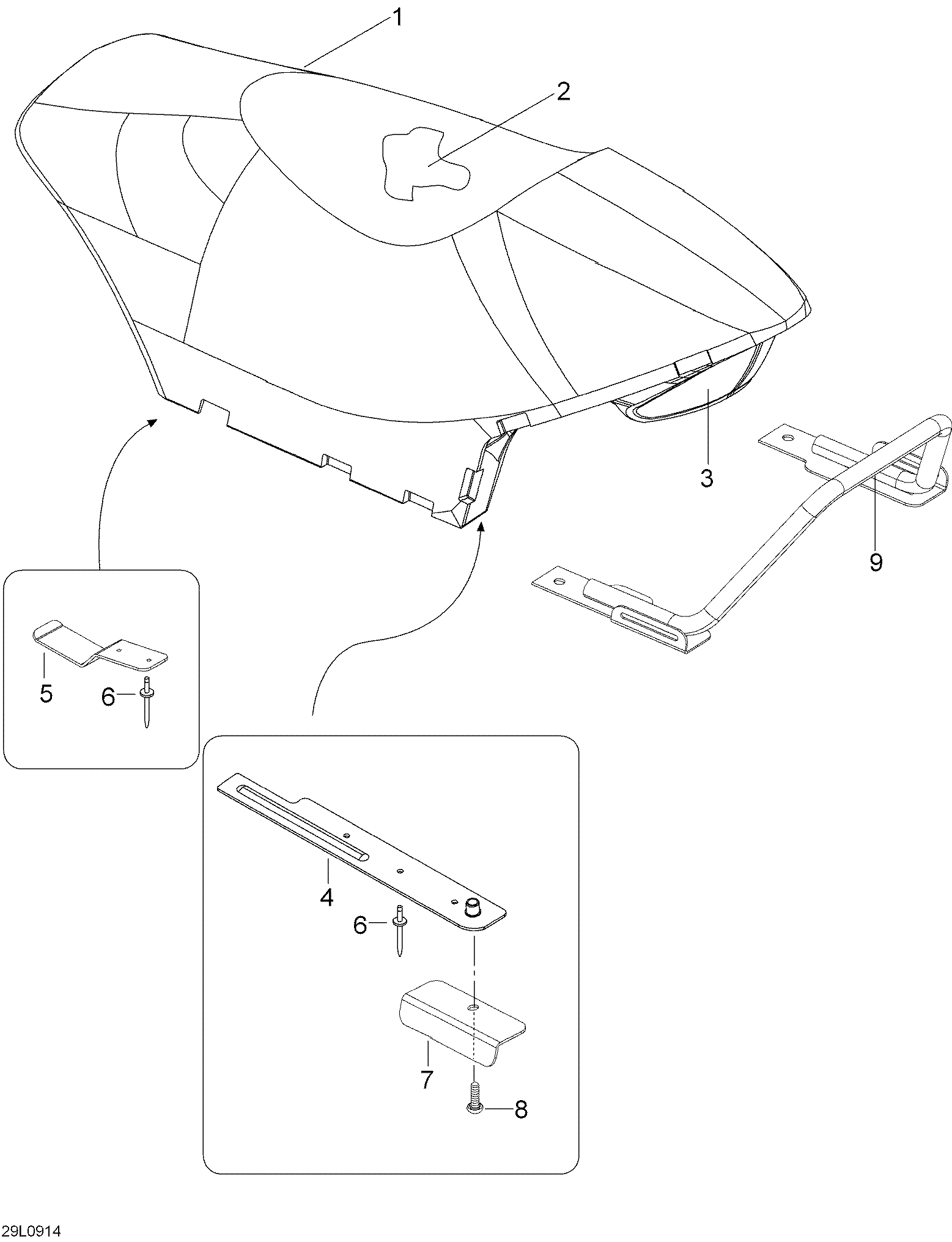

09- Seat для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1605255622 CoverCover
-
2605253728 FoamFoam
-
3605252229 Seat baseSeat base
-
4605355222 R.H. BracketR.H. Bracket
-
4605355223 L.H. BracketL.H. Bracket
-
5605354979 SupportSupport
-
636036 RivetRivet
-
7605452935 Support plateSupport plate
-
840386 Screw M8 x 30Screw M8 x 30
-
9605355640 Seat supportSeat support
