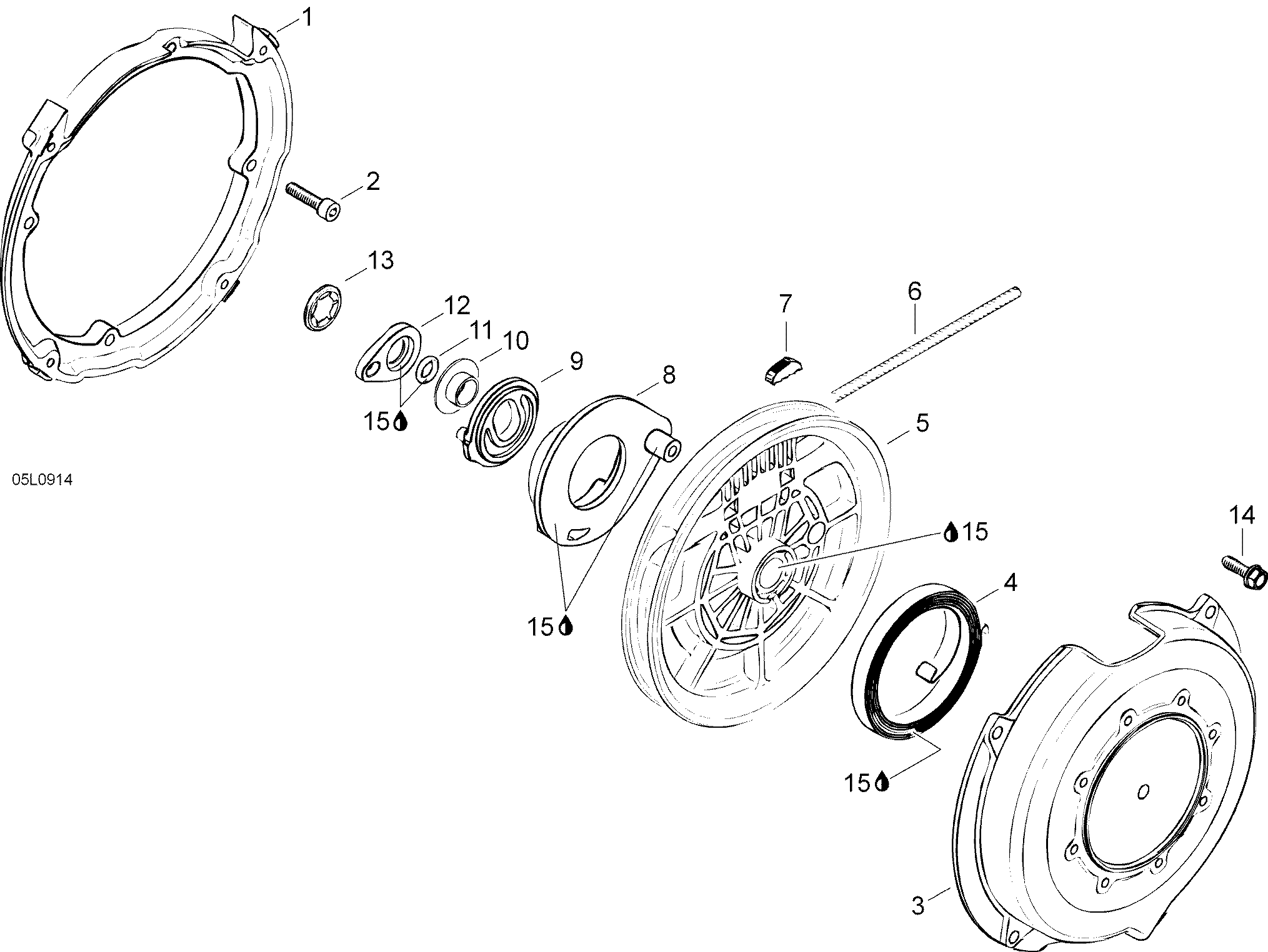

04- Rewind Starter для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1420810952 Connecting flangeConnecting flange
-
2420440202 Torx screw M6 x 20Torx screw M6 x 20
-
-420890170 Rewind starter. Includes 3 to 12Rewind starter. Includes 3 to 12
-
3420890170 Starter housingStarter housing
-
4420939115 Spring ass'ySpring ass'y
-
5420852480 Rope sheaveRope sheave
-
6412500200 Starter ropeStarter rope
-
7420852070 Pawl keyPawl key
-
8420852296 PawlPawl
-
9420852308 Pawl lockPawl lock
-
10420847926 Stage sleeveStage sleeve
-
11420250400 O-ringO-ring
-
12420852520 Lock leverLock lever
-
13420845560 Lock elementLock element
-
14420941250 Tapping screw M6 x 20Tapping screw M6 x 20
-
15293550004 Molykote PG 54, 10 gMolykote PG 54, 10 g
