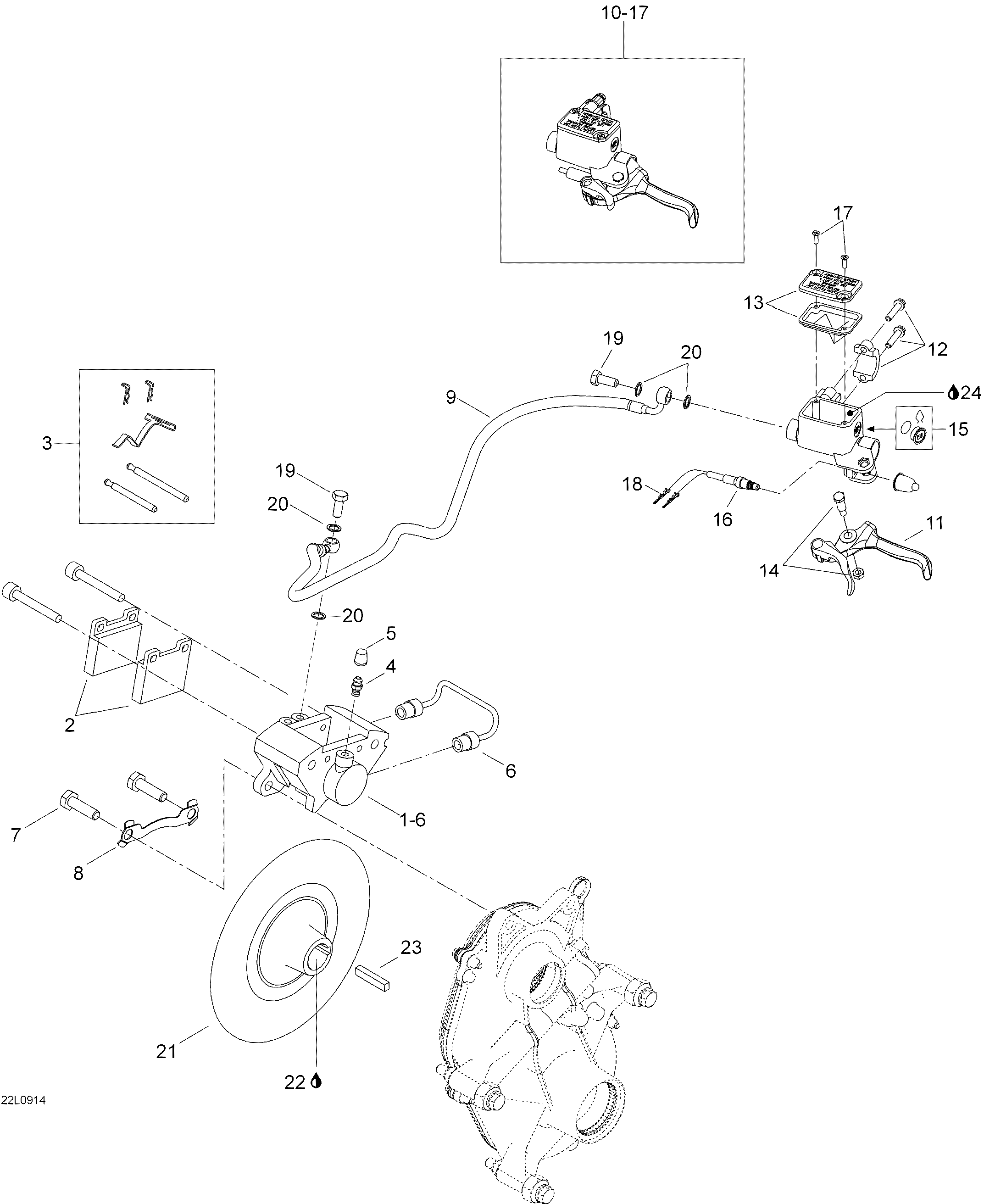

06- Brake для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1507032409 Caliber ass'y. Includes 1 to 6Caliber ass'y. Includes 1 to 6
-
2415129172 Brake lining kitBrake lining kit
-
3415128865 Kit (pins,retainers,spring)Kit (pins,retainers,spring)
-
4414989800 Screw-bleederScrew-bleeder
-
6414989900 TubeTube
-
740049 Hex. screw M10 x 35Hex. screw M10 x 35
-
8507032316 Locking tabLocking tab
-
9507032384 HoseHose
-
10507032408 Master cylinder ass'y. Includes 10 to 17Master cylinder ass'y. Includes 10 to 17
-
11507032423 Short brake leverShort brake lever
-
12507032477 Clamp assyClamp assy
-
13415029900 CoverCover
-
14415030000 Pin ass'yPin ass'y
-
15414990600 WindowWindow
-
16507032366 Microswitch ass'yMicroswitch ass'y
-
17507032477 ScrewScrew
-
18605642628 Male terminalMale terminal
-
19414920500 Banjo boltBanjo bolt
-
20414920600 WasherWasher
-
21507032458 Brake diskBrake disk
-
22293800070 Loctite 767, 8ozLoctite 767, 8oz
-
23507021300 KeyKey
-
2432665 Brake fluidBrake fluid
