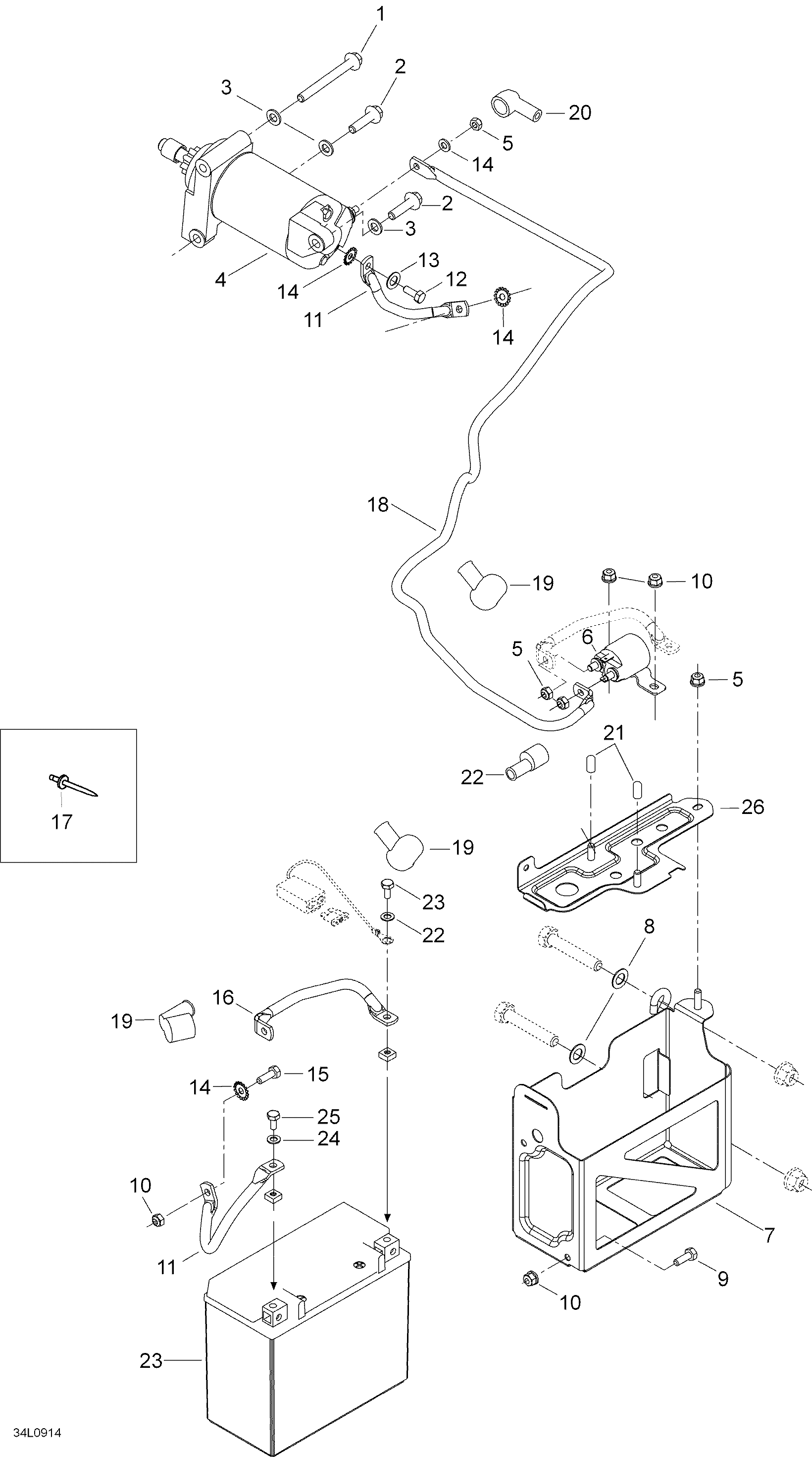

10- Electrical System для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1207588544 Hex. screw M8 x 85Hex. screw M8 x 85
-
2207583044 Hex. screw M8 x 30Hex. screw M8 x 30
-
3250200008 WasherWasher
-
4515176585 Electric starter assyElectric starter assy
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6515176011 Relay-starterRelay-starter
-
7515176423 Battery supportBattery support
-
8605620000 Washer A10,5Washer A10,5
-
940866 Locking screw M6 x 20Locking screw M6 x 20
-
1033200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
11515175749 Ground wireGround wire
-
12207361644 ScrewScrew
-
1320003 Washer A6,4Washer A6,4
-
1420017 Lock washer serrated M6Lock washer serrated M6
-
1540030 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
16515175904 Battery wireBattery wire
-
1736491 RivetRivet
-
18515175905 Battery wireBattery wire
-
19570151000 Protector capProtector cap
-
20278001771 Protector capProtector cap
-
21570064200 CapCap
-
22515175919 CapCap
-
23410301203 Battery. Includes 21 to 23Battery. Includes 21 to 23
-
24391302100 WasherWasher
-
25207161644 Screw M6x16Screw M6x16
-
26515175735 Battery stripBattery strip
-
25515176141 PlugPlug
