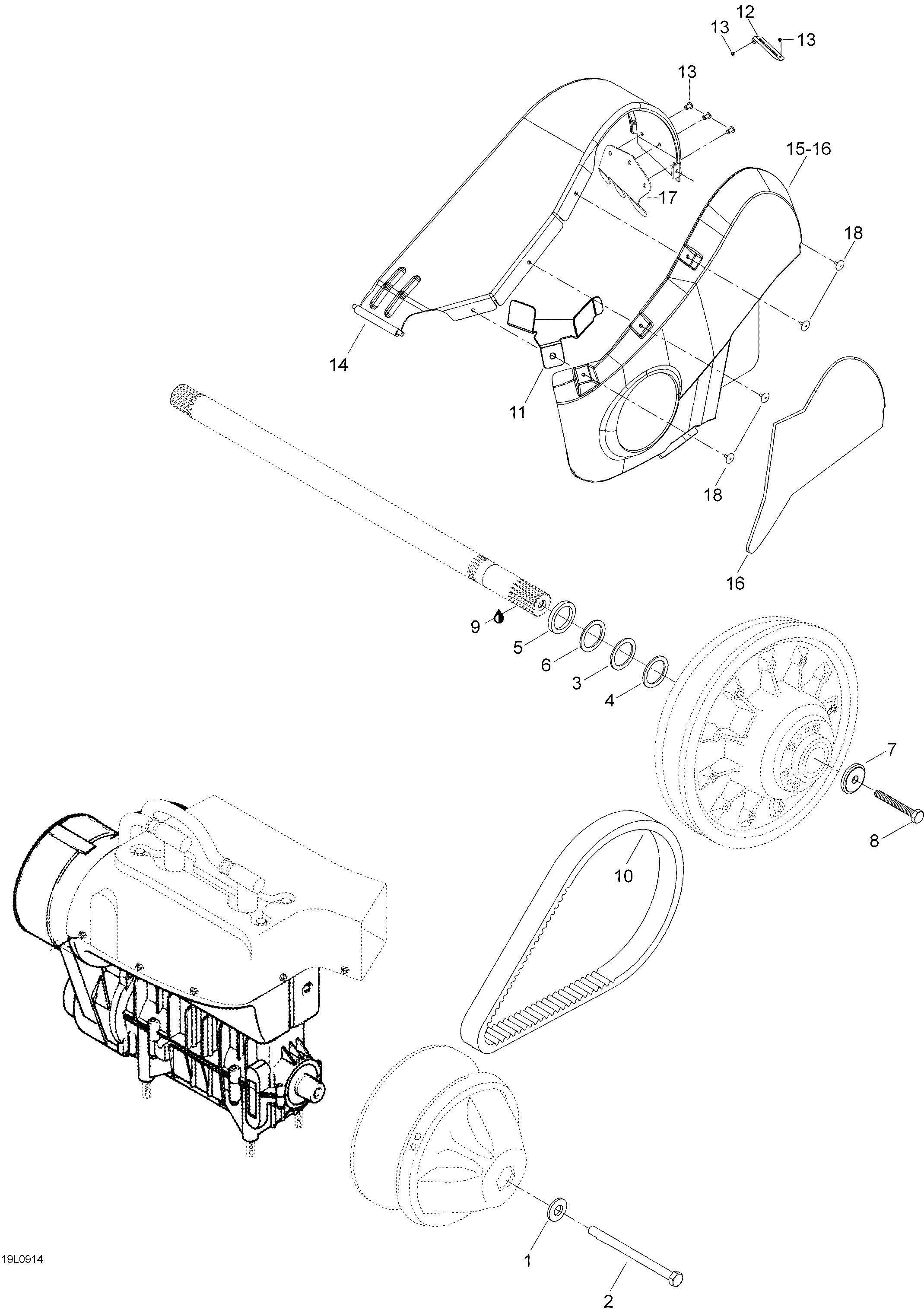

05- Pulley System для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
120090 WasherWasher
-
2417113800 BoltBolt
-
3417300252 SpacerSpacer
-
4417300265 SpacerSpacer
-
5504149100 SleeveSleeve
-
6504112000 ShimShim
-
7517302322 WasherWasher
-
840089 Hex. screw M8 x 75Hex. screw M8 x 75
-
9293800070 Loctite 767, 8ozLoctite 767, 8oz
-
10415060600 Drive beltDrive belt
-
11605353789 Support, air intake silencerSupport, air intake silencer
-
12518323105 PlatePlate
-
1336108 RivetRivet
-
14417300269 Belt quardBelt quard
-
15417300301 Side protector ass'y. Includes 15 to 16Side protector ass'y. Includes 15 to 16
-
16417300301 FoamFoam
-
17605453799 BracketBracket
-
1836036 RivetRivet
