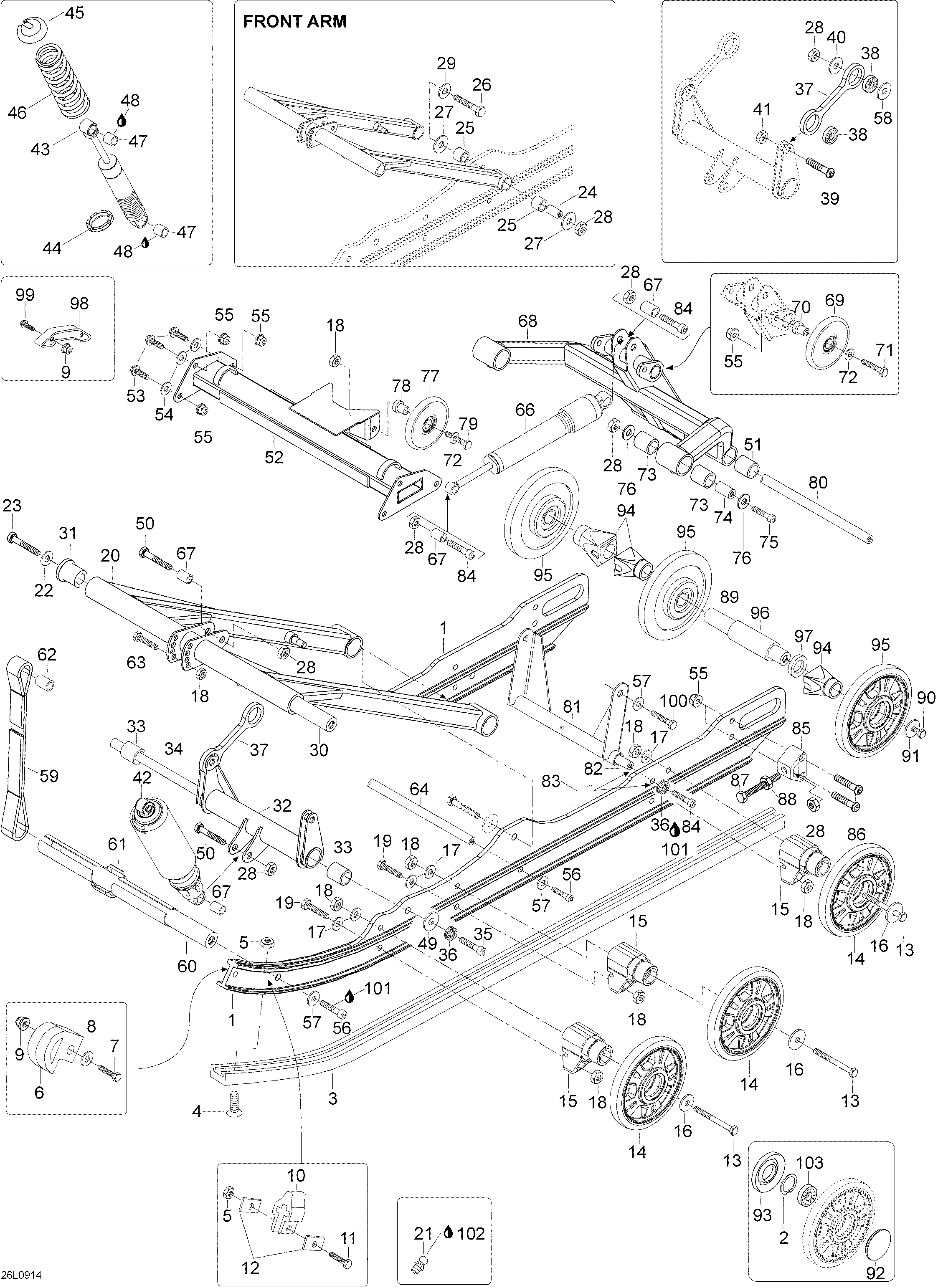

08- Rear Suspension для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1605355361 RunnerRunner
-
2371901700 CirclipCirclip
-
3605355362 Slider shoeSlider shoe
-
440845 Socket head screw M6 x 25Socket head screw M6 x 25
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6605348954 Runner protectorRunner protector
-
740031 Hex. screw M6 x 25Hex. screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
105442328 Rubber stopperRubber stopper
-
1140032 Hex. screw M6 x 30Hex. screw M6 x 30
-
12548470 Support plateSupport plate
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503191313 Idler wheel, 141/Full MoonIdler wheel, 141/Full Moon
-
15605451906 SupportSupport
-
16503183100 Aluslevy M8 hardenedAluslevy M8 hardened
-
1720004 Aluslevy A8.4Aluslevy A8.4
-
18232581414 Elastic stop nut M8Elastic stop nut M8
-
1940037 Hex. screw M8 x 25Hex. screw M8 x 25
-
20605354944 Front armFront arm
-
2134011 Grease nippleGrease nipple
-
2220090 WasherWasher
-
2340243 Hex. screw M12 x 60Hex. screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 CushionCushion
-
2640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
27605355801 WasherWasher
-
2833012 Elastic stop nut M10Elastic stop nut M10
-
29503183300 Lock washerLock washer
-
30605355981 ShaftShaft
-
3131024 CushionCushion
-
32605355772 Front AarmFront Aarm
-
3331024 CushionCushion
-
34605355800 ShaftShaft
-
3540852 Socket head screw M10 x 55Socket head screw M10 x 55
-
3620068 Lock washer D10Lock washer D10
-
37605254159 Link plateLink plate
-
38605631003 Ball bearingBall bearing
-
39605640021 Socket head screw M10 x 25Socket head screw M10 x 25
-
4020012 WasherWasher
-
4133055 Elastic stop nut M10Elastic stop nut M10
-
43605623040 Shock, front armShock, front arm
-
43605623041 Shock, rear armShock, rear arm
-
44230078 CamCam
-
45230076 Spring stopperSpring stopper
-
46605625015 Spring, front armSpring, front arm
-
46605625014 Spring, rear armSpring, rear arm
-
4731094 CushionCushion
-
4832161 Loctite 641, 50mlLoctite 641, 50ml
-
49512056700 Lock washerLock washer
-
5040016 Hex. screw M10 x 45Hex. screw M10 x 45
-
5131024 CushionCushion
-
52605354961 Upper armUpper arm
-
5340037 Screw M8 x 25Screw M8 x 25
-
54605620002 Washer A8,4Washer A8,4
-
5533201 Elastic flanged nut M8Elastic flanged nut M8
-
5640136 Socket head screw M10 x 50Socket head screw M10 x 50
-
5720005 Washer M10Washer M10
-
5825004 WasherWasher
-
59605355116 Stopper strapStopper strap
-
60605353958 ShaftShaft
-
61605355096 LimiterLimiter
-
62605455335 SleeveSleeve
-
6340008 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
645343471 ShaftShaft
-
6540014 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
675446652 SleeveSleeve
-
68605354962 Rear armRear arm
-
6946100 Idler wheel 133/blackIdler wheel 133/black
-
70605454461 SleeveSleeve
-
7140008 Screw M8 x 45Screw M8 x 45
-
7220077 Washer A8,4Washer A8,4
-
7331065 CushionCushion
-
74605354157 ShaftShaft
-
7540254 Socket head screw M10 x 65Socket head screw M10 x 65
-
7620011 Washer A10.5Washer A10.5
-
77572043500 Support wheelSupport wheel
-
78605454167 SleeveSleeve
-
79207083544 Screw M8 x 35Screw M8 x 35
-
80605355118 ShaftShaft
-
81605353953 Pivot armPivot arm
-
82605355119 ShaftShaft
-
835446786 Sopport plateSopport plate
-
8440852 Socket head screw M10 x 55Socket head screw M10 x 55
-
855341633 TensionerTensioner
-
8640392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8740239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8833004 Nut M10Nut M10
-
89503190429 ShaftShaft
-
9040050 Hex. screw M10 x 35Hex. screw M10 x 35
-
91503190439 Aluslevy M10 hardenedAluslevy M10 hardened
-
92570063600 CapCap
-
93503190434 Labyrint sleeveLabyrint sleeve
-
94503190428 SpacerSpacer
-
95503191110 Idler wheel 165/Full MoonIdler wheel 165/Full Moon
-
96503190430 SleeveSleeve
-
97503190432 SleeveSleeve
-
985343191 Slide partSlide part
-
9940064 Locking screw M6 x 40Locking screw M6 x 40
-
10040134 Socket head screw m10 x 45Socket head screw m10 x 45
-
101293800005 Loctite 271, 10mlLoctite 271, 10ml
-
102293550033 Synthetic grease, 400Synthetic grease, 400
-
103293350055 Ball bearingBall bearing
