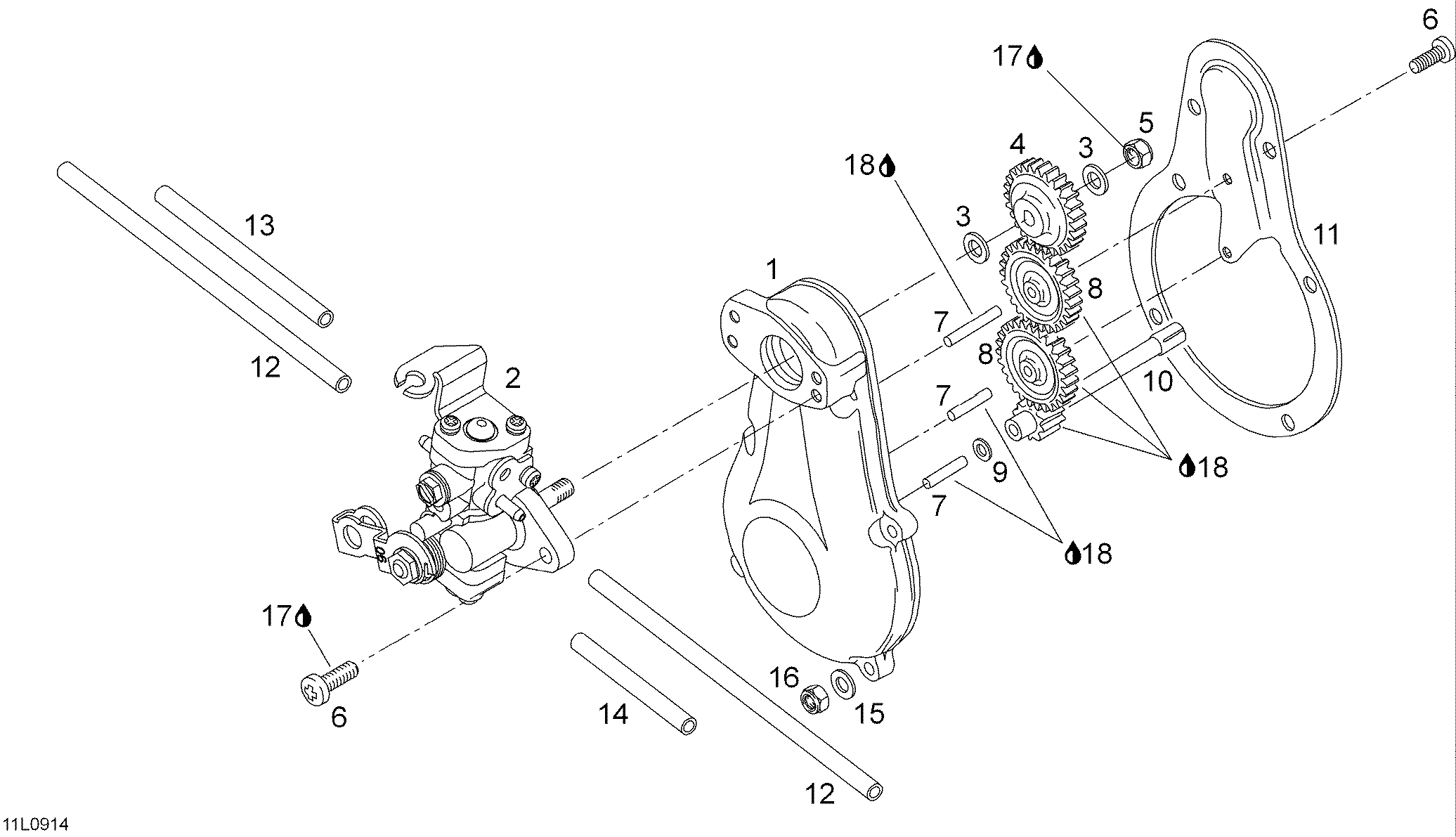

02- Oil Pump для BRP Lynx Xtrim 550 - 2009
-
№АртикулНазвание
-
1420810110 Mounting flangeMounting flange
-
2420889073 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841971 ScrewScrew
-
7420232420 PinPin
-
8420834210 Gear, Z-28Gear, Z-28
-
9420244073 WasherWasher
-
10420935970 Gear Z-9Gear Z-9
-
11420810122 Pump mounting coverPump mounting cover
-
12414413800 Oil line, 380mmOil line, 380mm
-
13420960726 Isolation hose, 260mmIsolation hose, 260mm
-
14276000048 Isolation hose, 150mmIsolation hose, 150mm
-
15420827800 WasherWasher
-
16420942025 Lock nut, M5Lock nut, M5
-
17293800060 Loctite 243, 10mlLoctite 243, 10ml
-
18413707000 Molykote 111Molykote 111
