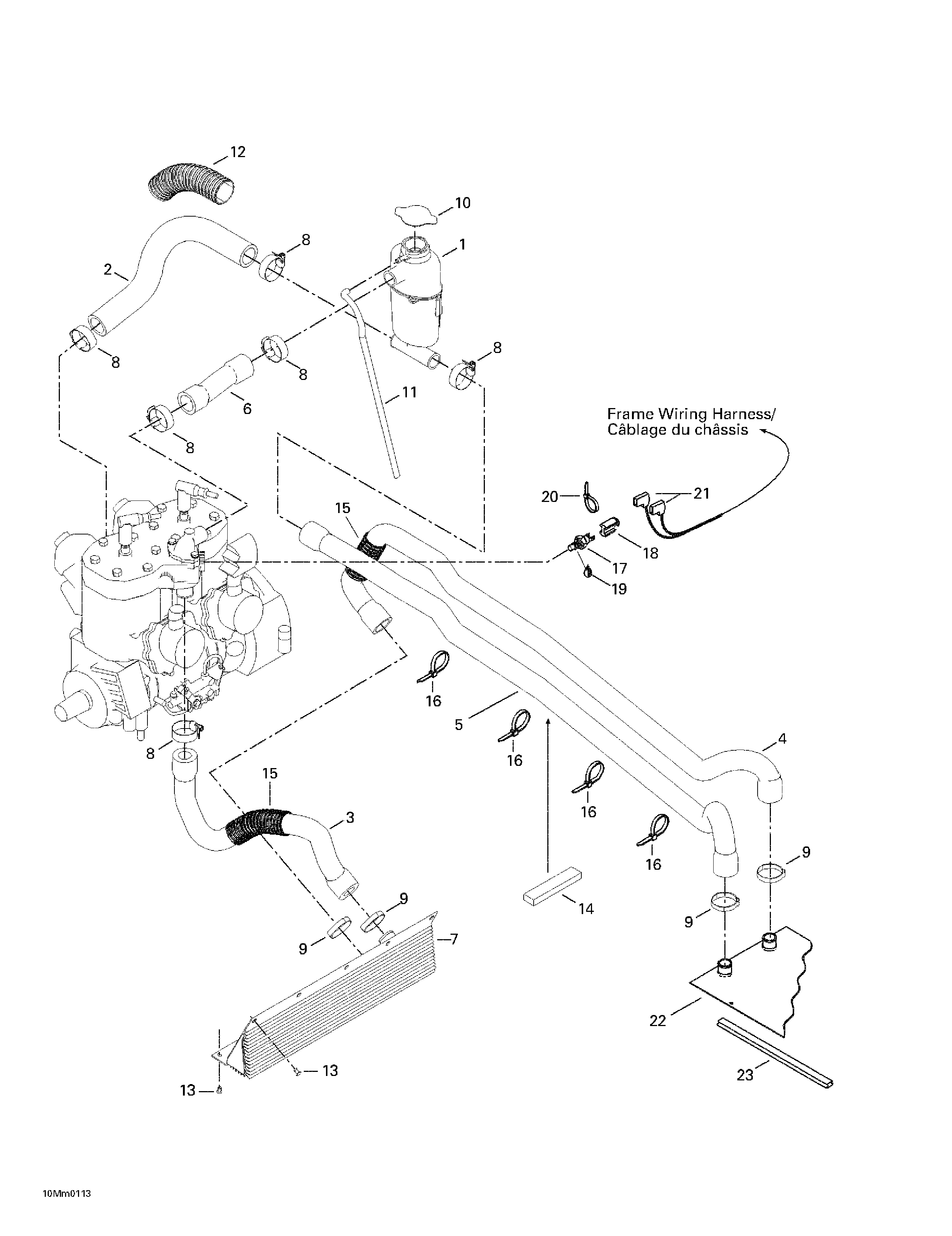

01- Cooling System для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1509000114 Tank-CoolantTank-Coolant
-
2509000001 Engine Inlet HoseEngine Inlet Hose
-
3509000046 Engine Outlet HoseEngine Outlet Hose
-
4509000003 Radiator Inlet HoseRadiator Inlet Hose
-
5509000004 Radiator Outlet HoseRadiator Outlet Hose
-
6509000112 Deviation HoseDeviation Hose
-
7509000070 Front RadiatorFront Radiator
-
8408800400 Tridon Gear ClampTridon Gear Clamp
-
9509000045 Oetiker Gear ClampOetiker Gear Clamp
-
10414684700 Pressure CapPressure Cap
-
11415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
12415084700 Protective ShieldProtective Shield
-
13390402200 Pop Rivet 3/16Pop Rivet 3/16
-
14293200003 SealSeal
-
15409902200 Tubing 25 mmTubing 25 mm
-
16293750008 Tie Rap 350 mmTie Rap 350 mm
-
17512047000 Temperature SensorTemperature Sensor
-
18515175297 Connector PlugConnector Plug
-
19293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
20293750002 Tie Rap 130 mmTie Rap 130 mm
-
21409010300 Female TerminalFemale Terminal
-
22518322413 Rear Radiator (H.M., H.M.X). Summit 700. Summit 800.Rear Radiator (H.M., H.M.X). Summit 700. Summit 800.
-
22518322354 Rear Radiator (STD, X). Includes 22 - 23.Rear Radiator (STD, X). Includes 22 - 23.
-
23518322360 Radiator Protector (STD, X)Radiator Protector (STD, X)
-
22517296310 Rear Radiator (Foothill). Includes 22 - 23. Summit 800.Rear Radiator (Foothill). Includes 22 - 23. Summit 800.
-
23518321656 Radiator Protector (Foothill). Summit 800.Radiator Protector (Foothill). Summit 800.
