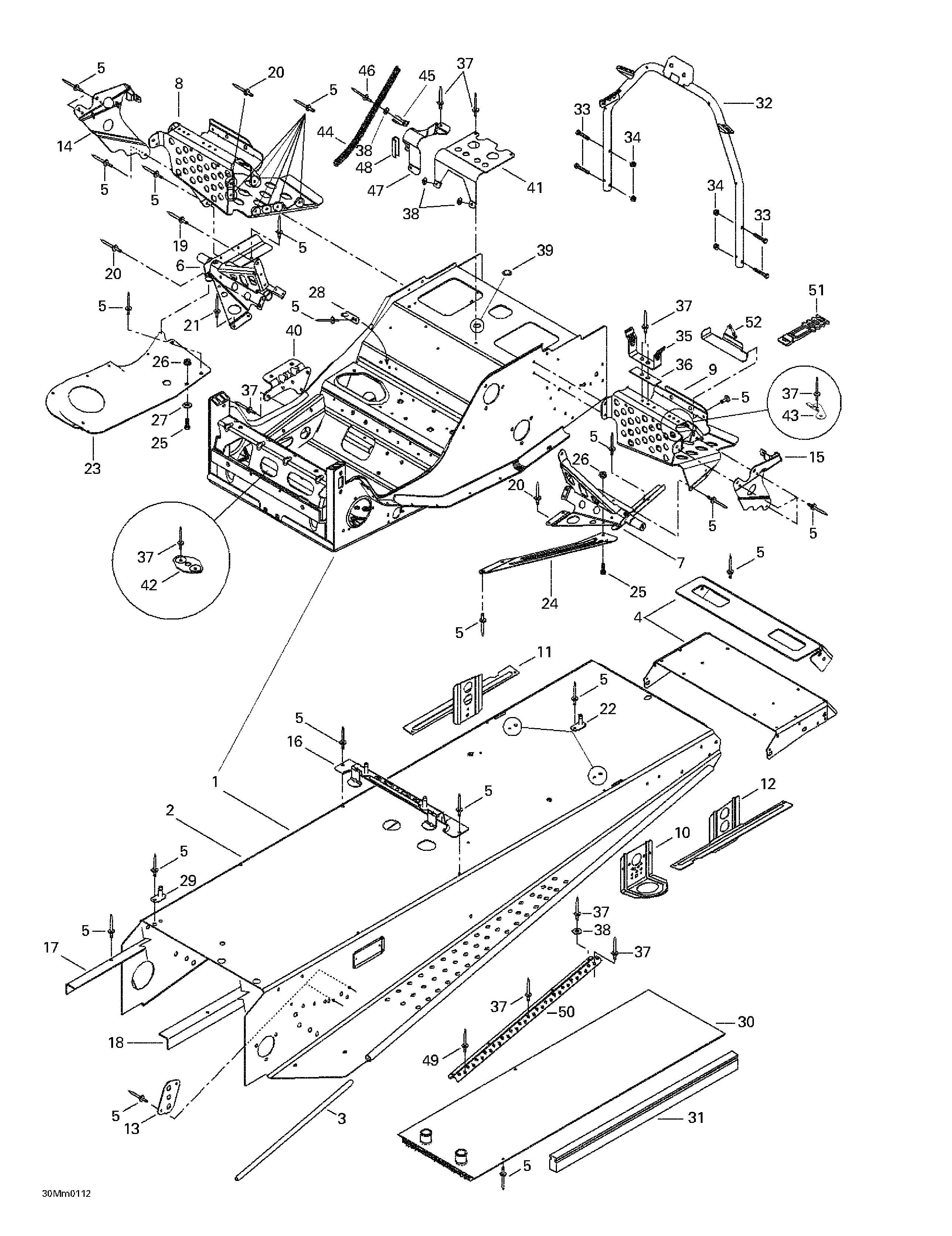

09- Frame And Accessories для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1518322491 Frame(H.M., H.M.X). Includes 1 - 30. Summit 700. Summit 800.Frame(H.M., H.M.X). Includes 1 - 30. Summit 700. Summit 800.
-
1518322492 Frame(STD, X). Includes 1 - 31.Frame(STD, X). Includes 1 - 31.
-
1518322568 Frame(Foothill). Includes 1 - 31. Summit 800.Frame(Foothill). Includes 1 - 31. Summit 800.
-
2518322537 Forming Frame(STD, X). Includes 2 - 5.Forming Frame(STD, X). Includes 2 - 5.
-
2518322536 Forming Frame(H.M., H.M.X). Includes 2 - 6. Summit 700. Summit 800.Forming Frame(H.M., H.M.X). Includes 2 - 6. Summit 700. Summit 800.
-
2518322452 Forming Frame (Foothill). Summit 800.Forming Frame (Foothill). Summit 800.
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518322299 Rear Cap (STD, X)Rear Cap (STD, X)
-
518322303 Frame Extention (H.M., H.M.X). Summit 700. Summit 800.Frame Extention (H.M., H.M.X). Summit 700. Summit 800.
-
518321304 Rear Cap (Foothill). Summit 800.Rear Cap (Foothill). Summit 800.
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518320506 R.H. Footrest SupportR.H. Footrest Support
-
7518320507 L.H. Footrest SupportL.H. Footrest Support
-
8518322393 R.H. FootrestR.H. Footrest
-
9518322394 L.H. FootrestL.H. Footrest
-
10518321495 Front BracketFront Bracket
-
11518321502 R.H.Rear Bracket (STD, X)R.H.Rear Bracket (STD, X)
-
518321965 R.H.Rear Bracket (H.M., H.M.X). Summit 700. Summit 800.R.H.Rear Bracket (H.M., H.M.X). Summit 700. Summit 800.
-
518322627 R.H.Rear Bracket (Foothill). Summit 800.R.H.Rear Bracket (Foothill). Summit 800.
-
12518321506 L.H. Rear Bracket (STD, X)L.H. Rear Bracket (STD, X)
-
518321966 L.H. Rear Bracket (H.M., H.M.X). Summit 700. Summit 800.L.H. Rear Bracket (H.M., H.M.X). Summit 700. Summit 800.
-
518322628 L.H. Rear Bracket (Foothill). Summit 800.L.H. Rear Bracket (Foothill). Summit 800.
-
13518201321 Reinforcement PlateReinforcement Plate
-
14518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
15518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
16518321510 Fuel Tank Bracket (STD, X, F.H.)Fuel Tank Bracket (STD, X, F.H.)
-
518322022 Fuel Tank Bracket (H.M., H.M.X). Summit 700. Summit 800.Fuel Tank Bracket (H.M., H.M.X). Summit 700. Summit 800.
-
17518322395 R.H. Frame Reinforcement (Foothill). Summit 800.R.H. Frame Reinforcement (Foothill). Summit 800.
-
518322357 R.H.FrameReinforcement(STD,X,H.M.,H.M.X)R.H.FrameReinforcement(STD,X,H.M.,H.M.X)
-
18518322359 L.H. Frame Reinforcement (STD, X, H.M., H.M.X)L.H. Frame Reinforcement (STD, X, H.M., H.M.X)
-
518322396 L.H. Frame Reinforcement (Foothill). Summit 800.L.H. Frame Reinforcement (Foothill). Summit 800.
-
19390909200 Rivet AVEXRivet AVEX
-
20390909100 Rivet AVEXRivet AVEX
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22518319730 Seat BracketSeat Bracket
-
23518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
24518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
25207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
26233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
27391301700 Flat WasherFlat Washer
-
28518322391 Double BracketDouble Bracket
-
29518321604 GuideGuide
-
30518322413 Rear Radiator (H.M., H.M.X). Summit 700. Summit 800.Rear Radiator (H.M., H.M.X). Summit 700. Summit 800.
-
30518322354 Rear Radiator (STD, X). Includes 30 - 31.Rear Radiator (STD, X). Includes 30 - 31.
-
517296310 Rear Radiator (Foothill). Summit 800.Rear Radiator (Foothill). Summit 800.
-
31518322360 Radiator Protector (STD, X)Radiator Protector (STD, X)
-
518321656 Radiator Protector (Foothill). Summit 800.Radiator Protector (Foothill). Summit 800.
-
32518321957 Handle SupportHandle Support
-
33207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
34233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35518202100 Pulley Guard BracketPulley Guard Bracket
-
36518207500 ReinforcementReinforcement
-
37390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
38517225900 WasherWasher
-
39414859400 CapCap
-
40518206300 Muffler SupportMuffler Support
-
41518310400 Air Intake SupportAir Intake Support
-
42518201307 Plate BracketPlate Bracket
-
43518322031 Tool Kit BracketTool Kit Bracket
-
44518321569 Rope GuideRope Guide
-
45518321570 ClipClip
-
46390406500 Pop RivetPop Rivet
-
47518319762 Hose SupportHose Support
-
48271000110 TrimTrim
-
49390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
50518319405 StripStrip
-
51570069700 LatchLatch
-
52518321999 Tool Kit SupportTool Kit Support
