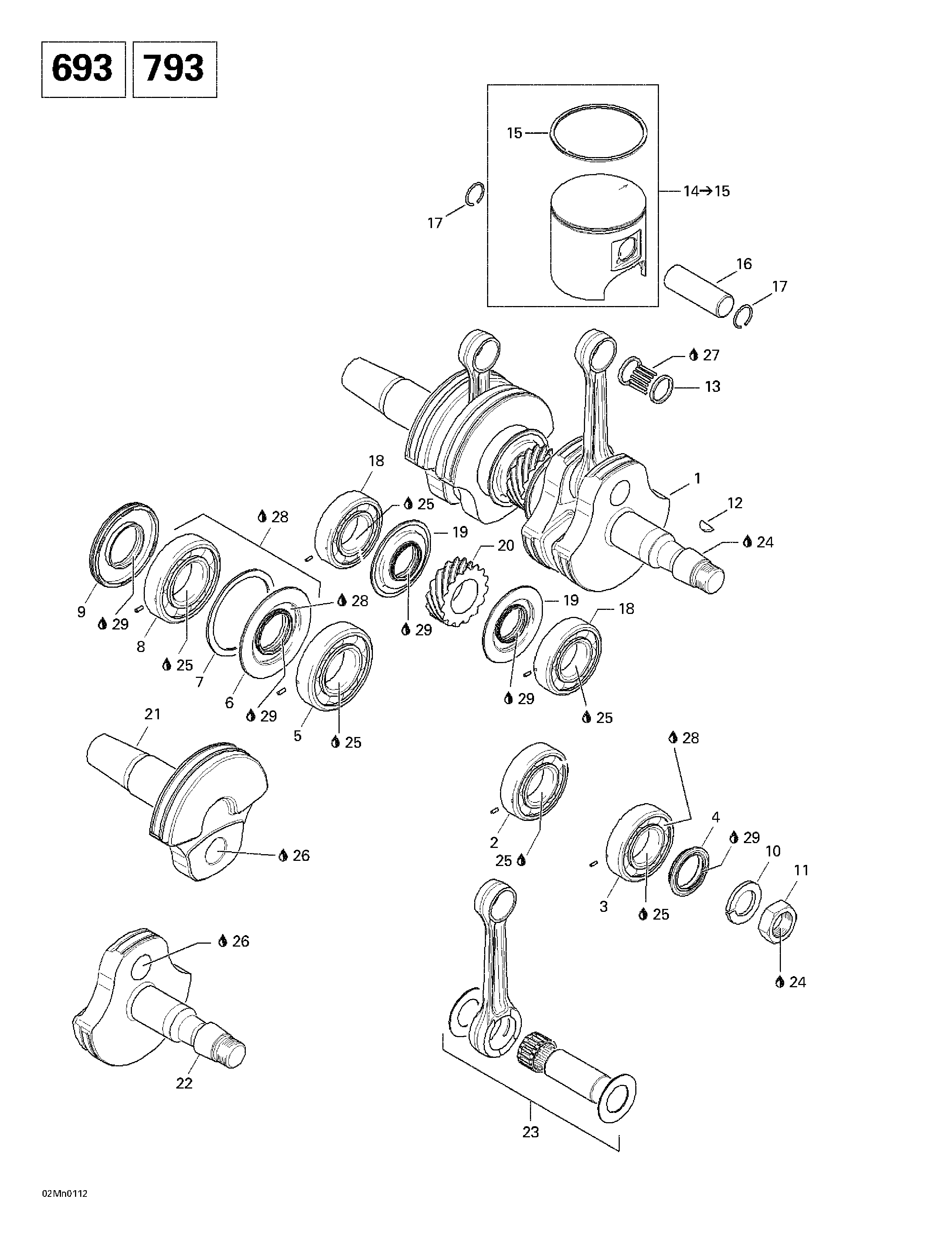

01- Crankshaft And Pistons (693, 793) для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1420888285 Crankshaft Ass'y. Includes 1 - 9. Summit 700.Crankshaft Ass'y. Includes 1 - 9. Summit 700.
-
1420888401 Crankshaft Ass'y. Includes 1 - 8. Summit 800.Crankshaft Ass'y. Includes 1 - 8. Summit 800.
-
2420832635 Ball Bearing 6207. Summit 700. Summit 800.Ball Bearing 6207. Summit 700. Summit 800.
-
3420832575 Ball Bearing 6207. Summit 700. Summit 800.Ball Bearing 6207. Summit 700. Summit 800.
-
4420931790 Oil Seal. Summit 700. Summit 800.Oil Seal. Summit 700. Summit 800.
-
5420832600 Ball Bearing 6208. Summit 700.Ball Bearing 6208. Summit 700.
-
420832601 Ball Bearing. Summit 800.Ball Bearing. Summit 800.
-
6420931910 Oil Seal. Summit 700. Summit 800.Oil Seal. Summit 700. Summit 800.
-
7420926190 Washer. Summit 700. Summit 800.Washer. Summit 700. Summit 800.
-
8420832600 Ball Bearing 6208. Summit 700.Ball Bearing 6208. Summit 700.
-
420832601 Ball Bearing. Summit 800.Ball Bearing. Summit 800.
-
9420931280 Oil Seal. Summit 700.Oil Seal. Summit 700.
-
420931285 Oil Seal. Summit 800.Oil Seal. Summit 800.
-
10420945759 Lock Washer 22 mm. Summit 700. Summit 800.Lock Washer 22 mm. Summit 700. Summit 800.
-
11420842230 Nut M22. Summit 700. Summit 800.Nut M22. Summit 700. Summit 800.
-
12420246015 Woodfuff Key. Summit 700. Summit 800.Woodfuff Key. Summit 700. Summit 800.
-
13420832425 Needle Bearing. Summit 700. Summit 800.Needle Bearing. Summit 700. Summit 800.
-
14420888296 Piston Ass'y (1 Ring 77.88 mm). Includes 14 - 15. Summit 700.Piston Ass'y (1 Ring 77.88 mm). Includes 14 - 15. Summit 700.
-
420888436 Piston Ass'y (1 Ring 81.85 mm). Summit 800.Piston Ass'y (1 Ring 81.85 mm). Summit 800.
-
15420815225 Semi-Trapez Ring. Summit 700.Semi-Trapez Ring. Summit 700.
-
420815217 ET - Ring. Summit 800.ET - Ring. Summit 800.
-
16420916370 Gudgeon Pin. Summit 700. Summit 800.Gudgeon Pin. Summit 700. Summit 800.
-
17420845102 Piston Circlip. Summit 700.Piston Circlip. Summit 700.
-
420845106 Piston Circlip. Summit 800.Piston Circlip. Summit 800.
-
18420832575 Ball Bearing 6207. Summit 700. Summit 800.Ball Bearing 6207. Summit 700. Summit 800.
-
19420931455 Oil Seal. Summit 700. Summit 800.Oil Seal. Summit 700. Summit 800.
-
20420834355 Central Gear 15 Teeth. Summit 700. Summit 800.Central Gear 15 Teeth. Summit 700. Summit 800.
-
21420818708 Crankshaft (PTO side). Summit 700.Crankshaft (PTO side). Summit 700.
-
420819030 Crankshaft (PTO side). Summit 800.Crankshaft (PTO side). Summit 800.
-
22420818738 Crankshaft (MAG side). Summit 700.Crankshaft (MAG side). Summit 700.
-
420819061 Crankshaft (MAG side). Summit 800.Crankshaft (MAG side). Summit 800.
-
23420888288 Rod Repair Kit (MAG side). Summit 700.Rod Repair Kit (MAG side). Summit 700.
-
420888403 Rod Repair Kit (MAG side). Summit 800.Rod Repair Kit (MAG side). Summit 800.
-
420888289 Rod Repair Kit (PTO side). Summit 700.Rod Repair Kit (PTO side). Summit 700.
-
420888404 Rod Repair Kit (PTO side). Summit 800.Rod Repair Kit (PTO side). Summit 800.
-
24293800060 Loctite 243, 10 ml. Summit 700. Summit 800.Loctite 243, 10 ml. Summit 700. Summit 800.
-
25293800023 Loctite 767, Antiseize Lubricant, 454 g. Summit 700. Summit 800.Loctite 767, Antiseize Lubricant, 454 g. Summit 700. Summit 800.
-
26413711400 Loctite 648, 10 ml. Summit 700. Summit 800.Loctite 648, 10 ml. Summit 700. Summit 800.
-
27413802900 Injection Oil (12 x 1 Liter). Summit 700. Summit 800.Injection Oil (12 x 1 Liter). Summit 700. Summit 800.
-
28293550021 Isoflex Grease, 45 g. Summit 700. Summit 800.Isoflex Grease, 45 g. Summit 700. Summit 800.
-
29420899271 Petamo Grease, GHY133N, 400 g. Summit 700. Summit 800.Petamo Grease, GHY133N, 400 g. Summit 700. Summit 800.
