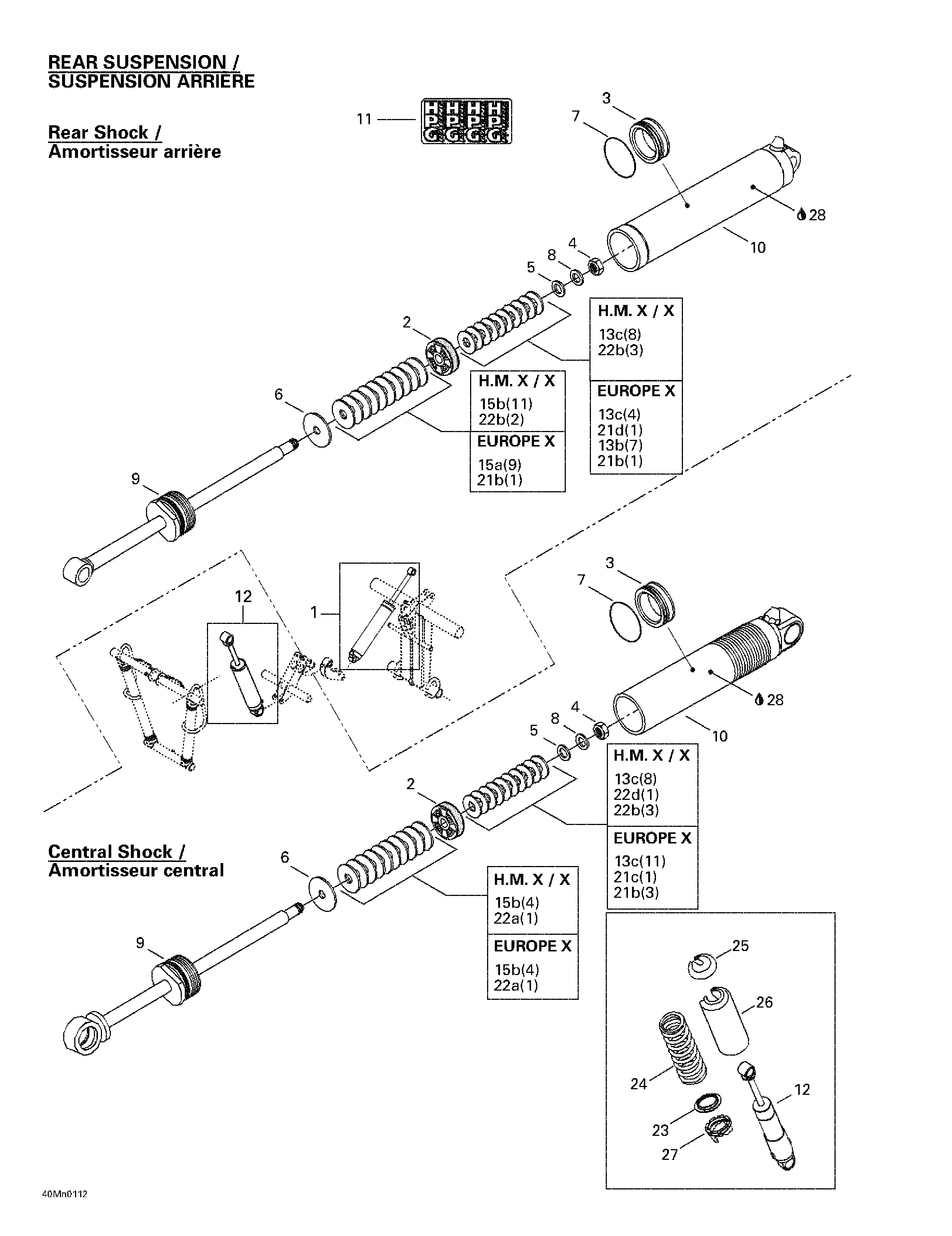

08- Rear Take Apart Shocks для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1503189527 Rear Shock. (H.M. X / X) Summit 700. Summit 800.Rear Shock. (H.M. X / X) Summit 700. Summit 800.
-
503189492 Rear Shock. (Europe X) Summit 800.Rear Shock. (Europe X) Summit 800.
-
3415097900 Free Piston. (H.M. X / X / Europe X) Summit 700. Summit 800.Free Piston. (H.M. X / X / Europe X) Summit 700. Summit 800.
-
7414888312 O-Ring (EUROPE-STD-ADR). (H.M. X / X / Europe X) Summit 700. Summit 800.O-Ring (EUROPE-STD-ADR). (H.M. X / X / Europe X) Summit 700. Summit 800.
-
11516000183 Shock Decal >. (H.M. X / X / Europe X) Summit 700. Summit 800.Shock Decal >. (H.M. X / X / Europe X) Summit 700. Summit 800.
-
12503189528 Central Shock. (H.M. X / X) Summit 700. Summit 800.Central Shock. (H.M. X / X) Summit 700. Summit 800.
-
503189076 Central Shock. (EUROPE X) Summit 800.Central Shock. (EUROPE X) Summit 800.
-
13a415039100 (C36) Leaf Valve O30 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O30 x 0.254. Summit 700. Summit 800.
-
13b414888318 (C36) Leaf Valve O30 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O30 x 0.203. Summit 700. Summit 800.
-
13c414888319 (C36) Leaf Valve O30 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O30 x 0.152. Summit 700. Summit 800.
-
14a414888320 (C36) Leaf Valve O28 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O28 x 0.203. Summit 700. Summit 800.
-
14b414888321 (C36) Leaf Valve O28 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O28 x 0.152. Summit 700. Summit 800.
-
15a415039000 (C36) Leaf Valve O26 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O26 x 0.254. Summit 700. Summit 800.
-
15b414888322 (C36) Leaf Valve O26 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O26 x 0.203. Summit 700. Summit 800.
-
15c414888323 (C36) Leaf Valve O26 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O26 x 0.152. Summit 700. Summit 800.
-
16a414888324 (C36) Leaf Valve O22 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O22 x 0.203. Summit 700. Summit 800.
-
16b414888325 (C36) Leaf Valve O22 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O22 x 0.152. Summit 700. Summit 800.
-
17a414888340 (C36) Leaf Valve O21 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O21 x 0.114. Summit 700. Summit 800.
-
18a414888326 (C36) Leaf Valve O20 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O20 x 0.203. Summit 700. Summit 800.
-
18b414888327 (C36) Leaf Valve O20 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O20 x 0.152. Summit 700. Summit 800.
-
18c414888328 (C36) Leaf Valve O20 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O20 x 0.114. Summit 700. Summit 800.
-
19a414888329 (C36) Leaf Valve O18 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O18 x 0.203. Summit 700. Summit 800.
-
19b414888330 (C36) Leaf Valve O18 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O18 x 0.152. Summit 700. Summit 800.
-
20a414888331 (C36) Leaf Valve O16 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.254. Summit 700. Summit 800.
-
20b414888332 (C36) Leaf Valve O16 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.203. Summit 700. Summit 800.
-
20c414888333 (C36) Leaf Valve O16 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.152. Summit 700. Summit 800.
-
20d415093823 (C36) Leaf Valve O16 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.114. Summit 700. Summit 800.
-
21a414888334 (C36) Leaf Valve O15 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.254. Summit 700. Summit 800.
-
21b414888335 (C36) Leaf Valve O15 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.203. Summit 700. Summit 800.
-
21c414888336 (C36) Leaf Valve O15 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.152. Summit 700. Summit 800.
-
21d414888337 (C36) Leaf Valve O15 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.114. Summit 700. Summit 800.
-
22a503189538 (C36) Leaf Valve O12 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.254. Summit 700. Summit 800.
-
22b414888339 (C36) Leaf Valve O12 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.203. Summit 700. Summit 800.
-
22c414888338 (C36) Leaf Valve O12 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.152. Summit 700. Summit 800.
-
22d415038800 (C36) Leaf Valve O12 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.114. Summit 700. Summit 800.
-
23503184300 Spring Guide. Summit 700. Summit 800.Spring Guide. Summit 700. Summit 800.
-
24503189325 Spring. Summit 700. Summit 800.Spring. Summit 700. Summit 800.
-
25503140600 Spring Stopper. Summit 700. Summit 800.Spring Stopper. Summit 700. Summit 800.
-
26503188930 Protector. Summit 700. Summit 800.Protector. Summit 700. Summit 800.
-
27503070150 Adjuster Ring. Summit 700. Summit 800.Adjuster Ring. Summit 700. Summit 800.
-
28293600035 Shock Oil. Summit 700. Summit 800.Shock Oil. Summit 700. Summit 800.
