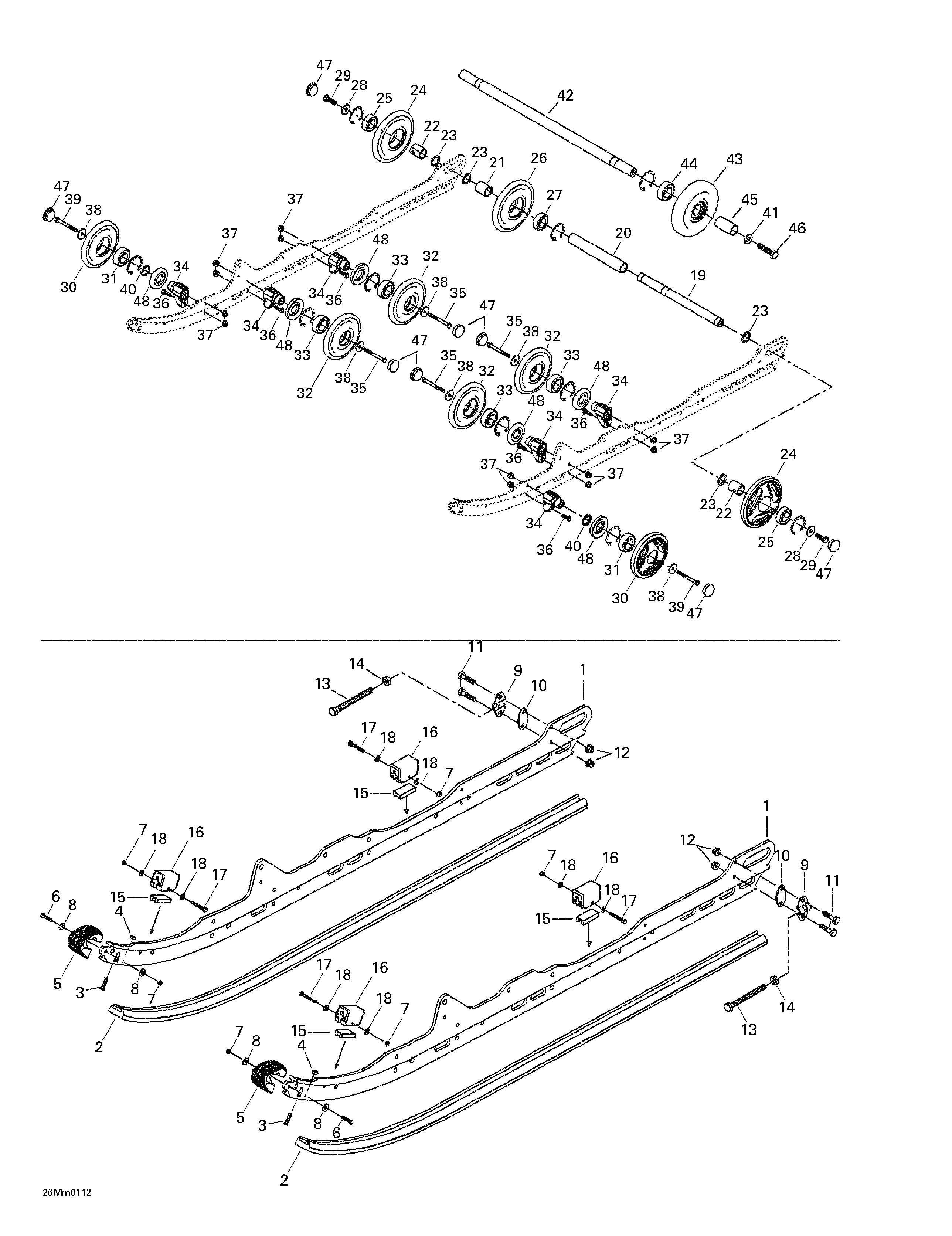

08- Rear Suspension для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1503189561 Runner (144'')Runner (144'')
-
503189581 Runner (151''). Summit 700. Summit 800.Runner (151''). Summit 700. Summit 800.
-
2503189606 Runner Shoe (144'')Runner Shoe (144'')
-
503189631 Runner Shoe (151''). Summit 700. Summit 800.Runner Shoe (151''). Summit 700. Summit 800.
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
12233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
13230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15572084800 Stopper ReinforcementStopper Reinforcement
-
16570063000 Rubber StopperRubber Stopper
-
17207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
18391301700 Flat WasherFlat Washer
-
19503160700 Rear AxleRear Axle
-
20503183000 Spacer (Long)Spacer (Long)
-
21503182900 Spacer (Short)Spacer (Short)
-
22503189161 Outer SpacerOuter Spacer
-
23503180400 WasherWasher
-
24503189566 Wheel 165 (Yellow 2000) B190. Includes 24 - 25.Wheel 165 (Yellow 2000) B190. Includes 24 - 25.
-
25405404500 Ball Bearing 6205Ball Bearing 6205
-
26503189568 Wheel 165 (Black). Includes 26 - 27.Wheel 165 (Black). Includes 26 - 27.
-
27405404500 Ball Bearing 6205Ball Bearing 6205
-
28503183300 WasherWasher
-
29250000019 Hex. Screw with NylonHex. Screw with Nylon
-
30572097612 Wheel 135. Includes 30 - 31.Wheel 135. Includes 30 - 31.
-
31405404500 Ball Bearing 6205Ball Bearing 6205
-
32503188997 Wheel 135. Includes 32 - 33.Wheel 135. Includes 32 - 33.
-
33405404500 Ball Bearing 6205Ball Bearing 6205
-
34503174600 SupportSupport
-
35207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
36207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
37233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
38503183100 WasherWasher
-
39207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
40503173700 WasherWasher
-
41503189157 WasherWasher
-
42503153600 Wheel Support AxleWheel Support Axle
-
43572043500 Idler Wheel. Includes 43 - 44.Idler Wheel. Includes 43 - 44.
-
44405404600 Ball Bearing 6202Ball Bearing 6202
-
45572048300 SpacerSpacer
-
46207383044 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
47570063600 Wheel CapWheel Cap
-
48572089000 Labyrinth SealLabyrinth Seal
