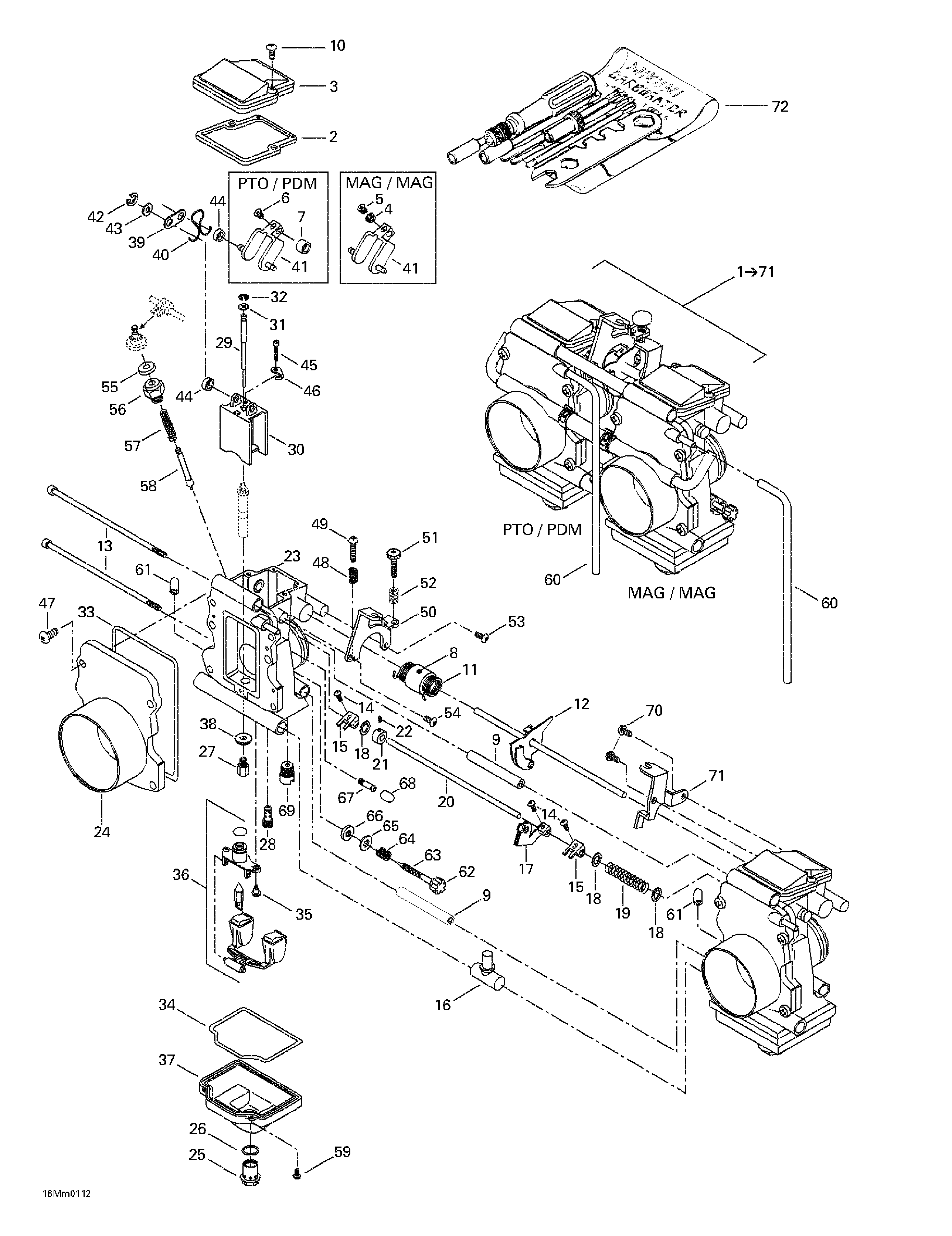

02- Carburetors для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1403138657 Carburetor Kit TM-40-55. Includes 1 - 71. Summit 600.Carburetor Kit TM-40-55. Includes 1 - 71. Summit 600.
-
403138660 Carburetor Kit TM-40-B100. Summit 700.Carburetor Kit TM-40-B100. Summit 700.
-
403138661 Carburetor Kit TM-40-B103 (Foothill). Summit 800.Carburetor Kit TM-40-B103 (Foothill). Summit 800.
-
403138662 Carburetor Kit TM-40. Summit 800.Carburetor Kit TM-40. Summit 800.
-
2404161940 GasketGasket
-
3404161939 CoverCover
-
4404161937 Ring (MAG)Ring (MAG)
-
5404161936 Screw (MAG)Screw (MAG)
-
6404161928 Screw (PTO)Screw (PTO)
-
7404161926 Ring (PTO)Ring (PTO)
-
8404161925 RingRing
-
9404161924 RingRing
-
10404161923 ScrewScrew
-
11404161915 SpringSpring
-
12404161914 Throttle ShaftThrottle Shaft
-
13404161911 ScrewScrew
-
14404161910 ScrewScrew
-
15404161909 LeverLever
-
16404161905 NippleNipple
-
17404161901 Starter LeverStarter Lever
-
18404161894 PackingPacking
-
19404103500 SpringSpring
-
20404161952 ShaftShaft
-
21404161951 RingRing
-
22404161949 ScrewScrew
-
24404161947 FunnelFunnel
-
25404161955 Drain ScrewDrain Screw
-
26404161945 O-RingO-Ring
-
27404108200 Main Jet 500. Summit 600. Summit 800.Main Jet 500. Summit 600. Summit 800.
-
404115100 Main Jet 520. Summit 700.Main Jet 520. Summit 700.
-
28404108600 Pilot Jet 20. Summit 600.Pilot Jet 20. Summit 600.
-
404161944 Pilot Jet 17.5. Summit 700. Summit 800.Pilot Jet 17.5. Summit 700. Summit 800.
-
29404161954 Needle J8-9hfy02-53. Summit 600.Needle J8-9hfy02-53. Summit 600.
-
404161953 Needle J8-9zly03-58. Summit 700.Needle J8-9zly03-58. Summit 700.
-
404161962 Needle J8-9zly02-58. Summit 800.Needle J8-9zly02-58. Summit 800.
-
30404161950 Valve Piston 2.0Valve Piston 2.0
-
31404137600 PackingPacking
-
32404152200 E-RingE-Ring
-
33404161935 O-RingO-Ring
-
34404161934 O-Ring. Summit 600.O-Ring. Summit 600.
-
404161961 O-Ring. Summit 700. Summit 800.O-Ring. Summit 700. Summit 800.
-
35404161933 ScrewScrew
-
36404161932 FloatFloat
-
37404161931 Float Body Ass'y. Summit 600.Float Body Ass'y. Summit 600.
-
404161960 Float Body Ass'y. Summit 700. Summit 800.Float Body Ass'y. Summit 700. Summit 800.
-
38404161862 WasherWasher
-
39404161930 PlatePlate
-
40404161929 ClipClip
-
41404161927 Lever (PTO)Lever (PTO)
-
404161938 Lever (MAG)Lever (MAG)
-
42404138300 E RingE Ring
-
43404161922 WasherWasher
-
44404161921 RingRing
-
45404161920 ScrewScrew
-
46404161919 PlatePlate
-
47404138800 ScrewScrew
-
48404161918 Spring (PTO)Spring (PTO)
-
49404161917 Screw (PTO)Screw (PTO)
-
50404161916 Bracket (PTO)Bracket (PTO)
-
51404137500 Adjustment Screw (PTO)Adjustment Screw (PTO)
-
52404161913 Spring (PTO)Spring (PTO)
-
53404161912 Screw (PTO)Screw (PTO)
-
54404136100 Screw (PTO)Screw (PTO)
-
55404140000 CapCap
-
56404136900 Guide-HolderGuide-Holder
-
57404161908 SpringSpring
-
58404161907 Plunger Ass'yPlunger Ass'y
-
59404161906 ScrewScrew
-
60404161904 HoseHose
-
61404156600 Cap (Foothill). Summit 800.Cap (Foothill). Summit 800.
-
62404161899 CapCap
-
63404161898 AdjusterAdjuster
-
64404161897 SpringSpring
-
65404161896 WasherWasher
-
66404161895 PackingPacking
-
67404153400 NippleNipple
-
68404154900 CapCap
-
69404161900 Jet 331-1.1. Summit 600.Jet 331-1.1. Summit 600.
-
70404161903 Screw TM 40-99 (MAG)Screw TM 40-99 (MAG)
-
71404161902 Bracket TM 40-99 (MAG)Bracket TM 40-99 (MAG)
-
72404112000 Tool KitTool Kit
