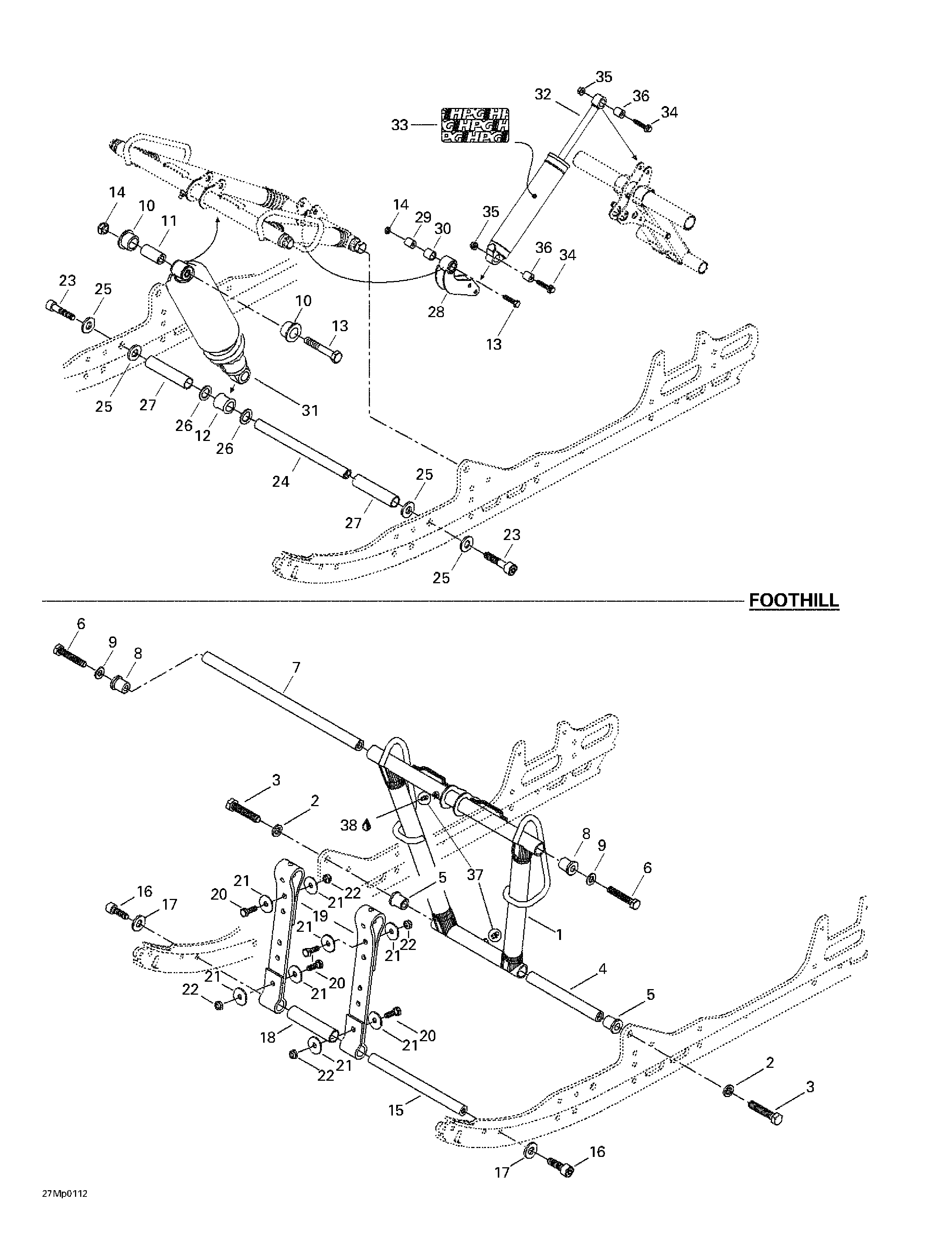

08- Front Arm, Foothill для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1503189292 Front Arm. Summit 800.Front Arm. Summit 800.
-
2503189276 Lock Washer 12 mm. Summit 800.Lock Washer 12 mm. Summit 800.
-
3207226044 Hex. Screw M12 x 60 (Scotch Grip). Summit 800.Hex. Screw M12 x 60 (Scotch Grip). Summit 800.
-
4503189313 Shaft. Summit 800.Shaft. Summit 800.
-
5503189323 Bushing. Summit 800.Bushing. Summit 800.
-
6207205544 Hex. Screw M10 x 55 (Scotch Grip). Summit 800.Hex. Screw M10 x 55 (Scotch Grip). Summit 800.
-
7503188938 Shaft. Summit 800.Shaft. Summit 800.
-
8503189324 Bushing. Summit 800.Bushing. Summit 800.
-
9732900049 Flat Washer 10 mm. Summit 800.Flat Washer 10 mm. Summit 800.
-
10503189117 Cushion. Summit 800.Cushion. Summit 800.
-
11503189282 Bushing. Summit 800.Bushing. Summit 800.
-
12503189271 Cushion. Summit 800.Cushion. Summit 800.
-
13207005044 Hex. Screw M10 x 50. Summit 800.Hex. Screw M10 x 50. Summit 800.
-
14233601416 Elastic Stop Nut M10. Summit 800.Elastic Stop Nut M10. Summit 800.
-
15503189562 Axle. Summit 800.Axle. Summit 800.
-
16205503544 Socket Head Screw M10 x 35 (Scotch Grip). Summit 800.Socket Head Screw M10 x 35 (Scotch Grip). Summit 800.
-
17503189564 Washer 10 mm. Summit 800.Washer 10 mm. Summit 800.
-
18503189265 Spacer. Summit 800.Spacer. Summit 800.
-
19503189362 Stopper Strap. Summit 800.Stopper Strap. Summit 800.
-
20207182544 Hex. Screw M8 x 25. Summit 800.Hex. Screw M8 x 25. Summit 800.
-
21224081301 Flat Washer. Summit 800.Flat Washer. Summit 800.
-
22232581414 Elastic Stop Nut M8. Summit 800.Elastic Stop Nut M8. Summit 800.
-
23205523544 Socket Head Screw M12 x 35 (Scotch Grip). Summit 800.Socket Head Screw M12 x 35 (Scotch Grip). Summit 800.
-
24503189272 Center Shock Shaft. Summit 800.Center Shock Shaft. Summit 800.
-
25503189276 Washer. Summit 800.Washer. Summit 800.
-
26503189273 Washer. Summit 800.Washer. Summit 800.
-
27503189274 Spacer. Summit 800.Spacer. Summit 800.
-
28503189417 Rocker. Summit 800.Rocker. Summit 800.
-
29503189388 Rocker Axle. Summit 800.Rocker Axle. Summit 800.
-
30503189410 Cushion. Summit 800.Cushion. Summit 800.
-
31503189765 Center Shock. Summit 800.Center Shock. Summit 800.
-
32503189766 Rear Shock. Summit 800.Rear Shock. Summit 800.
-
33516000182 HPG Decal. Summit 800.HPG Decal. Summit 800.
-
34207684044 Hex. Flanged Screw M8 x 40. Summit 800.Hex. Flanged Screw M8 x 40. Summit 800.
-
35233281414 Elastic Flanged Stop Nut M8. Summit 800.Elastic Flanged Stop Nut M8. Summit 800.
-
36414936000 Cushion. Summit 800.Cushion. Summit 800.
-
37408200700 Grease Fitting. Summit 800.Grease Fitting. Summit 800.
-
38219700417 Synthetic Grease, 400g. Summit 800.Synthetic Grease, 400g. Summit 800.
