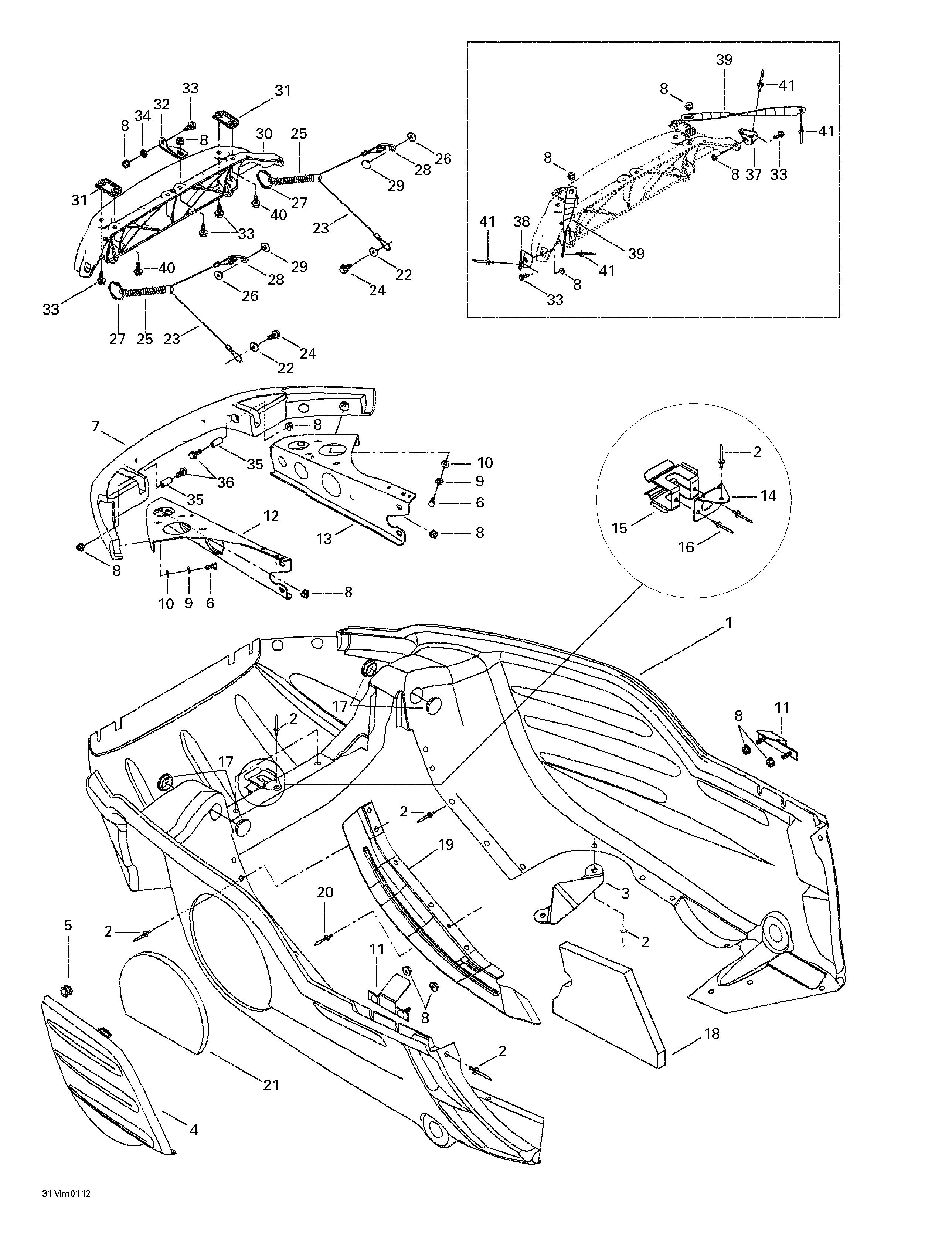

09- Bottom Pan для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1502006588 Bottom Pan (Yellow) B-190Bottom Pan (Yellow) B-190
-
502006589 Bottom Pan (Black) B-160Bottom Pan (Black) B-160
-
502006627 Bottom Pan (Red) B-215. Summit 700. Summit 800.Bottom Pan (Red) B-215. Summit 700. Summit 800.
-
2390910200 Pop Rivet 3/16 (Yellow) B-190Pop Rivet 3/16 (Yellow) B-190
-
390906800 Pop Rivet 3/16 (Black) B-160Pop Rivet 3/16 (Black) B-160
-
293150075 Pop Rivet 3/16 (Red) B-215. Summit 700. Summit 800.Pop Rivet 3/16 (Red) B-215. Summit 700. Summit 800.
-
3502006563 Snow Deflector. Summit 600.Snow Deflector. Summit 600.
-
502006637 Snow Deflector. Summit 700. Summit 800.Snow Deflector. Summit 700. Summit 800.
-
4502006511 Bottom Pan Door (Yellow) B-190Bottom Pan Door (Yellow) B-190
-
502006506 Bottom Pan Door (Black) B-160Bottom Pan Door (Black) B-160
-
502006628 Bottom Pan Door (Red) B-215. Summit 700. Summit 800.Bottom Pan Door (Red) B-215. Summit 700. Summit 800.
-
5414036300 GrommetGrommet
-
6207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
7502006535 Bumper (Yellow) B-190Bumper (Yellow) B-190
-
502006536 Bumper (Black) B-160Bumper (Black) B-160
-
502006629 Bumper (Red) B-215Bumper (Red) B-215
-
8233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
9234161471 Lock Washer 6 mmLock Washer 6 mm
-
10224061121 Flat WasherFlat Washer
-
11502006500 BracketBracket
-
12502006597 L.H. SupportL.H. Support
-
13502006596 R.H. SupportR.H. Support
-
14502006599 Belt SupportBelt Support
-
15517281905 BracketBracket
-
16390402400 Pop Rivet 3/16Pop Rivet 3/16
-
17414916600 Nylon CapNylon Cap
-
18502006558 Bottom FoamBottom Foam
-
19502006593 Bottom Pan Protector. Summit 700. Summit 800.Bottom Pan Protector. Summit 700. Summit 800.
-
20390402200 Pop Rivet. Summit 700. Summit 800.Pop Rivet. Summit 700. Summit 800.
-
21502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
22391301600 Flat WasherFlat Washer
-
23415093900 Retainer CableRetainer Cable
-
25415043300 SpringSpring
-
26517124300 WasherWasher
-
27415058300 RingRing
-
28517262800 BracketBracket
-
29390409600 Pop Rivet 3/16Pop Rivet 3/16
-
30517302004 HingeHinge
-
31517302176 Hinge Side PlateHinge Side Plate
-
32517302045 Hinge Center PlateHinge Center Plate
-
33207661684 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
34250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
35517302179 BushingBushing
-
36207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
37517302254 R.H. Corner SupportR.H. Corner Support
-
38517302255 L.H. Corner SupportL.H. Corner Support
-
39517302256 Hood ClampHood Clamp
-
40207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
41390406500 Pop RivetPop Rivet
