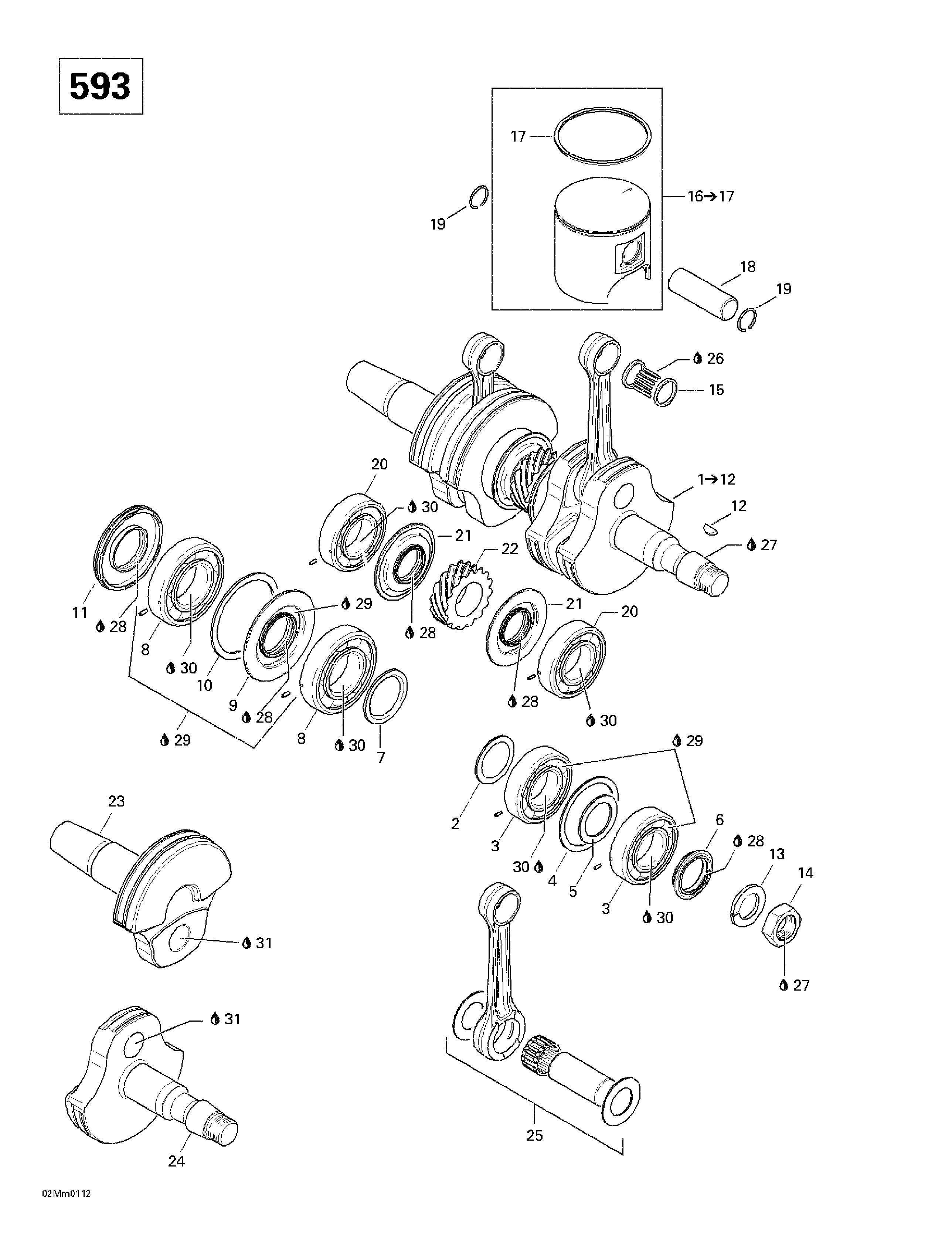

01- Crankshaft And Pistons (593) для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1420888750 Crankshaft Ass'y. Includes 1 - 12. Summit 600.Crankshaft Ass'y. Includes 1 - 12. Summit 600.
-
2420827445 Distance Ring. Summit 600.Distance Ring. Summit 600.
-
3420832590 Ball Bearing 6206. Summit 600.Ball Bearing 6206. Summit 600.
-
4420827050 Retaining Disk. Summit 600.Retaining Disk. Summit 600.
-
5420427684 Adjustment Washer. Summit 600.Adjustment Washer. Summit 600.
-
6420931790 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
7420827760 Distance Ring. Summit 600.Distance Ring. Summit 600.
-
8420832575 Ball Bearing 6207. Summit 600.Ball Bearing 6207. Summit 600.
-
9420931455 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
10420927710 Retaining Disk. Summit 600.Retaining Disk. Summit 600.
-
11290831952 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
12420246015 Woodfuff Key. Summit 600.Woodfuff Key. Summit 600.
-
13420945759 Lock Washer 22 mm. Summit 600.Lock Washer 22 mm. Summit 600.
-
14420842230 Nut M22. Summit 600.Nut M22. Summit 600.
-
15420832425 Needle Bearing. Summit 600.Needle Bearing. Summit 600.
-
16420886687 Piston Ass'y (1 Ring 75.88 mm). Includes 16 - 17. Summit 600.Piston Ass'y (1 Ring 75.88 mm). Includes 16 - 17. Summit 600.
-
420886688 OversizePistonAss'y(1Ring76.16mm). Summit 600.OversizePistonAss'y(1Ring76.16mm). Summit 600.
-
17420815150 Semi-Trapez Ring 76.00 mm. Summit 600.Semi-Trapez Ring 76.00 mm. Summit 600.
-
420815151 Oversize Semi-Trapez Ring 76.25 mm. Summit 600.Oversize Semi-Trapez Ring 76.25 mm. Summit 600.
-
18420916410 Gudgeon Pin. Summit 600.Gudgeon Pin. Summit 600.
-
19420845102 Piston Circlip. Summit 600.Piston Circlip. Summit 600.
-
20420832590 Ball Bearing 6206. Summit 600.Ball Bearing 6206. Summit 600.
-
21420931940 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
22420834350 Central Gear 15 Teeth. Summit 600.Central Gear 15 Teeth. Summit 600.
-
23420818664 Crankshaft (PTO side). Summit 600.Crankshaft (PTO side). Summit 600.
-
24420818693 Crankshaft (MAG side). Summit 600.Crankshaft (MAG side). Summit 600.
-
25420888753 Rod Repair Kit (MAG side). Summit 600.Rod Repair Kit (MAG side). Summit 600.
-
420888754 Rod Repair Kit (PTO side). Summit 600.Rod Repair Kit (PTO side). Summit 600.
-
26413802900 Injection Oil (12 x 1 Liter). Summit 600.Injection Oil (12 x 1 Liter). Summit 600.
-
27293800060 Loctite 243, 10 ml. Summit 600.Loctite 243, 10 ml. Summit 600.
-
28420899271 Petamo Grease, GHY133N, 400 g. Summit 600.Petamo Grease, GHY133N, 400 g. Summit 600.
-
29293550021 Isoflex Grease, 45 g. Summit 600.Isoflex Grease, 45 g. Summit 600.
-
30293800023 Loctite 767, Antiseize Lubricant, 454 g. Summit 600.Loctite 767, Antiseize Lubricant, 454 g. Summit 600.
-
31413711400 Loctite 648, 10 ml. Summit 600.Loctite 648, 10 ml. Summit 600.
