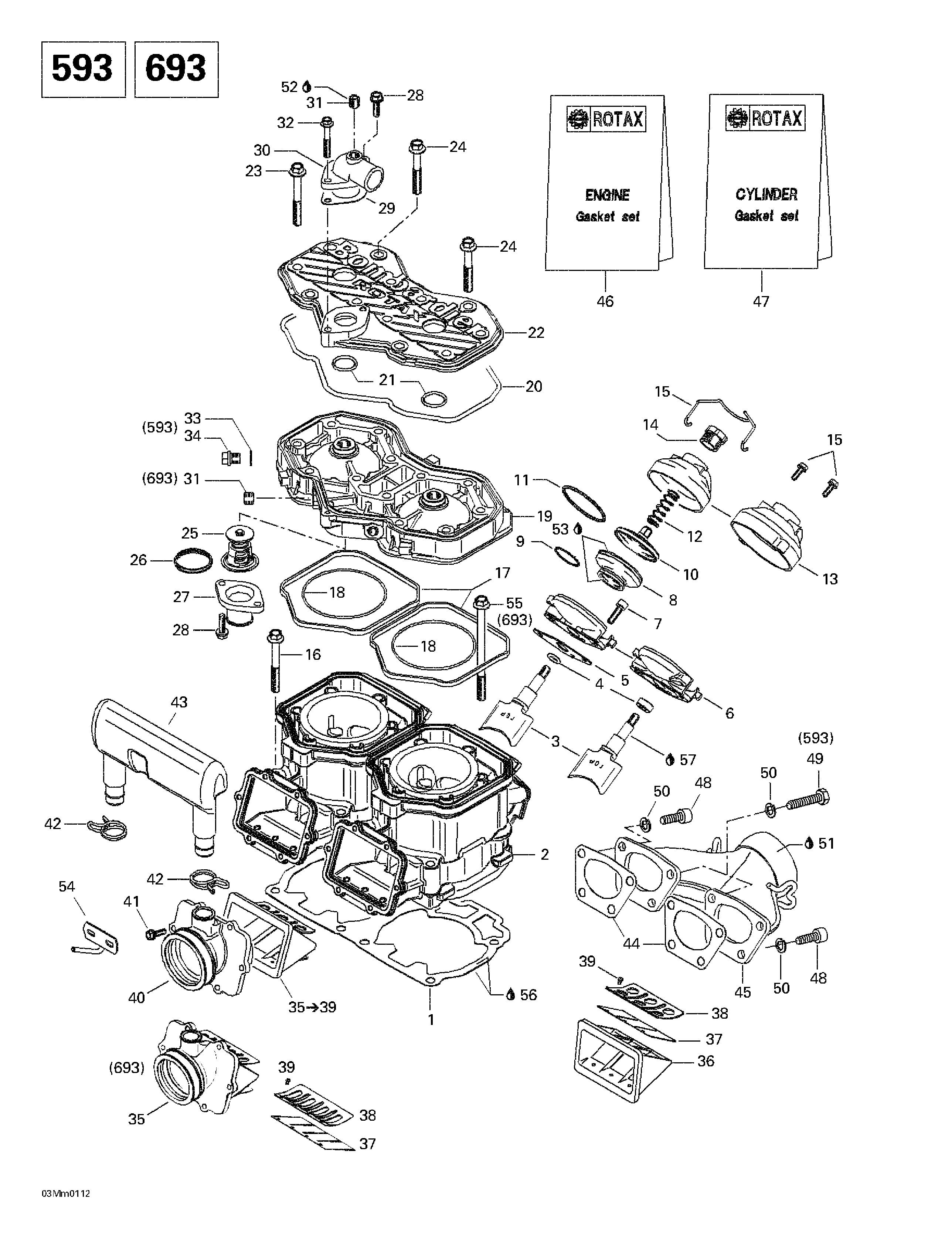

01- Cylinder, Exhaust Manifold, Reed Valve (593693) для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1420931584 Double Gasket 0.8 mm. Summit 600.Double Gasket 0.8 mm. Summit 600.
-
420931895 Double Gasket 0.8 mm. Summit 700.Double Gasket 0.8 mm. Summit 700.
-
420931962 Double Gasket 0.7 mm. Summit 600.Double Gasket 0.7 mm. Summit 600.
-
420931894 Double Gasket 0.7 mm. Summit 700.Double Gasket 0.7 mm. Summit 700.
-
420931582 Double Gasket 0.6 mm. Summit 600.Double Gasket 0.6 mm. Summit 600.
-
420931892 Double Gasket 0.6 mm. Summit 700.Double Gasket 0.6 mm. Summit 700.
-
420931583 Double Gasket 0.5 mm. Summit 600.Double Gasket 0.5 mm. Summit 600.
-
420931893 Double Gasket 0.5 mm. Summit 700.Double Gasket 0.5 mm. Summit 700.
-
2420923439 Cylinder with Sleeve. Summit 600.Cylinder with Sleeve. Summit 600.
-
420923695 Cylinder with Sleeve (Nicasil). Summit 700.Cylinder with Sleeve (Nicasil). Summit 700.
-
3420854370 Exhaust Valve. Summit 600.Exhaust Valve. Summit 600.
-
420854332 Exhaust Valve. Summit 700.Exhaust Valve. Summit 700.
-
4420430110 O-Ring. Summit 600.O-Ring. Summit 600.
-
420950730 Oil Seal. Summit 600. Summit 700.Oil Seal. Summit 600. Summit 700.
-
5420250239 Gasket. Summit 600. Summit 700.Gasket. Summit 600. Summit 700.
-
6420854265 Valve Housing (Spring Clip). Summit 600.Valve Housing (Spring Clip). Summit 600.
-
420854266 Valve Housing (Screw). Summit 600. Summit 700.Valve Housing (Screw). Summit 600. Summit 700.
-
7205062044 Socket Head Screw M6 x 20. Summit 600. Summit 700.Socket Head Screw M6 x 20. Summit 600. Summit 700.
-
8290260723 Bellows. Summit 600. Summit 700.Bellows. Summit 600. Summit 700.
-
9420838253 Spring Clamp. Summit 600. Summit 700.Spring Clamp. Summit 600. Summit 700.
-
10420854449 Exhaust Valve. Summit 600. Summit 700.Exhaust Valve. Summit 600. Summit 700.
-
11290239048 Hose Spring. Summit 600. Summit 700.Hose Spring. Summit 600. Summit 700.
-
12420239944 Spring. Summit 600. Summit 700.Spring. Summit 600. Summit 700.
-
13420911551 Valve Cover (Spring Clip). Summit 600.Valve Cover (Spring Clip). Summit 600.
-
420911552 Valve Cover (Screw). Summit 600. Summit 700.Valve Cover (Screw). Summit 600. Summit 700.
-
14420241221 Adjuster Screw. Summit 600. Summit 700.Adjuster Screw. Summit 600. Summit 700.
-
15420838083 Spring Clip. Summit 600.Spring Clip. Summit 600.
-
420841555 Tapping Screw M5 x 20. Summit 600. Summit 700.Tapping Screw M5 x 20. Summit 600. Summit 700.
-
16420640951 Hex. Screw M8 x 68.5. Summit 600.Hex. Screw M8 x 68.5. Summit 600.
-
420640524 Hex. Screw M10 x 80. Summit 700.Hex. Screw M10 x 80. Summit 700.
-
17420931590 Rubber Ring. Summit 600. Summit 700.Rubber Ring. Summit 600. Summit 700.
-
18293300026 O-Ring. Summit 600.O-Ring. Summit 600.
-
420931840 Rubber Ring. Summit 700.Rubber Ring. Summit 700.
-
19420923452 Cylinder Head (Silver). Summit 600.Cylinder Head (Silver). Summit 600.
-
420923457 Cylinder Head (Silver). Summit 700.Cylinder Head (Silver). Summit 700.
-
20290950320 O-Ring. Summit 600. Summit 700.O-Ring. Summit 600. Summit 700.
-
21420430782 O-Ring. Summit 600. Summit 700.O-Ring. Summit 600. Summit 700.
-
22420923460 Cylinder Head Cover (Silver). Summit 600. Summit 700.Cylinder Head Cover (Silver). Summit 600. Summit 700.
-
23420841306 Hex. Collar Screw M8 x 65. Summit 600. Summit 700.Hex. Collar Screw M8 x 65. Summit 600. Summit 700.
-
24420941621 Hex. Collar Screw M8 x 56.5. Summit 600. Summit 700.Hex. Collar Screw M8 x 56.5. Summit 600. Summit 700.
-
25420922515 Thermostat. Summit 600. Summit 700.Thermostat. Summit 600. Summit 700.
-
26420931270 Sealing Ring. Summit 600. Summit 700.Sealing Ring. Summit 600. Summit 700.
-
27420922025 Outlet Socket. Summit 600. Summit 700.Outlet Socket. Summit 600. Summit 700.
-
28420941250 Screw M6 x 20. Summit 600. Summit 700.Screw M6 x 20. Summit 600. Summit 700.
-
29420850338 Gasket. Summit 600. Summit 700.Gasket. Summit 600. Summit 700.
-
30420922062 Bent Outlet Socket. Summit 600. Summit 700.Bent Outlet Socket. Summit 600. Summit 700.
-
31420240480 Plug Screw 1/8-27 NPT. Summit 600. Summit 700.Plug Screw 1/8-27 NPT. Summit 600. Summit 700.
-
32420941451 Hex. Collar Screw M6 x 40. Summit 600. Summit 700.Hex. Collar Screw M6 x 40. Summit 600. Summit 700.
-
33420250015 Gasket Ring. Summit 600.Gasket Ring. Summit 600.
-
34420841921 Plug Screw M12 x 1.5. Summit 600.Plug Screw M12 x 1.5. Summit 600.
-
35420924519 Reed Valve Ass'y. Includes 35 - 39. Summit 600.Reed Valve Ass'y. Includes 35 - 39. Summit 600.
-
420867870 Carburetor Socket. Summit 700.Carburetor Socket. Summit 700.
-
37420924532 Reed Pedal. Summit 600.Reed Pedal. Summit 600.
-
420924680 Reed Pedal. Summit 700.Reed Pedal. Summit 700.
-
38420924539 Reed Pedal Stop. Summit 600.Reed Pedal Stop. Summit 600.
-
420924695 Reed Pedal Stop. Summit 700.Reed Pedal Stop. Summit 700.
-
39420941215 Screw M3 x 5. Summit 600.Screw M3 x 5. Summit 600.
-
420941215 Screw M3 x 5. Summit 700.Screw M3 x 5. Summit 700.
-
40420867880 Carburetor Socket. Summit 600.Carburetor Socket. Summit 600.
-
41420941925 Screw M5 x 16. Summit 600. Summit 700.Screw M5 x 16. Summit 600. Summit 700.
-
42420851440 Clamp. Summit 600. Summit 700.Clamp. Summit 600. Summit 700.
-
43420867817 Intake Resonator. Summit 600. Summit 700.Intake Resonator. Summit 600. Summit 700.
-
44420931610 Gasket. Summit 600.Gasket. Summit 600.
-
420850552 Gasket. Summit 700.Gasket. Summit 700.
-
45420979543 Exhaust Manifold. Summit 600.Exhaust Manifold. Summit 600.
-
420973591 Exhaust Manifold. Summit 700.Exhaust Manifold. Summit 700.
-
46420888582 Engine Gasket Set. Summit 600.Engine Gasket Set. Summit 600.
-
420888602 Engine Gasket Set. Summit 700.Engine Gasket Set. Summit 700.
-
47420888587 Cylinder Gasket Set. Summit 600.Cylinder Gasket Set. Summit 600.
-
420888607 Cylinder Gasket Set. Summit 700.Cylinder Gasket Set. Summit 700.
-
48205082544 Socket Head Screw M8 x 25. Summit 600.Socket Head Screw M8 x 25. Summit 600.
-
205062044 Socket Head Screw M6 x 20. Summit 700.Socket Head Screw M6 x 20. Summit 700.
-
49207182044 Hex. Screw M8 x 20. Summit 600.Hex. Screw M8 x 20. Summit 600.
-
50234181401 Lock Washer 8 mm. Summit 600.Lock Washer 8 mm. Summit 600.
-
234161471 Lock Washer 6 mm. Summit 700.Lock Washer 6 mm. Summit 700.
-
51413710300 Sealant, Loctite 17914, 80 ml. Summit 600. Summit 700.Sealant, Loctite 17914, 80 ml. Summit 600. Summit 700.
-
52293800060 Loctite 243, 10 ml. Summit 600. Summit 700.Loctite 243, 10 ml. Summit 600. Summit 700.
-
53413707000 Molykote 111. Summit 600. Summit 700.Molykote 111. Summit 600. Summit 700.
-
54512059369 Carburetor Bracket. Summit 600. Summit 700.Carburetor Bracket. Summit 600. Summit 700.
-
55420640534 Hex. Screw M10 x 120. Summit 700.Hex. Screw M10 x 120. Summit 700.
-
56293800038 Loctite 518, 50 ml. Summit 600. Summit 700.Loctite 518, 50 ml. Summit 600. Summit 700.
-
57711297433 MolykoteG-nPaste,DowCorning,88162-74,50g. Summit 600. Summit 700.MolykoteG-nPaste,DowCorning,88162-74,50g. Summit 600. Summit 700.
